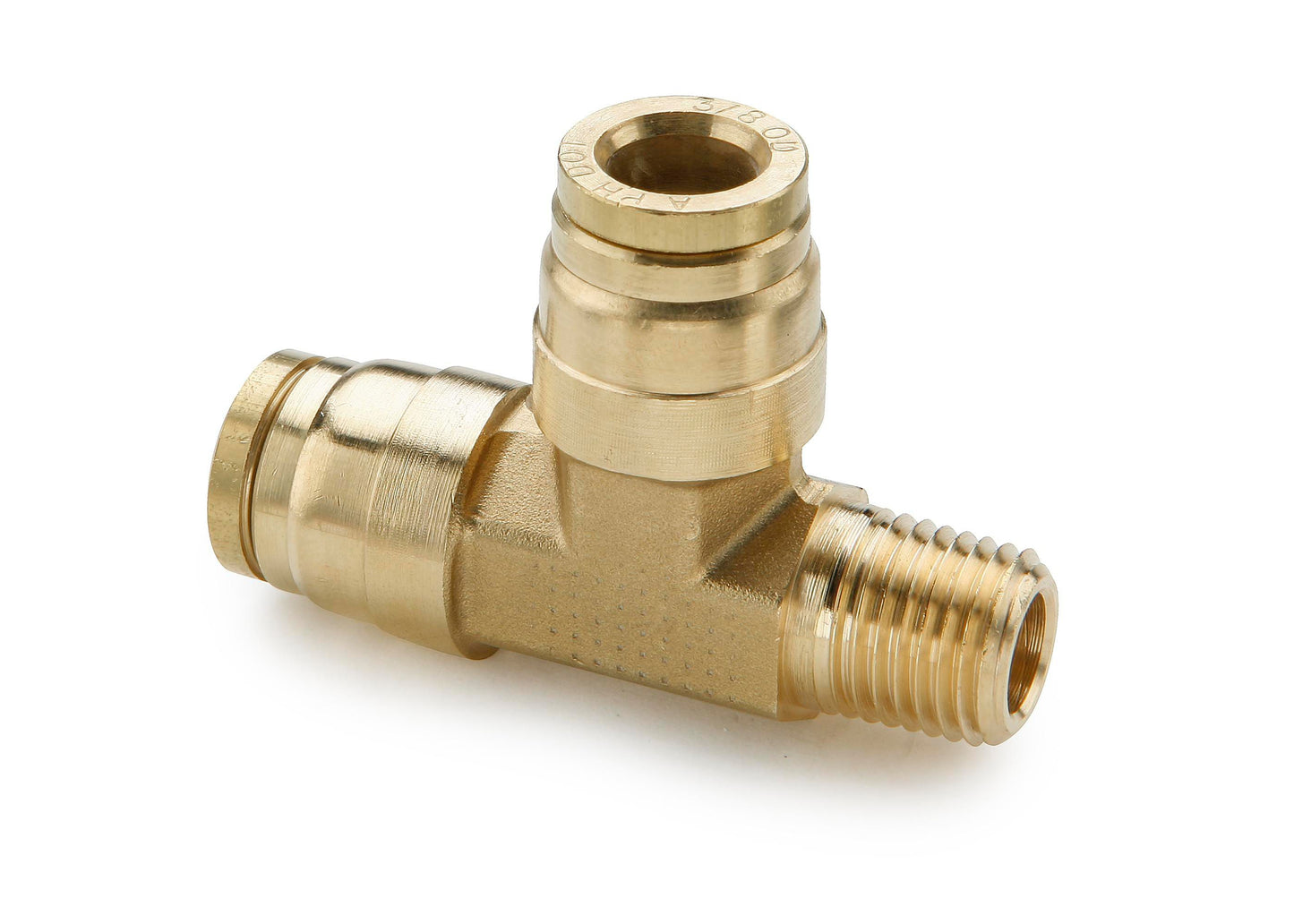

Parker DOT PTC Male Run Tee 1/8x1/4x1/4
(Pack of
10.0)
Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-9
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2.Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.
Frequently Bought Together
DOT Elbow Male 90° Brass 5/8 x 1/2-14
Couldn't load pickup availability
Parker DOT PTC Male Branch Tee 3/8x3/8x1/2
Couldn't load pickup availability
DOT Elbow Male 90° Brass 3/8 x 1/2-14
Couldn't load pickup availability
Pneumatic 50:1 Grease Pump Kit for 35lb Drums
Couldn't load pickup availability
Premium Greasing Accessory 11 Piece Kit
Couldn't load pickup availability
Quick Connect Grease Coupler, 1/8" NPT
Couldn't load pickup availability
Vacuum Hose Connector 1/8 x 1/8"
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/8"
Couldn't load pickup availability
Hose Clamp 301 SS 1-13/16 to 2-3/4"
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Miniature Clamp SS 1/8 to 7/16"
Couldn't load pickup availability
Rear Bumper Cover Retainer Plastic 18mm
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
Product Description
Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-9
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2.Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.
Technical Specifications
| Item#: | 27208P |
|---|---|
| Class | Air Brake |
| Fitting Type | Air Brake Fittings - Push-to-Connect |
| Style | DOT |
| Material | Brass |
| Configuration | Male Run Tee |
| Connection Type A x B x C | Pipe x Tube x Tube |
| Fitting Dimension A | 1/8 " |
| Fitting Dimension B | 1/4 " |
| Fitting Dimension C | 1/4 " |
| UNSPSC #: | 25171700 |
| TAA Compliant: | Yes |
| Weight: | 0.84 lb |
Product Restrictions
