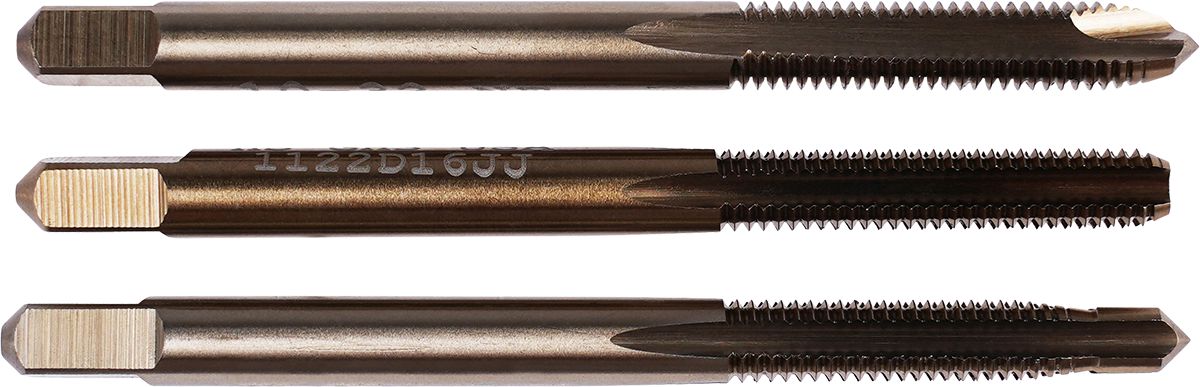

Pilotdrive Cryotap #10-32 Tri-Pak, Pilotdrive, Plug, Bottoming Hand Taps
(Pack of
1)
SKU:DY80691003 Item#: DY80691003
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed
• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Treatment: Cryophase™ thermal cycle process
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Polymer Wheel Rubber Eraser 30mm
$0.00
Couldn't load pickup availability
Scotch-Brite Roloc Bristle Disc 2"
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 3" (M10)
$0.00
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap M16 x 2
$0.00
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap M5 x 0.8
$0.00
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 8-36
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap M14 x 2
$0.00
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap M4 x 0.7
$0.00
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap M12 x 1.75
$0.00
Couldn't load pickup availability
Small Index-Tend Pry Bar
$0.00
Couldn't load pickup availability
Comfort Grip Ergonomic Jumbo Awl, 4 pc Hook & Pick Set
$0.00
Couldn't load pickup availability
9" Hi-Level Heavy-Duty Power Jaw Plier-Cutter
$0.00
Couldn't load pickup availability
Product Description
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Treatment: Cryophase™ thermal cycle process
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | DY80691003 |
|---|---|
| Type | Machine Screw |
| Style | Set |
| Material | High Speed Steel |
| Diameter | #10 |
| Pitch | 32 |
| Flutes | 4 |
| Thread Length | 2-3/8 " |
| H Limits | 4 |
| Recommended Drill Size | No. 21 |
| Description | One each of Pilotdrive, Plug, and Bottoming Style Taps |
| UNSPSC #: | 23241615 |
| TAA Compliant: | No |
| Weight: | 0.06 lb |
