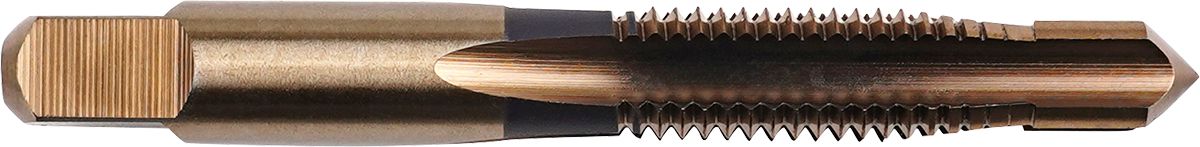

Pilotdrive Cryotap M7 x 1.0 Starter Hand Tap
(Pack of
1)
SKU:DY80636016 Item#: DY80636016
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed
• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Cryophase™: Thermal cycle cryogenic treatment
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Jobber Length Drill Bit HSS 6.5mm
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 5/32"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 2" Brown
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
Couldn't load pickup availability
HSS Spiral Point Hand Tap 12-24
Couldn't load pickup availability
HSS Spiral Point Hand Tap 1/2-20
Couldn't load pickup availability
HSS Spiral Point Hand Tap 5/16-24
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap M16 x 2
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap M5 x 0.8
Couldn't load pickup availability
Cryo-Drap #12-24 Drill & Tap Combo, 135o Split Point, W/Flats
Couldn't load pickup availability
Twist-On Abrasive Disc 2"
Couldn't load pickup availability
Spot Weld Remover Drill Bit 5/16" (M8)
Couldn't load pickup availability
Pneumatic Impact Wrench, 1/2 Drive Max Torque 730 lbs
Couldn't load pickup availability
Product Description
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Cryophase™: Thermal cycle cryogenic treatment
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | DY80636016 |
|---|---|
| Type | Metric |
| Diameter | M7 |
| Pitch | 1.0 mm |
| Flutes | 4 |
| Overall Length | 2-23/32 " |
| Recommended Drill Size | 6 mm |
| UNSPSC #: | 23241615 |
| TAA Compliant: | No |
| Weight: | 0.05 lb |
Product Restrictions
