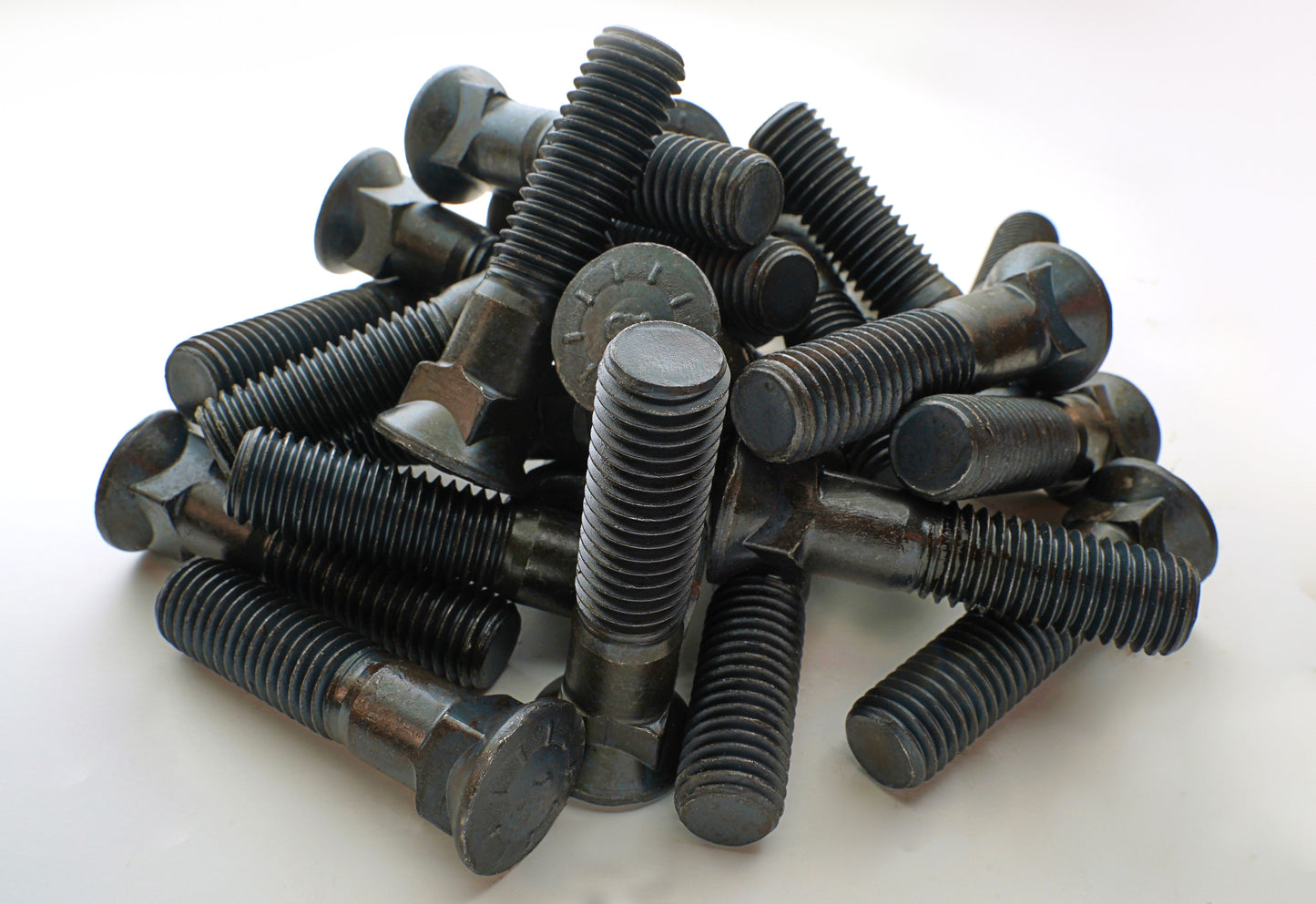

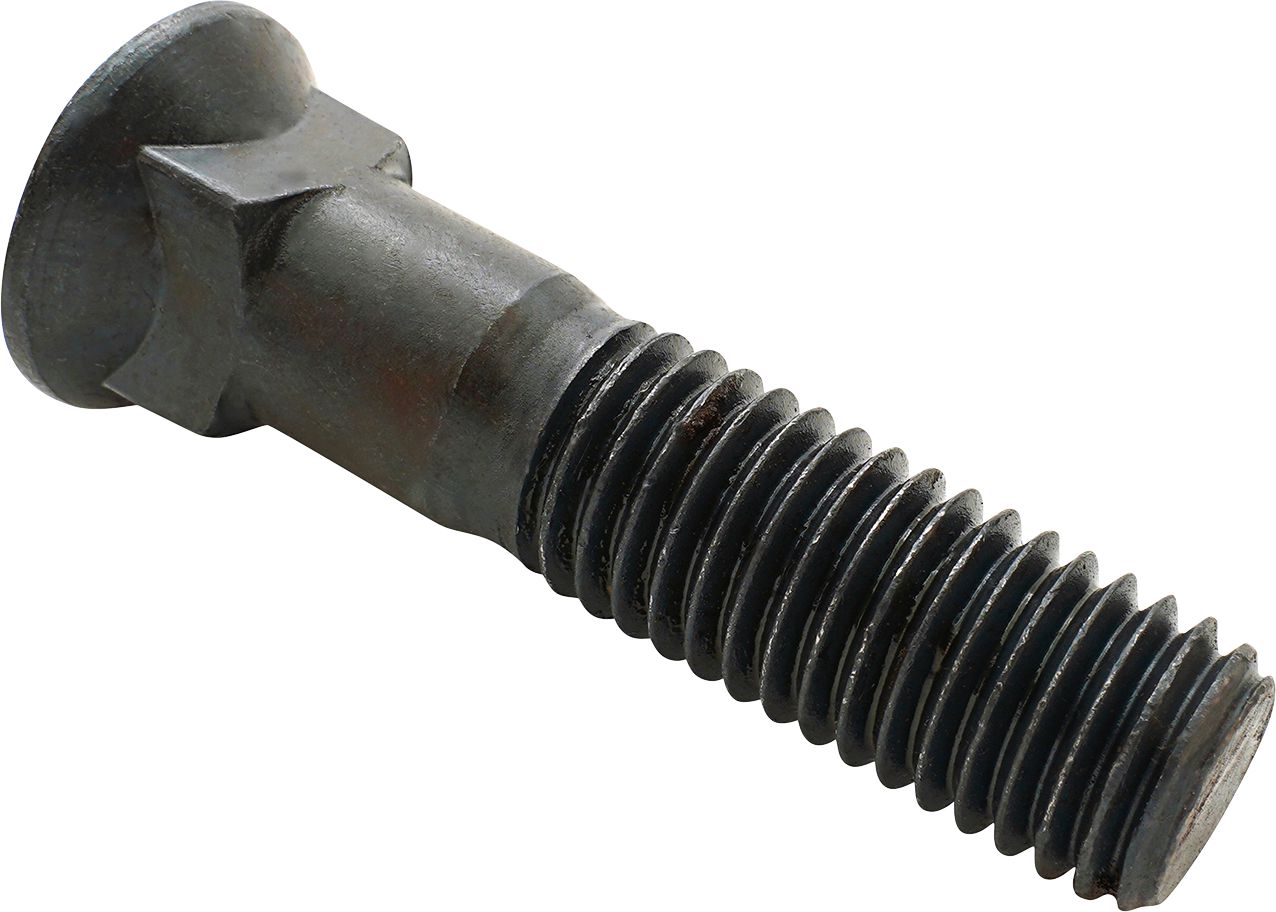

Plow Bolt, Dome Head, A9 (Grade 9), Alloy Steel, Plain Finish, Coarse Thread, 5/8-11 x 2-3/4"
(Pack of
25)
SKU:10705 Item#: 10705
• 170,000 PSI minimum tensile strength
• UNRC-2A threads in accordance with ANSI/ASME B1.1
• Temperature range: –50°F to +300°F (–46°C to +149°C)
• Black finish with light oil coating
• Also known as blade bolts and scraper bolts
• For use in fastening the cutting edges of snow plows and heavy earth-moving equipment
• Use with 2-H Heavy Hex Nuts or Tru-Torq® High-Strength Nuts and Tru-Torq® Hardened Flat Washers with A9 Bolts
Frequently Bought Together
DIN 6921 Hex Flange Bolt Grade 8.8 M10-1.5 x 40mm
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 30mm
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 45mm
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
$0.00
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M8-1.25
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Steel M8-1.25
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 40mm
$0.00
Couldn't load pickup availability
Sheet Metal Screw Phillips Truss Head #14 x 3/4"
$0.00
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1-1/4"
$0.00
Couldn't load pickup availability
Plow Bolt Grade 8 5/8-11 x 2-1/2"
$0.00
Couldn't load pickup availability
Plow Bolt High Strength A9 5/8-11 x 1-3/4"
$0.00
Couldn't load pickup availability
Plow Bolt Grade 8 1/2-13 x 1-3/4"
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
925WP S Performance Dorsal Impact-Reducing + Thermal WP Gloves
$0.00
Couldn't load pickup availability
925WP M Performance Dorsal Impact-Reducing + Thermal WP Gloves
$0.00
Couldn't load pickup availability
925WP L Performance Dorsal Impact-Reducing + Thermal WP Gloves
$0.00
Couldn't load pickup availability
Product Description
• 170,000 PSI minimum tensile strength• UNRC-2A threads in accordance with ANSI/ASME B1.1
• Temperature range: –50°F to +300°F (–46°C to +149°C)
• Black finish with light oil coating
• Also known as blade bolts and scraper bolts
• For use in fastening the cutting edges of snow plows and heavy earth-moving equipment
• Use with 2-H Heavy Hex Nuts or Tru-Torq® High-Strength Nuts and Tru-Torq® Hardened Flat Washers with A9 Bolts
Technical Specifications
| Item#: | 10705 |
|---|---|
| Type | Plow Bolt |
| Diameter | 5/8 " |
| Thread Pitch | 11 |
| Thread | Coarse |
| Length | 2-3/4 " |
| Head Style | Dome |
| Finish | Plain |
| Material | Alloy Steel |
| Grade | 9 |
| Tensile Strength | 170,000 PSI |
| Size | 2-3/4 |
| UNSPSC #: | 31161600 |
| TAA Compliant: | Yes |
| Weight: | 6.19 lb |
