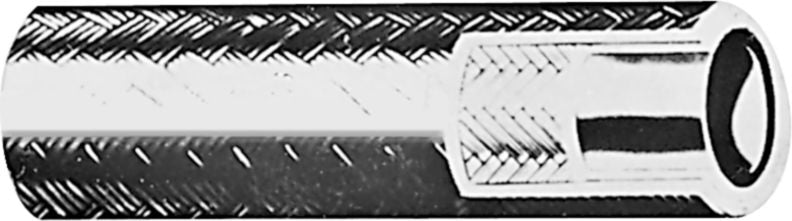

Push-on/Lock-on Fiber Braided Cover Hose 5/8"
(Pack of
50.0)
Primarily for use in air hose applications, Low-Pressure Barb-Lok Hoses are also compatible with crude, fuel and lubricating oils, water, anti-freeze, and transmission fluid.
• Temperature ranges:
– Air: 158°F (70°C)
– Water: 185°F (85°C)
– Oil: –40°F to +212°F (–40°C to +100°C)
• Reinforcement: One fiber braid
• Cover: Black
• Inner tube: Synthetic rubber
Use with Barb-Lok Fittings (Do not use hose clamps)
Frequently Bought Together
20022641
Couldn't load pickup availability
H100 General Purpose Fiber Cover Hose 1/4" Black
Couldn't load pickup availability
Push-on/Lock-on Synthetic Rubber Cover Hose 3/8"
Couldn't load pickup availability
Rubber Air Hose Assembly 3/8" x 25'
Couldn't load pickup availability
OilShield Rubber Air Hose Reel Heavy Duty Single Arm Assembly 3/8" x 50'
Couldn't load pickup availability
OilShield Rubber Air Hose Reel Heavy Duty Single Arm Assembly 1/2" x 50'
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/16"
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Product Description
Primarily for use in air hose applications, Low-Pressure Barb-Lok Hoses are also compatible with crude, fuel and lubricating oils, water, anti-freeze, and transmission fluid.• Temperature ranges:
– Air: 158°F (70°C)
– Water: 185°F (85°C)
– Oil: –40°F to +212°F (–40°C to +100°C)
• Reinforcement: One fiber braid
• Cover: Black
• Inner tube: Synthetic rubber
Use with Barb-Lok Fittings (Do not use hose clamps)
Technical Specifications
| Item#: | 12100 10 |
|---|---|
| Type | Push-on/Lock-on Hose |
| I.D. | 5/8 " |
| Dash Size | -10 |
| Working Pressure | 300 PSI |
| Burst Pressure | 1,200 PSI |
| Minimum Bend Radius | 6 " |
| Inner Tube Material | Synthetic Rubber |
| Hose Reinforcement | 1 Fiber Braid |
| Hose Cover Material | Fiber Braid |
| Fitting Series | Barb-Lok |
| Temperature | Oil: -40F to +212F, Air: +158F, Water: +185F |
| Color | Black |
| Weight (Lbs./Ft.) | 0.19 |
| Vacuum Rating (Inches of Hg) | 28 |
| UNSPSC #: | 40142009 |
| TAA Compliant: | Yes |
| Weight: | 9.5 lb |
