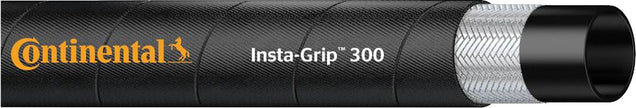

Barb-Lok Hose, Nitrile Inner Tube, Synthetic Rubber Cover, 1 Fiber Braid Reinforcement, Black, 300PSI, 5/8" ID
(Pack of
250)
SKU:1502277 Item#: 1502277
Primarily for use in air hose applications, Low-Pressure Barb-Lok Hoses are also compatible with crude, fuel and lubricating oils, water, anti-freeze, and transmission fluid.
• Temperature ranges:
– Air and water: –40°F to +212°F (–40°C to +100°C)
– Oil: –40°F to +260°F (–40°C to +127°C)
• Reinforcement: One fiber braid
• Cover: Black
• Inner tube: Synthetic rubber
Use with Barb-Lok Fittings (Do not use hose clamps)
New item numbers have been added for industry standard 250 foot reels and a running change has been made for the 50 foot length item numbers. Both lengths feature a Lawson Products layline.
Frequently Bought Together
Synthetic Rubber Bar-Lok Cover Hose 3/4" Black
$0.00
Couldn't load pickup availability
H10005-250R
$0.00
Couldn't load pickup availability
H100 General Purpose Fiber Cover Hose 3/4" Black
$0.00
Couldn't load pickup availability
OilShield Rubber Air Hose Bulk 1/2" x 300'
$0.00
Couldn't load pickup availability
Rubber Air Hose Assembly 3/8" x 25' & Accessory Kit
$0.00
Couldn't load pickup availability
Rubber Air Hose Assembly 3/8" x 100'
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 35' air hose
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
$0.00
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Product Description
Primarily for use in air hose applications, Low-Pressure Barb-Lok Hoses are also compatible with crude, fuel and lubricating oils, water, anti-freeze, and transmission fluid.• Temperature ranges:
– Air and water: –40°F to +212°F (–40°C to +100°C)
– Oil: –40°F to +260°F (–40°C to +127°C)
• Reinforcement: One fiber braid
• Cover: Black
• Inner tube: Synthetic rubber
Use with Barb-Lok Fittings (Do not use hose clamps)
New item numbers have been added for industry standard 250 foot reels and a running change has been made for the 50 foot length item numbers. Both lengths feature a Lawson Products layline.
Technical Specifications
| Item#: | 1502277 |
|---|---|
| Manufacturer Model #: | 1H123-10BK-RL |
| I.D. | 5/8 " |
| Dash Size | -10 |
| Working Pressure | 300 PSI |
| Burst Pressure | 1,200 PSI |
| Minimum Bend Radius | 6 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 1 Fiber Braid |
| Hose Cover Material | Neoprene |
| Fitting Series | Barb-Lok |
| Temperature | Oil: -40F to +260F, Air/Water:-40°F to +212 °F |
| Color | Black |
| Size | 5/8 (-10) |
| Weight (Lbs. / Ft.) | 0.23 |
| Vacuum Rating (Inches of Hg) | 28 |
| UNSPSC #: | 40142009 |
| TAA Compliant: | No |
| Weight: | 61.0 lb |
