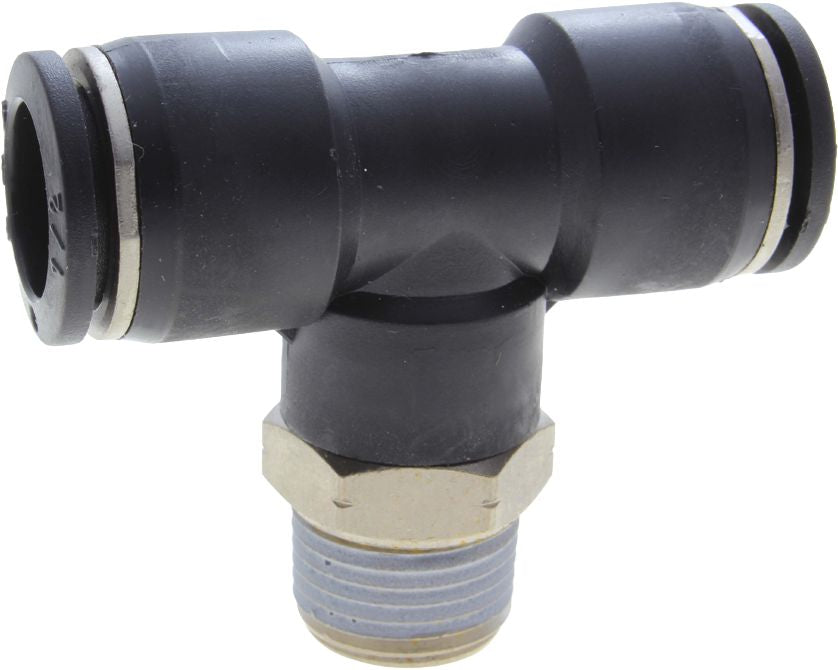

Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 3/16 x 3/16 x 1/8", Tube x Tube x Male NPT, 150 PSI Working Pressure
(Pack of
3)
SKU:87627 Item#: 87627
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Frequently Bought Together
Push-to-Connect Bulkhead Union, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Bulkhead Union, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32"
$0.00
Couldn't load pickup availability
Push-to-Connect Union Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Y Connector Nylon 1/4 x 1/8 x 1/4"
$0.00
Couldn't load pickup availability
Merchant Coupling 316 Stainless Steel 1/2 x 1/2"
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow Nylon 3/8 x 3/8" NPT
$0.00
Couldn't load pickup availability
Pipe Street Tee Brass 1/2-14 x 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 3/8"
$0.00
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Tee Nylon 1/8 x 1/8 x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Union Connector Polymer 3/8 x 3/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Union Elbow Nylon 3/16 x 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 15mm
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 87627 |
|---|---|
| Configuration | Male Branch Tee |
| Tube Size | 3/16 " |
| Thread Size | 1/8 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass/PBT Resin |
| Wrench Size | 11 mm |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.17 lb |
