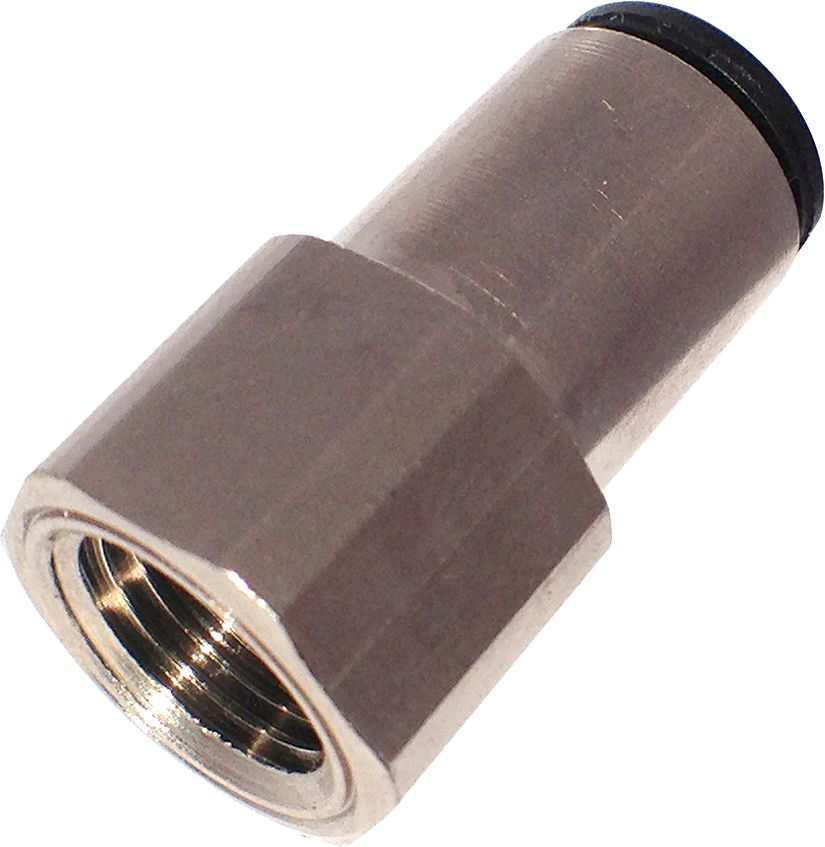

Push-to-Connect Straight Connector, Nickel-Plated Brass, 1/8 x 1/8", Tube x Female NPT, 290 PSI
(Pack of 3)

SKU:86799P Item#: 86799P

Parker Fluid Connectors Group

Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass-reinforced nylon 6.6
– Collar: Nylon
– Gripping ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Check Availability

Quantity

Frequently Bought Together

Pipe Branch Tee Brass 1/8-27 x 1/8-27 x 1/8-27

Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27

Pipe Adapter Brass 1/4-18 x 3/8-18

Quick Disconnect Plug Steel 1/4" x 1/4-18

Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"

Item#: P28920M01

Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"

Item#: P63942M01

Push-to-Connect Extension Elbow Nylon 6 mm x 1/4"

Push-to-Connect Tee Nylon 3/16 x 3/16 x 3/16"

Push-to-Connect Branch Tee Nylon 1/2 x 1/2 x 3/8"

Bumper Push-Type Retainer Nylon 18mm

Bumper Radiator and Grille Drive Rivet 7mm Hole

Push-Type Retainer Nylon 16 x 19mm

Product Description

Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass-reinforced nylon 6.6
– Collar: Nylon
– Gripping ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#:	86799P
Manufacturer Model #:	3014 53 11
Style	Straight
Configuration	Straight Female Connector
Tube Size	1/8 "
Thread Size	1/8 "
Thread Style	NPT
Material	Nickel-Plated Brass
Wrench Size	13 mm
Thread Length	.37 "
Working Pressure	290 PSI
Temperature Range	-4 to +175 °F
UNSPSC #:	40183100
TAA Compliant:	Yes
Weight:	0.13 lb
