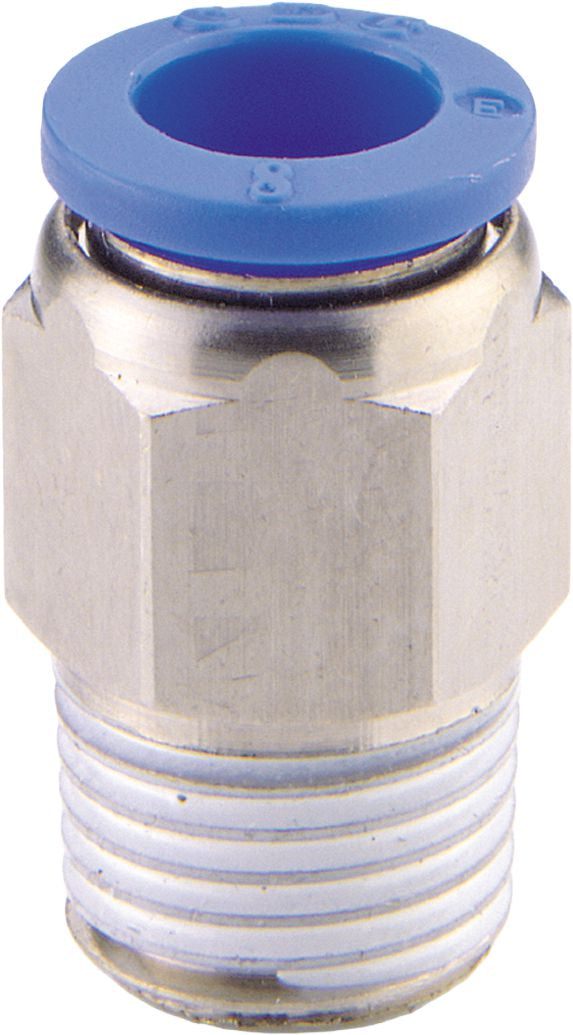

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/8 x 1/4", Tube x Male NPT, 150 PSI Working Pressure
(Pack of
5)
SKU:86748 Item#: 86748
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
Working Temperature: 32°F 140°F
Working Pressure: 150 PSI
Suitable Fluids: Compressed air/inert gases
Vacuum Compatibility: 29.5 HG
Construction:
Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
Gripping Ring: 301 stainless steel
Release Ring: Acetal plastic
O-Ring: NBR (Buna-N)
Plastic button, metal body
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Frequently Bought Together
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16 x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 3/16 x 3/16 x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4"
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 3/8-18 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Tee Brass 3/8-18 x 3/8-18 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Monsoon Hose Nozzle 3/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Union Tee, Nickel Plated Brass, 1/4 x 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Bulkhead Union, PBT Resin, 5/16 x 5/16"
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow, PBT Resin, 5/32 x 1/8"
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing. Working Temperature: 32°F 140°F
Working Pressure: 150 PSI
Suitable Fluids: Compressed air/inert gases
Vacuum Compatibility: 29.5 HG
Construction:
Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
Gripping Ring: 301 stainless steel
Release Ring: Acetal plastic
O-Ring: NBR (Buna-N)
Plastic button, metal body
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 86748 |
|---|---|
| Configuration | Male Connector |
| Tube Size | 1/8 " |
| Thread Size | 1/4 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass/PBT Resin |
| Wrench Size | 14 mm |
| Internal Hex Size | .07 " |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.18 lb |
