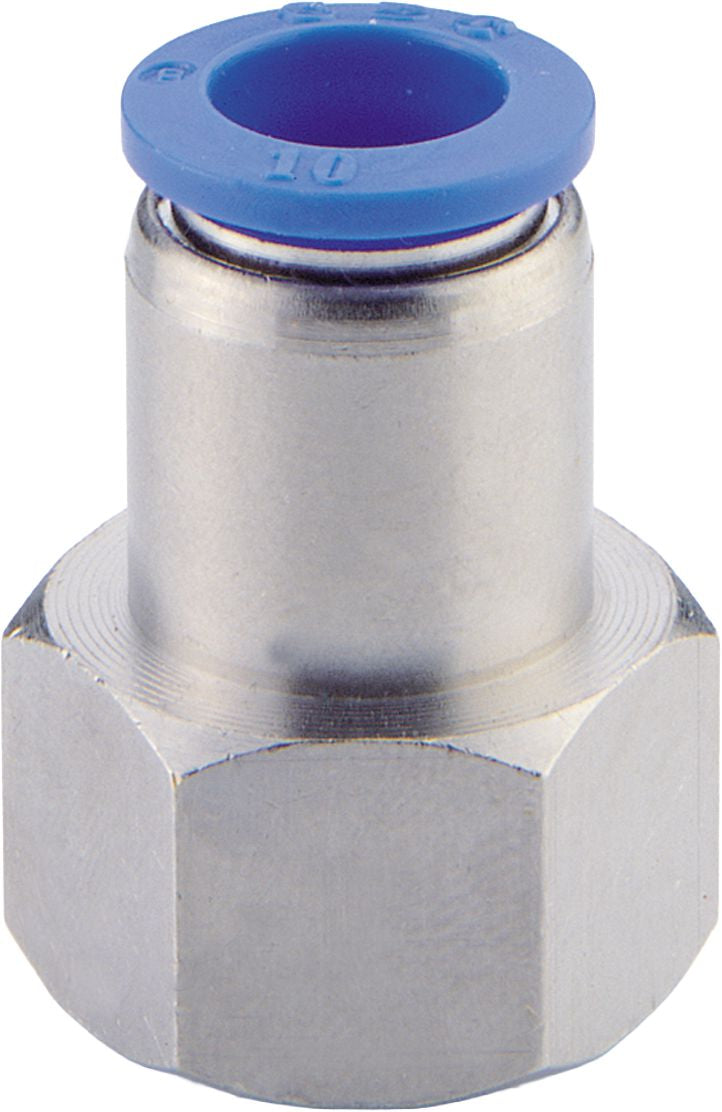

Push-to-Connect Straight Connector, Nickel-Plated Brass/PBT Resin, 5/16 (8mm) x 1/4", Tube x Female BSPP, 150 PSI Working Pressure
(Pack of
2)
SKU:98199 Item#: 98199
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Frequently Bought Together
Push-to-Connect Union Connector, 1/4x5/16" Tube
$0.00
Couldn't load pickup availability
Push-to-Connect Union Connector, 5/16" x 5/16"(8mm)
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow, Polyoxymethlene, 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 3/8-18 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Tee Brass 3/8-18 x 3/8-18 x 3/8-18
$0.00
Couldn't load pickup availability
Hex Head Plug Brass 3/8-18 Male NPT
$0.00
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/16"
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
$0.00
Couldn't load pickup availability
Push-to-Connect Connector Brass 12 mm x 1/4" BSPT
$0.00
Couldn't load pickup availability
Push-To-Connect Fitting, LF3000, Unequal Union, 3/8 x 1/4" Tube
$0.00
Couldn't load pickup availability
Push-to-Connect Reducer Nylon 6 x 10 mm
$0.00
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 98199 |
|---|---|
| Configuration | Straight Female Connector |
| Tube Size | 8mm (5/16") |
| Thread Size | G1/4 " |
| Thread Style | BSPP |
| Material | Nickel-Plated Brass/PBT Resin |
| Wrench Size | 16 mm |
| Thread Length | 13.5 mm |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.1 lb |
