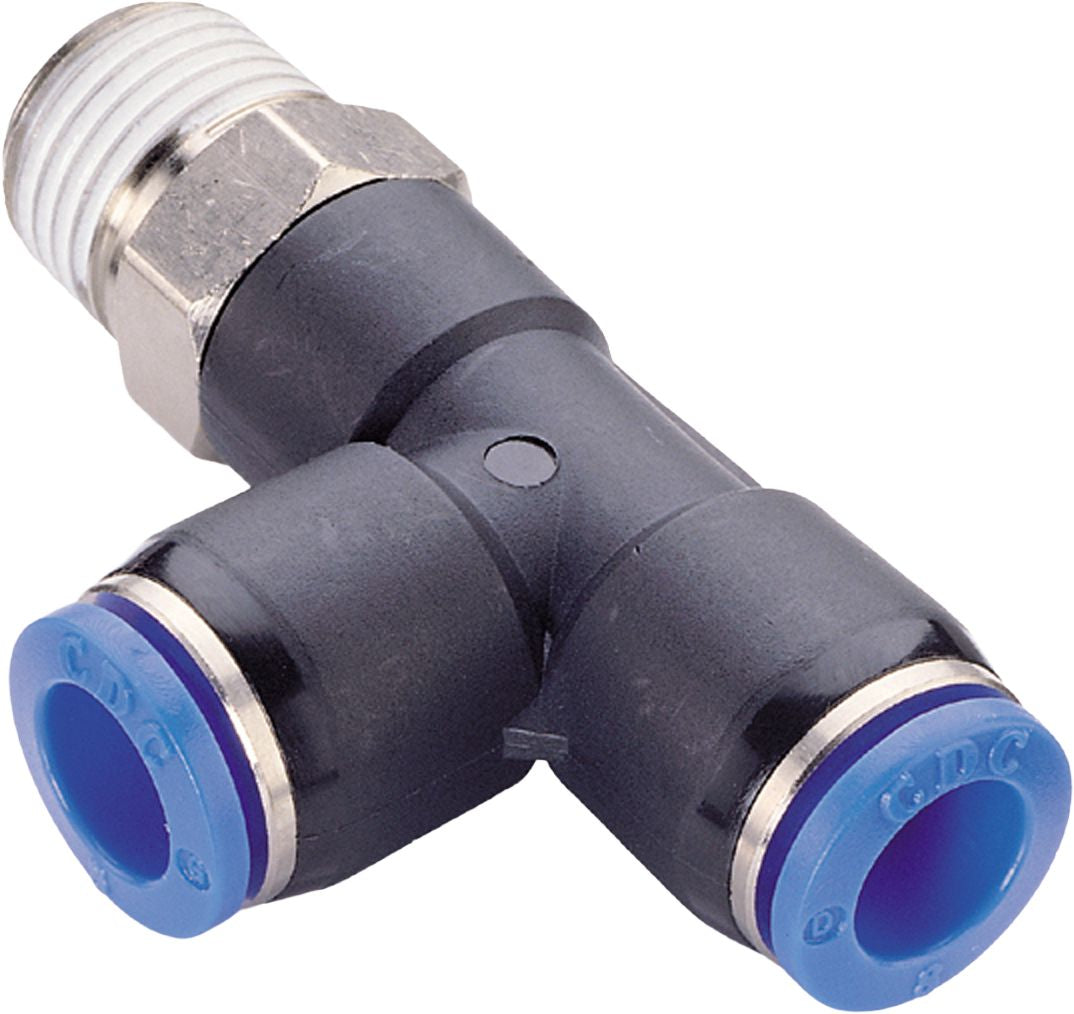

Push-to-Connect Run Tee, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16 (8mm) x 1/8", Tube x Tube x Male NPT, 150 PSI Working Pressure
(Pack of
2)
SKU:87631 Item#: 87631
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Frequently Bought Together
Nylon Metric Tubing 8mm OD x 25m Black
$0.00
Couldn't load pickup availability
Nylon Metric Tubing 8mm OD x 25m Natural
$0.00
Couldn't load pickup availability
Nylon Metric Tubing 6mm OD x 25m Black
$0.00
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Extension Elbow Nylon 5/32" (4 mm) x M5x0.8
$0.00
Couldn't load pickup availability
Push-to-Connect Extension Elbow Nylon 3/8 x 3/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Y Connector Nylon 1/4 x 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Drive Rivet Nylon M8
$0.00
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 87631 |
|---|---|
| Configuration | Male Run Tee |
| Tube Size | 5/16" (8mm) |
| Thread Size | 1/8 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass/PBT Resin |
| Wrench Size | 11 mm |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
