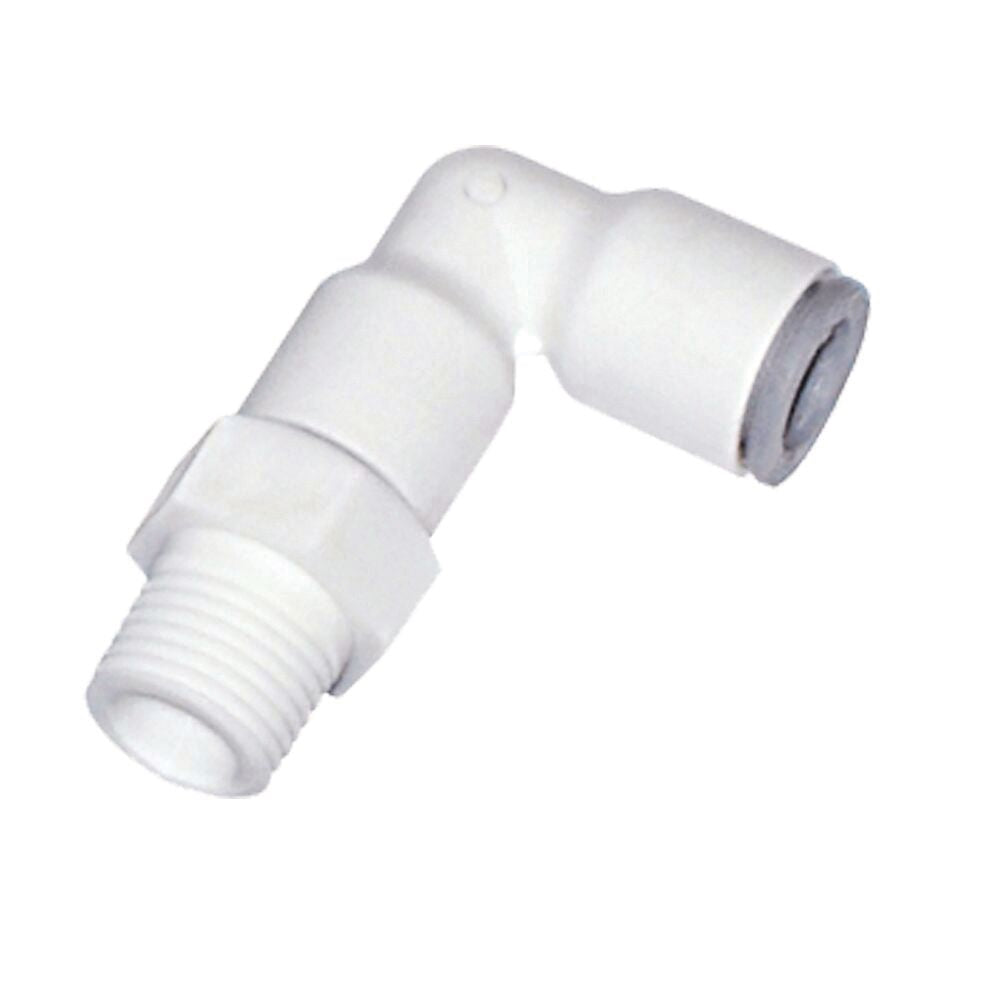

LIQUIfit Push-to-Connect Swivel Elbow, Polymer, 3/8 x 3/8", Tube x NPTF, 230PSI
(Pack of 10)

SKU:1259944 Item#: 1259944

Parker Fluid Connectors Group

LIQUIfit is a revolutionary push-to-connect fitting for water treatment applications. The stainless steel gripping ring coupled with the EPDM seal offer optimum performance suitable for contact with water, beverages and food. Its full flow profile delivers maximum capability while its compact push-to-connect design facilitates the tightest tube bends in the industry with no pumping effect.
• High chemical resistance (chlorine, cleaning agents, UV)
• All items in the LIQUIfit range are SILICONE FREE
• Approved for contact with food: FDA, NSF 51, NSF 61, WRAS inch
• Working temperature: 35°F to +200°F
• Working pressure: Up to 230 PSI
• Sutable fluids: water, beverages, food, CO 2
• Construction:
– Body: engineered polymer
– Gripping Ring: stainless steel
– "D" seal: EPDM
• Suitable for: water, beverages, food and CO 2
• Beverage market
– Fountain soda
– Beer and wine
– Coffee and tea machines
•Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
– Inert gas supply
– High purity water

Quantity

Frequently Bought Together

Pipe Street Tee Brass 1/2-14 x 1/2-14 x 1/2-14

Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27

Pipe Street Elbow Brass 90° 1/2-14 x 1/2-14

Miniature Clamp SS 1/8 to 7/16"

Item#: P62057M01

Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"

Item#: P64107M01

Push-Button Air Coupler Steel 1/4" x 1/4-18

Push-to-Connect Elbow Nylon 3/8 x 3/8" NPT

Push-to-Connect Extension Elbow Nylon 5/32" (4 mm) x M5x0.8

Push-to-Connect Extension Elbow Nylon 3/8 x 3/8"

Engine Under Cover Drive Rivet Plastic 7mm Hole

Cowl Bumper Fender Liner/Engine Under Cover Rivet

Front Fender Push-Type Retainer Nylon 20mm

Product Description

LIQUIfit is a revolutionary push-to-connect fitting for water treatment applications. The stainless steel gripping ring coupled with the EPDM seal offer optimum performance suitable for contact with water, beverages and food. Its full flow profile delivers maximum capability while its compact push-to-connect design facilitates the tightest tube bends in the industry with no pumping effect.
• High chemical resistance (chlorine, cleaning agents, UV)
• All items in the LIQUIfit range are SILICONE FREE
• Approved for contact with food: FDA, NSF 51, NSF 61, WRAS inch
• Working temperature: 35°F to +200°F
• Working pressure: Up to 230 PSI
• Sutable fluids: water, beverages, food, CO 2
• Construction:
– Body: engineered polymer
– Gripping Ring: stainless steel
– "D" seal: EPDM
• Suitable for: water, beverages, food and CO 2
• Beverage market
– Fountain soda
– Beer and wine
– Coffee and tea machines
•Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
– Inert gas supply
– High purity water

Technical Specifications

Item#:	1259944
Manufacturer Model #:	6509 60 18WP2
Style	LIQUIfit
Configuration	Swivel Elbow
Tube Size	3/8 "
Thread Size	3/8 "
Thread Style	NPTF
Material	Engineered Polymer
Wrench Size	3/4 "
Working Pressure	230 PSI
Temperature Range	+35 to +200 °F
UNSPSC #:	40183100
TAA Compliant:	No
