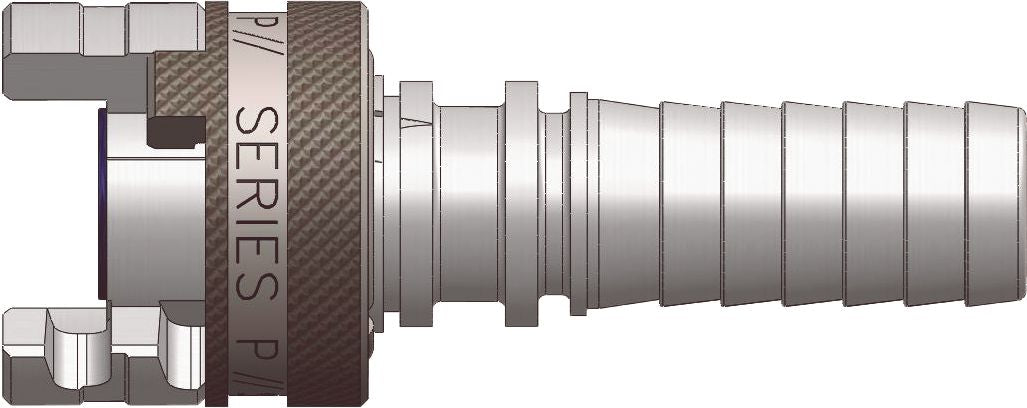

Industrial Quick Disconnect Coupler, Steel, Thor, 300PSI, Barb Thread Style, 1/2" Body Size, 3/8" Hose ID
(Pack of
1)
SKU:20937 Item#: 20937
Interlocking finger connection with single or dual locking sleeves for maximum security. “Push-Twist and Click” connection provides a positive lock when connected. Used for air, water and nitrogen. Used by refineries. OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection – see Accessories.
• Use of band-style clamps, crimped ferrules or interlocking clamps is suggested (see specific recommendations on individual hose pages)
• Operating Pressure: 300 PSI
• Coupled Burst Pressure: 4,800 PSI
• Flow: 250 CFM
• Locking Mechanism: Latch fingers
• Dixon P-Series
Frequently Bought Together
Quick Connect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Coupler, Industrial, 1/4'' Body, 1/4-18 Female NPTF, 303 SS
Couldn't load pickup availability
Bowes Quick Disconnect Nipple Steel 1/2 x 3/8"
Couldn't load pickup availability
Heavy-Duty Quick Disconnect Plug Steel 1/4 x 1/4"
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 3/8-18
Couldn't load pickup availability
Coupler, Industrial, 1/4'' Body, 3/8-18 Female NPTF, Brass
Couldn't load pickup availability
Rubber Air Hose Assembly 3/8" x 25'
Couldn't load pickup availability
Rubber Air Hose Assembly 1/4" x 25'
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 3/4" x 6'
Couldn't load pickup availability
Barb-Lok Hose End 1/2" (-8) x 7/8-14 (-10)
Couldn't load pickup availability
Barb-Lok Hose End 1/2" (-8) x 3/4-14 (-12)
Couldn't load pickup availability
Barb-Lok Hose End 1/4" (-4) x 9/16-18 (-6)
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Product Description
Interlocking finger connection with single or dual locking sleeves for maximum security. “Push-Twist and Click” connection provides a positive lock when connected. Used for air, water and nitrogen. Used by refineries. OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection – see Accessories.• Use of band-style clamps, crimped ferrules or interlocking clamps is suggested (see specific recommendations on individual hose pages)
• Operating Pressure: 300 PSI
• Coupled Burst Pressure: 4,800 PSI
• Flow: 250 CFM
• Locking Mechanism: Latch fingers
• Dixon P-Series
Technical Specifications
| Item#: | 20937 |
|---|---|
| Description | Industrial Quick Disconnect |
| Type | Coupler |
| Style | Thor |
| Body Size | 1/2 " |
| Thread Style | Barb |
| Working Pressure | 300 PSI |
| Material | Steel |
| Hose I.D. | 3/8 " |
| Length | 3.53 " |
| Seal Material | Nitrile (Buna-N) |
| Dixon Number | 4PS3 |
| Hose Barb Size | 3/8 " |
| Locking Mechanism | Latch Fingers |
| Flow | 255 ft³/min |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.5 lb |
