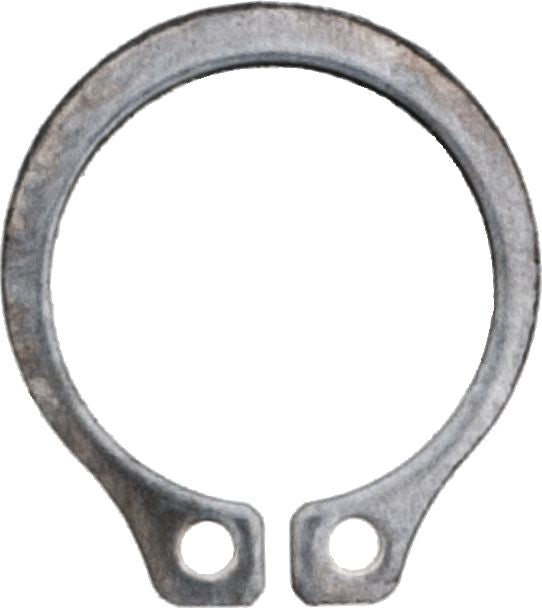

Retaining Ring, External, 18-8 Stainless Steel, Plain Finish, 7/16" Shaft Diameter
(Pack of
5)
SKU:59516 Item#: 59516
• Replaces pins, washers, threaded sections, collars and machine shoulders
• Manufactured from SAE 1065-1090 high carbon spring steel
• Heat-treated and oil-dipped
• Conforms to NAS 669 and 670 and MS 16624 through MS 1116634 specifications
• Maximum operating temperature: 480°F (249°C)
Retaining RingsRetaining rings are precision-engineered components placed on shafts or in bores, which provide a shoulder that accurately positions, locates or retains other parts of an assembly. They save time and labor, and decrease maintenance costs. Our rigid quality-control program provides you with the finest rings on the market today.
Couldn't load pickup availability
Catalog page#: 11-99
Frequently Bought Together
Retaining Ring External 18-8 Stainless Steel 6mm
Couldn't load pickup availability
Retaining Ring External Steel 35mm
Couldn't load pickup availability
Retaining Ring External Steel 3/16"
Couldn't load pickup availability
Acorn Nut A2 Stainless Steel M6-1
Couldn't load pickup availability
Hex Nut Grade 8 Steel M8-1.25
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Retaining Ring External E-Type 18-8 SS 1"
Couldn't load pickup availability
Retaining Ring Pliers Fixed Tip 3/4 to 2-3/8"
Couldn't load pickup availability
Retaining Ring External E-Type 18-8 SS 3/4"
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
Couldn't load pickup availability
Product Description
• Replaces pins, washers, threaded sections, collars and machine shoulders• Manufactured from SAE 1065-1090 high carbon spring steel
• Heat-treated and oil-dipped
• Conforms to NAS 669 and 670 and MS 16624 through MS 1116634 specifications
• Maximum operating temperature: 480°F (249°C)

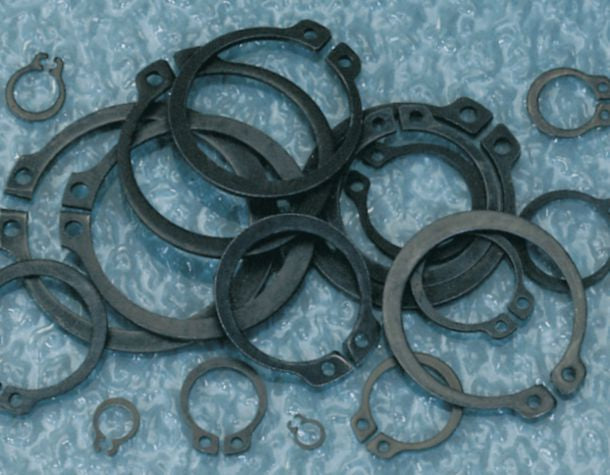

Retaining RingsRetaining rings are precision-engineered components placed on shafts or in bores, which provide a shoulder that accurately positions, locates or retains other parts of an assembly. They save time and labor, and decrease maintenance costs. Our rigid quality-control program provides you with the finest rings on the market today.
Technical Specifications
| Item#: | 59516 |
|---|---|
| Shaft Diameter | 7/16 " |
| Ring Clearance | .66 " |
| Ring Thickness | .025 " |
| Groove Diameter | .412 " |
| Groove Width | .029 " |
| Finish | Plain |
| Type | External Type Retaining Ring |
| Material | Stainless Steel |
| Size | 7/16 " |
| UNSPSC #: | 31163202 |
| TAA Compliant: | Yes |
| Weight: | 0.005 lb |
