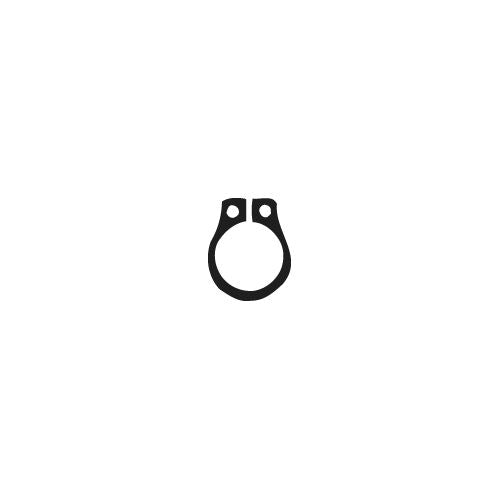

Retaining Ring External Steel 1/4"
(Pack of
50)
• Replaces pins, washers, threaded sections, collars and machine shoulders
• Manufactured from SAE 1065-1090 high carbon spring steel
• Heat-treated and oil-dipped
• Conforms to NAS 669 and 670 and MS 16624 through MS 1116634 specifications
• Maximum operating temperature: 480°F (249°C)
Retaining RingsRetaining rings are precision-engineered components placed on shafts or in bores, which provide a shoulder that accurately positions, locates or retains other parts of an assembly. They save time and labor, and decrease maintenance costs. Our rigid quality-control program provides you with the finest rings on the market today.
Frequently Bought Together
Retaining Ring External 18-8 Stainless Steel 10mm
Couldn't load pickup availability
Retaining Ring External Steel 3/8"
Couldn't load pickup availability
Retaining Ring External Steel 7/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hammerlock Cotter Pin Kit 140Pcs
Couldn't load pickup availability
Hammerlock Cotter Pin Kit 75Pcs
Couldn't load pickup availability
Retaining Ring External Steel 30mm
Couldn't load pickup availability
Retaining Ring External E-Type Steel 10.5mm
Couldn't load pickup availability
Retaining Ring External Steel 8mm
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 17mm Washer Steel
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
Couldn't load pickup availability
Product Description
• Replaces pins, washers, threaded sections, collars and machine shoulders• Manufactured from SAE 1065-1090 high carbon spring steel
• Heat-treated and oil-dipped
• Conforms to NAS 669 and 670 and MS 16624 through MS 1116634 specifications
• Maximum operating temperature: 480°F (249°C)
Retaining RingsRetaining rings are precision-engineered components placed on shafts or in bores, which provide a shoulder that accurately positions, locates or retains other parts of an assembly. They save time and labor, and decrease maintenance costs. Our rigid quality-control program provides you with the finest rings on the market today.
Technical Specifications
| Item#: | 11353 |
|---|---|
| Shaft Diameter | 1/4 " |
| Ring Clearance | .45 " |
| Ring Thickness | .025 " |
| Groove Diameter | .230 " |
| Groove Width | .029 " |
| Finish | Black Phosphate |
| Type | External Type Retaining Ring |
| Material | Carbon Steel |
| Size | 1/4 " |
| UNSPSC #: | 31163202 |
| TAA Compliant: | Yes |
| Weight: | 0.01 lb |
