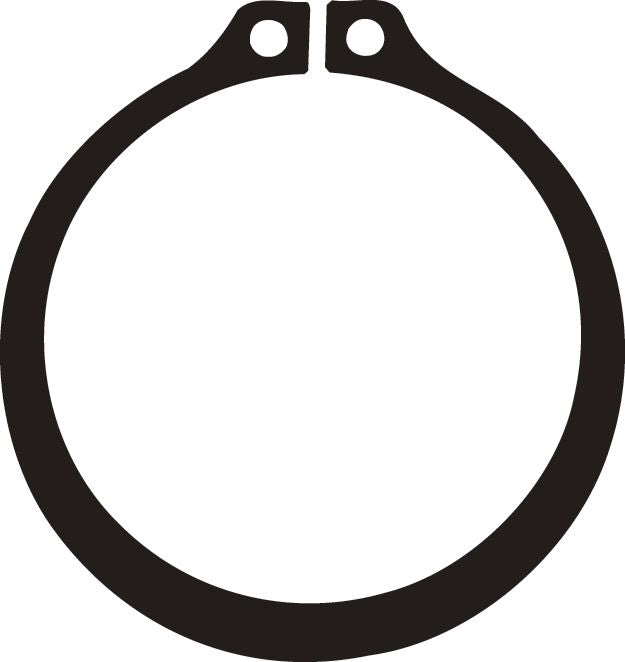

Retaining Ring External Steel 2"
(Pack of
10.0)
• Replaces pins, washers, threaded sections, collars and machine shoulders
• Manufactured from SAE 1065-1090 high carbon spring steel
• Heat-treated and oil-dipped
• Conforms to NAS 669 and 670 and MS 16624 through MS 1116634 specifications
• Maximum operating temperature: 480°F (249°C)
Retaining RingsRetaining rings are precision-engineered components placed on shafts or in bores, which provide a shoulder that accurately positions, locates or retains other parts of an assembly. They save time and labor, and decrease maintenance costs. Our rigid quality-control program provides you with the finest rings on the market today.
Couldn't load pickup availability
Frequently Bought Together
Retaining Ring External Steel 12mm
Couldn't load pickup availability
Retaining Ring External 18-8 Stainless Steel 20mm
Couldn't load pickup availability
Retaining Ring External 18-8 Stainless Steel 12mm
Couldn't load pickup availability
Hammerlock Cotter Pin Kit 75Pcs
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 16mm
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Retaining Ring External Steel 2-5/16"
Couldn't load pickup availability
Retaining Ring Pliers Fixed Tip 1/8 to 3/8"
Couldn't load pickup availability
Retaining Ring External E-Type 18-8 SS 8mm
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Product Description
• Replaces pins, washers, threaded sections, collars and machine shoulders• Manufactured from SAE 1065-1090 high carbon spring steel
• Heat-treated and oil-dipped
• Conforms to NAS 669 and 670 and MS 16624 through MS 1116634 specifications
• Maximum operating temperature: 480°F (249°C)
Retaining RingsRetaining rings are precision-engineered components placed on shafts or in bores, which provide a shoulder that accurately positions, locates or retains other parts of an assembly. They save time and labor, and decrease maintenance costs. Our rigid quality-control program provides you with the finest rings on the market today.
Technical Specifications
| Item#: | 11242 |
|---|---|
| Shaft Diameter | 2 " |
| Ring Clearance | 2.55 " |
| Ring Thickness | .062 " |
| Groove Diameter | 1.886 " |
| Groove Width | .068 " |
| Finish | Black Phosphate |
| Type | External Type Retaining Ring |
| Material | Carbon Steel |
| Size | 2 " |
| UNSPSC #: | 31163202 |
| TAA Compliant: | Yes |
| Weight: | 0.15 lb |
Product Restrictions
