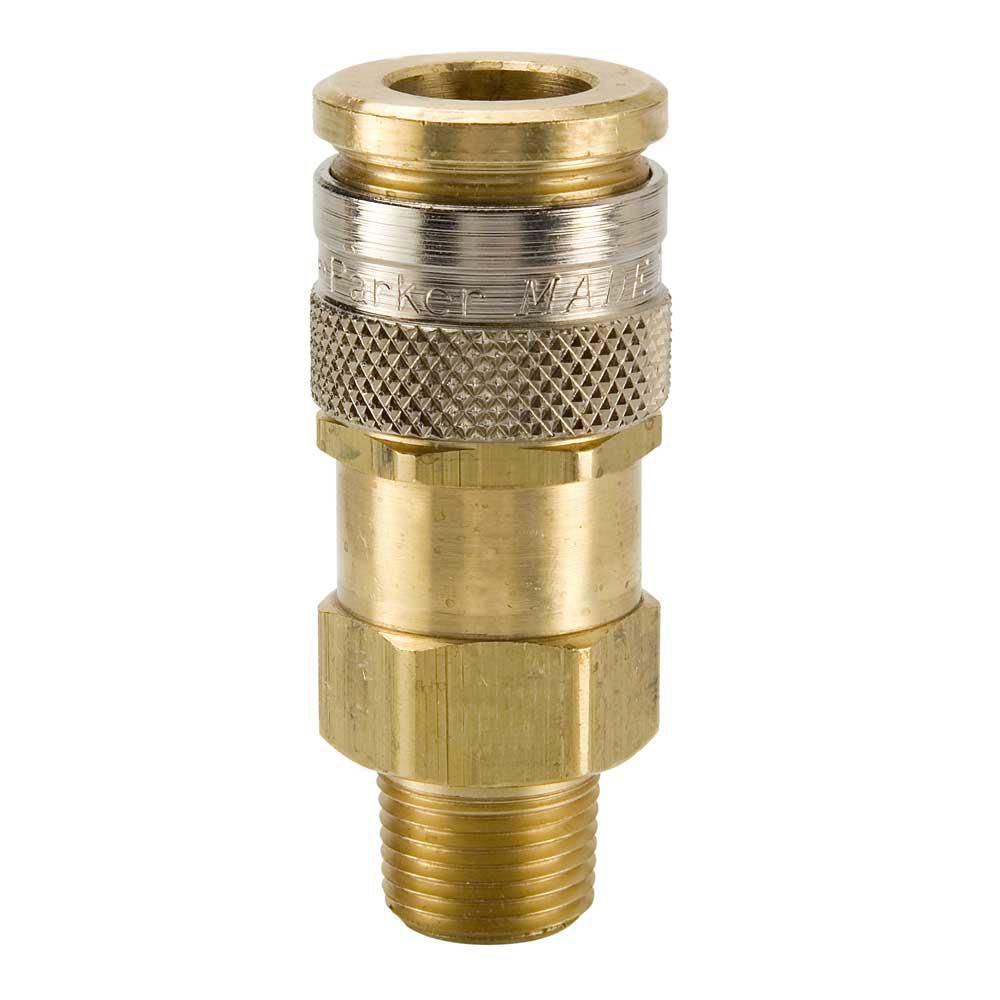

RF Series Coupler, Brass, European High-Flow, 300PSI, Male NPTF, 1/4" Body Size, 1/4-18 Thread Size
(Pack of
1)
SKU:1267322 Item#: 1267322
RF Series Pneumatic Couplers are designed to increase flow and reduce pressure drop through the coupling. RF nipples have up to 2-1/2 times larger flow area than standard industrial interchange nipples. The increased flow results in greater tool efficiency and decreased air costs. Couplers have brass bodies with nickel plated steel sleeves. RF nipples are steel.
• Aerodynamic valve design
• Steel nipples are case hardened
• Flow rates on 1/4” is greater than many 3/8” body size couplers
• Flow rates on 3/8” is greater than many 1/2” body size couplers
• Integral sleeve guard protects against accidental disconnection
• Functionally interchanges with a common high-flow European design
• Air compressors
• Pneumatic tools
• Drop-down air lines
Frequently Bought Together
Tru-Flate Safety Push-Button Safety Coupler 1/4" Body x 3/8" FNPT
$0.00
Couldn't load pickup availability
High Flow Safety Push-Button Safety Coupler 3/8" Body x 1/4" FNPT
$0.00
Couldn't load pickup availability
Universal Air Coupler 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Universal Air Coupler Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 11/16 to 1-1/2"
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
Worm Gear Hose Clamp Assortment with Rack
$0.00
Couldn't load pickup availability
Universal Air Coupler Brass 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 3/8" FNPT
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Product Description
RF Series Pneumatic Couplers are designed to increase flow and reduce pressure drop through the coupling. RF nipples have up to 2-1/2 times larger flow area than standard industrial interchange nipples. The increased flow results in greater tool efficiency and decreased air costs. Couplers have brass bodies with nickel plated steel sleeves. RF nipples are steel.• Aerodynamic valve design
• Steel nipples are case hardened
• Flow rates on 1/4” is greater than many 3/8” body size couplers
• Flow rates on 3/8” is greater than many 1/2” body size couplers
• Integral sleeve guard protects against accidental disconnection
• Functionally interchanges with a common high-flow European design
• Air compressors
• Pneumatic tools
• Drop-down air lines
Technical Specifications
| Item#: | 1267322 |
|---|---|
| Manufacturer Model #: | RF-251-4MP |
| Type | Coupler |
| Style | European High-Flow |
| Body Size | 1/4 " |
| Thread Style | Male NPTF |
| Thread Size | 1/4-18 |
| Working Pressure | 300 PSI |
| Material | Brass |
| Length | 2.34 " |
| Seal Material | Nitrile |
| Hex Size | 0.81 " |
| Locking Mechanism | 4 Ball |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
