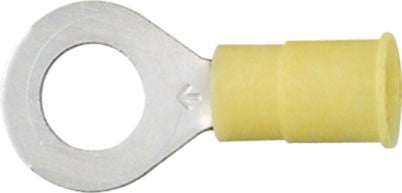

Ring Tongue Terminal, Standard, Nylon Insulated, 12 to 10 AWG, 5/16" Stud Size, Yellow
(Pack of
50)
SKU:25278M01 Item#: 25278M01
Electro-Lok terminals provide a superior solderless crimp terminal connection when compared to other traditional terminal.
The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection.
Electro-Lok terminals feature:
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Molded see-through nylon insulation that provides high-quality, tough, chemical-resistant electrical insulation for industrial applications
Electro-Lok
• Standard style of tongue
• Safest and most reliable
• Can’t be removed unless mounting screw is removed
Lawson's Industrial Grade
Frequently Bought Together
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 4 AWG
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 8 AWG Red
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 4 AWG Yellow
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Step-Down Butt Connector 16 to 14/22 to 18 AWG Red
$0.00
Couldn't load pickup availability
Male Disconnect Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Product Description
Electro-Lok terminals provide a superior solderless crimp terminal connection when compared to other traditional terminal.The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection.
Electro-Lok terminals feature:
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Molded see-through nylon insulation that provides high-quality, tough, chemical-resistant electrical insulation for industrial applications
Electro-Lok
• Standard style of tongue
• Safest and most reliable
• Can’t be removed unless mounting screw is removed
Lawson's Industrial Grade
Technical Specifications
| Item#: | 25278M01 |
|---|---|
| Type | Crimp |
| Wire Gauge | 12-10 AWG |
| Stud Size | 5/16 " |
| Color | Yellow |
| UNSPSC #: | 39121432 |
| TAA Compliant: | No |
| Weight: | 0.31 lb |
