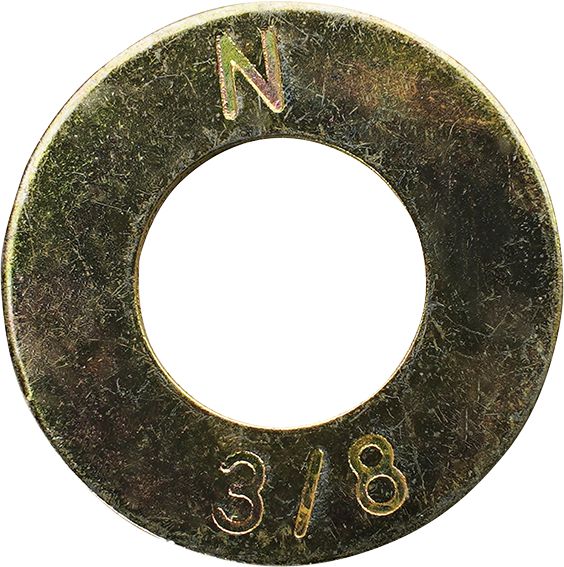

Flat Washer, SAE, Thru-Hardened, Steel, Yellow Zinc Finish, 0.406" ID, 0.812" OD, 0.051 to 0.08" Thickness, 3/8"
(Pack of
100)
The SAE Flat Washer delivers the reliable performance mechanics and auto body shops demand for critical fastening applications. Constructed from 1050 annealed HRPO and hardened to Rc 38/45, this automotive washer resists dishing, bellying, and cracking under heavy loads while distributing pressure evenly across soft materials. The zinc-plated finish with yellow chromate coating provides superior corrosion resistance, ensuring long-lasting durability in harsh automotive environments. With SAE-specified dimensions for a precise fit on standard fasteners, this washer prevents pull-through failures and surface damage while maintaining tight connections that won't loosen under vibration.
• 1050 annealed HRPO*
• Hardened and drawn to Rc 38/45
• Zinc-plated to 0.0002" minimum thickness with yellow chromate finish
• Thru-hardened to resist dishing, bellying or cracking
*Hot rolled, pickled and oiled steel
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M8-1.25 x 40mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 25mm
Couldn't load pickup availability
Hex Flange Nut Grade 8 Steel M8-1.25
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M5
Couldn't load pickup availability
Flat Washer 316 Stainless Steel 1/4"
Couldn't load pickup availability
SAE Flat Washer Low Carbon Steel 1/4"
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
SAE Flat Washer Low Carbon Steel 5/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 7/16"
Couldn't load pickup availability
SAE Flat Washer Low Carbon Steel #4
Couldn't load pickup availability
Product Description
The SAE Flat Washer delivers the reliable performance mechanics and auto body shops demand for critical fastening applications. Constructed from 1050 annealed HRPO and hardened to Rc 38/45, this automotive washer resists dishing, bellying, and cracking under heavy loads while distributing pressure evenly across soft materials. The zinc-plated finish with yellow chromate coating provides superior corrosion resistance, ensuring long-lasting durability in harsh automotive environments. With SAE-specified dimensions for a precise fit on standard fasteners, this washer prevents pull-through failures and surface damage while maintaining tight connections that won't loosen under vibration.• 1050 annealed HRPO*
• Hardened and drawn to Rc 38/45
• Zinc-plated to 0.0002" minimum thickness with yellow chromate finish
• Thru-hardened to resist dishing, bellying or cracking
*Hot rolled, pickled and oiled steel
Technical Specifications
| Item#: | FA88437 |
|---|---|
| Nominal Size | 3/8 " |
| Grade | Thru-Hardened |
| Finish | Yellow Zinc |
| Type | Flat Washer |
| I.D. | 0.406 " |
| O.D. | 0.812 " |
| Thickness | 0.051 – 0.080 " |
| Material | Carbon Steel |
| Pattern | SAE |
| Specifications | ANSI B18.22.1 |
| UNSPSC #: | 31161807 |
| TAA Compliant: | No |
| Weight: | 0.62 lb |
