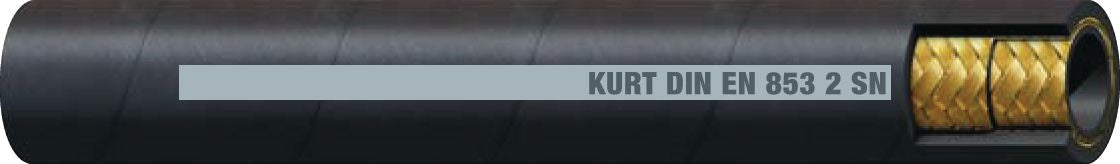

SAE R2S Hydraulic Hose, Rubber, 2-Steel Braided, 1/4" ID, 0.59" OD, 250' Length, 4" Bend Radius, 5750PSI
(Pack of
250)
SKU:1562969 Item#: 1562969
• Agency Ratings: SAE 100R2S, EN 853 2SN
• Fittings Certified: Kurt braided hose fittings
• Agency Approval: MSHA
• Construction:
– Inner Tube: Synthetic rubber
– Reinforcement: Two high tensile steel wire braids
– Cover: Abrasion-, ozone- and weather-resistant synthetic rubber
• Operating Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes: Recommended for low- and medium-pressure hydraulic oil lines
Frequently Bought Together
Impulse Rubber Water Hose Assembly 5/8" x 50'
$0.00
Couldn't load pickup availability
Tough-Tek Rubber Pressure Washing Hose 1/4" X 50'
$0.00
Couldn't load pickup availability
Avagard Rubber Water Hose Assembly 5/8" x 50'
$0.00
Couldn't load pickup availability
Industrial O-Ring Buna-N 7/32 x 11/32 x 1/16"
$0.00
Couldn't load pickup availability
ET1000 Crimper Starter Assortment EC215 129 Pcs
$0.00
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 1/2-14
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
$0.00
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 3/8"
$0.00
Couldn't load pickup availability
MXG4K Hydraulic Hose 5/8" ID x 98' Length
$0.00
Couldn't load pickup availability
G2L Hydraulic Hose 3/4" ID x 220' Length
$0.00
Couldn't load pickup availability
GTH Hydraulic Hose 1" ID x 165' Length
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 15mm
$0.00
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R2S, EN 853 2SN• Fittings Certified: Kurt braided hose fittings
• Agency Approval: MSHA
• Construction:
– Inner Tube: Synthetic rubber
– Reinforcement: Two high tensile steel wire braids
– Cover: Abrasion-, ozone- and weather-resistant synthetic rubber
• Operating Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes: Recommended for low- and medium-pressure hydraulic oil lines
Technical Specifications
| Item#: | 1562969 |
|---|---|
| Manufacturer Model #: | R2S-04 (250) |
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R2S |
| Industry Rating 2 | EN 853 2SN |
| Industry Rating | MSHA |
| Manufacturer Series Number | SAE R2S |
| Manufacturer Series Name | Kurt |
| I.D. | 1/4 (-4) " |
| Hose O.D. | 0.59 " |
| Working Pressure | 5,750 PSI |
| Burst Pressure | 23,000 PSI |
| Fitting Series | Kurt Braided Hose Fittings |
| Bend Radius | 4 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Synthetic Rubber |
| Material | Hydraulic Oil |
| Temperature Range | -40F to +212F (+250F Max) |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 62.0 lb |
