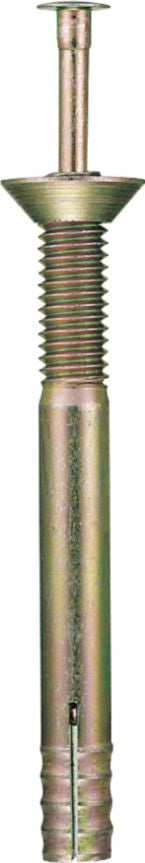

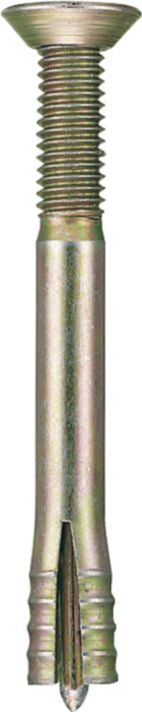

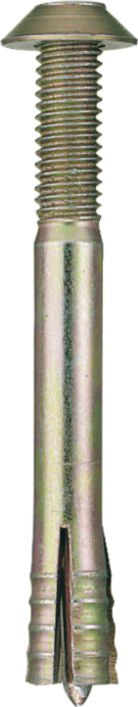

Security Anchor, Reversible Head, Steel, Zinc Finish, 1/4 x 2-3/8"
(Pack of
10)
• Resistant to tampering and vibration
• Reversible nut for round head or flat head style
• Carbon steel anchor body and nut with hardened setting pin
• High pull-out and shear strength
• Made in USA
• For use in all poured concrete and brick materials
• Applications: Security door frames, motion detectors, lock boxes, money meters, fencing, vending machines, burglar bars, benches, light fixtures, playground equipment, cash machines, stadium seating, mailboxes, prison furniture
1. Drill hole of sufficient depth, using same diameter bit as anchor being installed.
2. Select head style (round or flat), then turn security nut flush with the top of anchor. Insert anchor into pre-drilled hole.
3. Drive in setting pin with hammer until flush. Use a 2 to 3 lb. hammer for small anchors and a 4 to 5 lb. hammer for medium and large anchors.
4. Slotted anchor base expands into concrete. Anchor is now properly set.
Frequently Bought Together
Wallboard Anchor Assortment 1125Pcs
Couldn't load pickup availability
Masonry Anchor Assortment 243Pcs
Couldn't load pickup availability
Masonry Anchor Assortment 243Pcs
Couldn't load pickup availability
Pin Drive Expansion Anchor Steel 3/4 x 5"
Couldn't load pickup availability
Lead Machine Screw Anchor 5/16-18
Couldn't load pickup availability
Lead Machine Screw Anchor 1/4-20
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 16mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 30mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 35mm
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Couldn't load pickup availability
Product Description
• Resistant to tampering and vibration• Reversible nut for round head or flat head style
• Carbon steel anchor body and nut with hardened setting pin
• High pull-out and shear strength
• Made in USA
• For use in all poured concrete and brick materials
• Applications: Security door frames, motion detectors, lock boxes, money meters, fencing, vending machines, burglar bars, benches, light fixtures, playground equipment, cash machines, stadium seating, mailboxes, prison furniture
1. Drill hole of sufficient depth, using same diameter bit as anchor being installed.
2. Select head style (round or flat), then turn security nut flush with the top of anchor. Insert anchor into pre-drilled hole.
3. Drive in setting pin with hammer until flush. Use a 2 to 3 lb. hammer for small anchors and a 4 to 5 lb. hammer for medium and large anchors.
4. Slotted anchor base expands into concrete. Anchor is now properly set.
Technical Specifications
| Item#: | 59625 |
|---|---|
| Anchor Size | 1/4 " |
| Length | 2-3/8 " |
| Type | Security Anchor |
| Material | Carbon Steel |
| Finish | Zinc |
| Size | 1/4X2-3/8 " |
| UNSPSC #: | 31162101 |
| TAA Compliant: | Yes |
| Weight: | 0.35 lb |
