Home Automotive Hardware Self-Piercing Rivet 5.3 x 8.0mm
Automotive Hardware

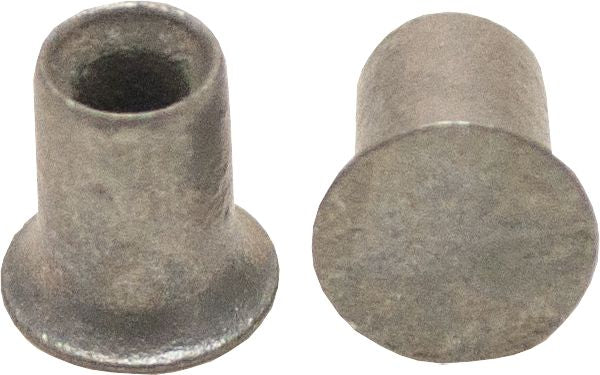

Self-Piercing Rivet 5.3 x 8.0mm
(Pack of 25.0)

Kent Automotive

Self-piercing rivets are the most common fastening method used by the OEMs. They are specially-coated steel rivets that pierce the outer body panel and mushroom into the inner body panel without piercing it. A special coating, usually tin/zinc, prevents galvanic corrosion. A special tool is used to press the rivet into place and it must have access to both sides of the panel. Self-piercing rivets are used on aluminum body panels because they duplicate the performance of spot welds without heating the aluminum.

Read More
Check Availability

Catalog page#: 6-341

Frequently Bought Together


Metric Indented Hex Head Bolt with 17mm Washer

Item#: P59732

Radiator Grille Nut M4.2-1.41

Item#: 1513544

Fender Splash Shield Retainer Nylon 20mm

Item#: P53958

Fender Splash Shield Retainer Nylon 20mm

Item#: P53958

Molding Clip with Sealer Nylon White 11.5 x 21

Item#: 1457520

Bumper Drive Rivet Plastic 10mm Hole

Item#: P85437

Radiator Grille Nut M4.2-1.41

Item#: 1513544

Fender Splash Shield Retainer Nylon 20mm

Item#: P53958

Molding Clip with Sealer Nylon White 11.5 x 21

Item#: 1457520

Front Bumper Push-Type Retainer Nylon 20mm

Item#: P15599

Front Fender Push-Type Retainer Nylon 18mm

Item#: KT13984

Utility Knife, Folding , 4" Closed

Item#: FA5474

Blind Rivet Nylon M6.3

Item#: KT11282

Self-Piercing Rivet 5.3 x 4mm

Item#: 1489000

Specialty Rivet Steel/Steel 1/4"

Item#: 1468616

Product Description

Self-piercing rivets are the most common fastening method used by the OEMs. They are specially-coated steel rivets that pierce the outer body panel and mushroom into the inner body panel without piercing it. A special coating, usually tin/zinc, prevents galvanic corrosion. A special tool is used to press the rivet into place and it must have access to both sides of the panel. Self-piercing rivets are used on aluminum body panels because they duplicate the performance of spot welds without heating the aluminum.

Technical Specifications

Item#: 1610335
Type Self-Piercing Rivet
Body Diameter 5.3 mm
OEM Number Tesla OEM No. 1026944-00-A
Rivet Length 8.0 mm
Quantity Per Package 25.0000
UNSPSC #: 31162200
TAA Compliant: No
Weight: 0.07 lb
