Setting Punch and Reversible Die Set for Snap Fastener Assembly
(Pack of 1)

Item#: 97156

Kent Automotive

• Assembles cap and socket for female connection or stud and eyelet for male connection
To assemble cap and socket for female connection
1. Place cap in reversible die.
2. Punch hole in material large enough to fit the cap barrel through.
3. Place socket over material and cap.

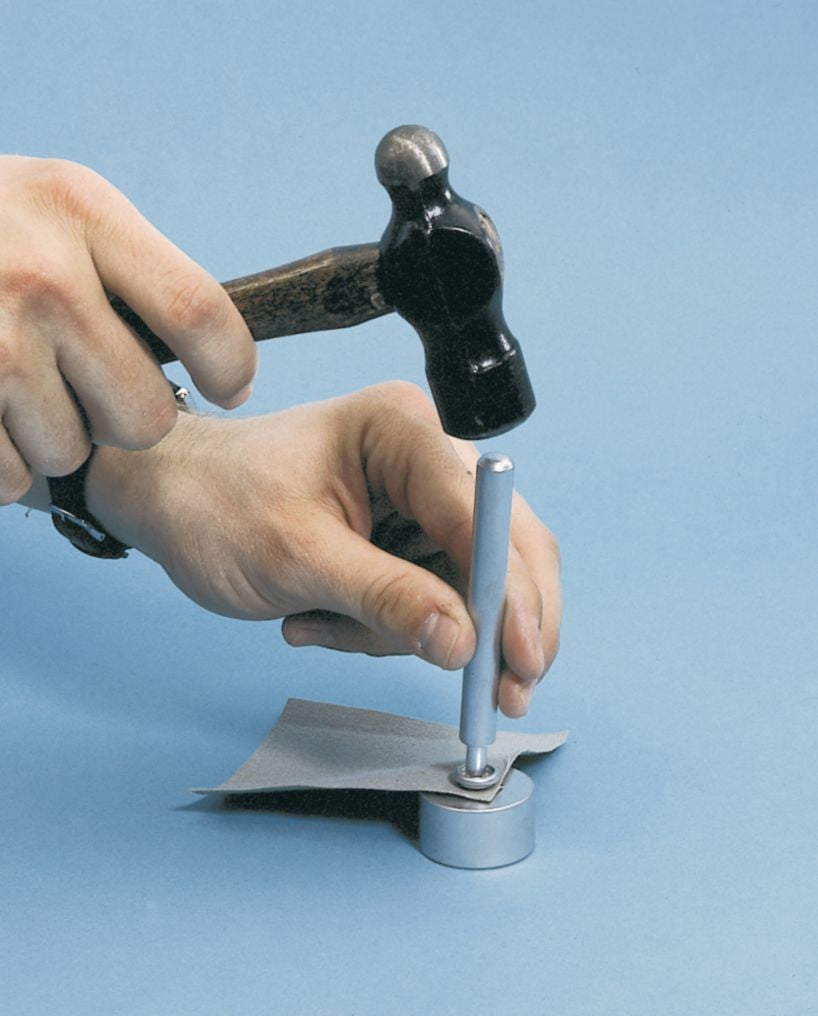

4. Place setting tool on top of cap and socket in reversible die and strike top of tool with hammer.

To install eyelet and stud for male connection
1. Flip the reversible die to the other side.
2. Place eyelet in reversible die. To finish installation, repeat steps 2, 3 and 4 above, using the eyelet and stud.

Read More
Check Availability

Frequently Bought Together


Open End Rivet Large Flange Head Aluminum 3/16"

Item#: 82353

Open End Rivet Dome Head Aluminum 3/16"

Item#: 485

Serrated Hex Flange Nut Alloy Steel M6-1

Item#: 28699

Turn Fastener Stud with #7 Screw

Item#: 97160

Push-Type Retainer Nylon 16 x 19mm

Item#: 1468633

Bumper Fascia General Purpose Split Rivet 3/16"

Item#: KT13747

Specialty Rivet with Plastic Cap Aluminum 3.2mm

Item#: KT13763

Snap Fastener Cap for 97153 Socket

Item#: 97151

Product Description

• Assembles cap and socket for female connection or stud and eyelet for male connection
To assemble cap and socket for female connection
1. Place cap in reversible die.
2. Punch hole in material large enough to fit the cap barrel through.
3. Place socket over material and cap.
4. Place setting tool on top of cap and socket in reversible die and strike top of tool with hammer.

To install eyelet and stud for male connection
1. Flip the reversible die to the other side.
2. Place eyelet in reversible die. To finish installation, repeat steps 2, 3 and 4 above, using the eyelet and stud.

Technical Specifications

Item#: 97156
Description Punch and Die Set
Type Snap Fastener
UNSPSC #: 31162413
TAA Compliant: Yes
Weight: 0.47 lb
