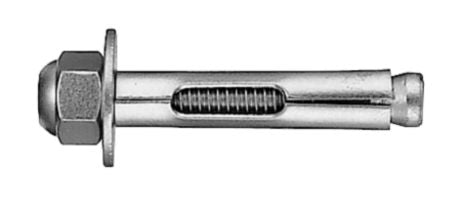

Sleeve Type Stud Bolt Anchor, Hex Nut Head, Steel, Zinc Finish, 5/8-11 Thread Diameter, 3/4 x 4-1/4"
(Pack of
5)
SKU:25222 Item#: 25222
• Zinc rust-resistant finish
1. Drill hole
2. Insert anchor
3. Tighten
Frequently Bought Together
Masonry Anchor Phillips Head #14-10 x 2-3/4"
Item#: 59664
$0.00
Couldn't load pickup availability
Drop-In Anchor Steel 1/2 x 2"
Item#: 96954
$0.00
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 5/16 x 1-3/4"
Item#: 60753
$0.00
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Item#: 2539
$0.00
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Item#: FA88446
$0.00
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M6-1 x 16mm
Item#: 27330
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
Item#: 1482003
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
Item#: P13770
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
Item#: P18348
$0.00
Couldn't load pickup availability
Masonry Sleeve Anchor Steel 5/8 x 6"
Item#: P34706
$0.00
Couldn't load pickup availability
Sleeve Type Stud Bolt Anchor Steel 3/8 x 4"
Item#: 25209
$0.00
Couldn't load pickup availability
Sleeve Type Stud Bolt Anchor Steel 1/4 x 3"
Item#: 25205
$0.00
Couldn't load pickup availability
Product Description
• Zinc rust-resistant finish1. Drill hole
2. Insert anchor
3. Tighten
Technical Specifications
| Item#: | 25222 |
|---|---|
| Anchor Size | 3/4 x 4-1/4 " |
| Thread Pitch | 11 |
| Length | 4-1/4 " |
| Type | Sleeve-Type Stud Bolt Anchor |
| Drill Size | 3/4 x 4-1/4 " |
| Head Style | Hex Nut |
| Material | Carbon Steel |
| Thread Diameter | 5/8-11 |
| Minimum Hole Depth | 2 " |
| Maximum Fastened Material Thickness | 2 " |
| Size | 3/4X4-1/4 " |
| Diameter | 3/4 " |
| UNSPSC #: | 31162101 |
| TAA Compliant: | No |
| Weight: | 3.29 lb |
Product Restrictions
