Home Fasteners Socket Screws Socket Head Cap Screws Socket Head Cap Screw Alloy Steel 1/4-20 x 4"
Fasteners

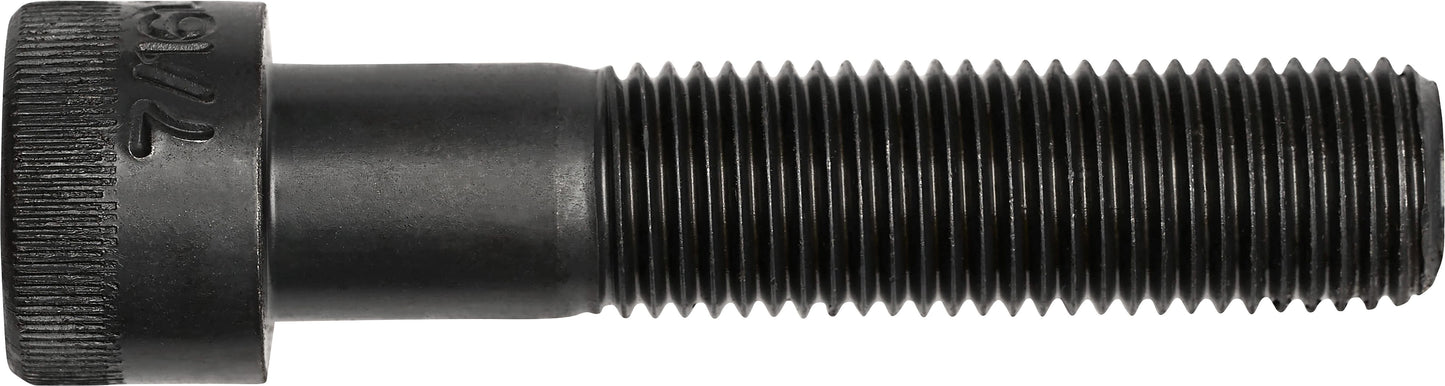

Socket Head Cap Screw, Alloy Steel, Premium Black Oxide Finish, Coarse Thread, 3/16" Hex Key, 1/4-20 x 4"
(Pack of 10)

Item#: 51707

Kent Automotive

• Full product traceability
• Diameter size rolled into the screw head for quick identification
• High-strength, heat-treated alloy steel
• Black oxide finish for corrosion protection
Premium Socket Head Cap Screws - Full traceabilty, diameter size rolled into the screw head for quick identification
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications

Read More
Check Availability

Catalog page#: 11-56

Frequently Bought Together


DIN 125A Flat Washer Grade 140 HV M10

Item#: 80264

Open End Rivet Large Flange Head Aluminum 3/16"

Item#: 82353

Hex Flange Bolt Grade 10.9 M8-1.25 x 25mm

Item#: 28687

Specialty Rivet with Plastic Cap Aluminum 3.2mm

Item#: KT13763

Inner Fender Shield Attaching Clip Nylon Black

Item#: P27685

Front Fender Liner Push-Type Retainer Nylon 20mm

Item#: P24252

Socket Head Cap Screw Alloy Steel 1-8 x 6-1/2"

Item#: 64341

Socket Head Cap Screw A4 SS M6-1 x 60mm

Item#: 53039

Socket Head Cap Screw Alloy Steel 1/2-13 x 3-1/2"

Item#: 64230

Flat Head Socket Cap Screw Steel 3/8-16 x 2"

Item#: 90840

Flat Head Socket Cap Screw Steel 5/8-11 x 2"

Item#: 3653

Flat Head Socket Cap Screw Steel 1/4-20 x 1-1/4"

Item#: 3623

Product Description

• Full product traceability
• Diameter size rolled into the screw head for quick identification
• High-strength, heat-treated alloy steel
• Black oxide finish for corrosion protection
Premium Socket Head Cap Screws - Full traceabilty, diameter size rolled into the screw head for quick identification
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications

Technical Specifications

Item#: 51707
Diameter 1/4 "
Thread Pitch 20
Length 4 "
Material Alloy Steel
Finish Black Oxide
Head Style Socket
Tensile Strength 180,000 PSI
Thread Coarse
Type Socket Head Cap Screw
Key Size 3/16 "
Drive Hex
Size 1/4-20X4
UNSPSC #: 31161518
TAA Compliant: Yes
Weight: 0.64 lb
