Home Fasteners Threaded Inserts Standard Threaded Inserts Standard Threaded Insert #12-24
Fasteners

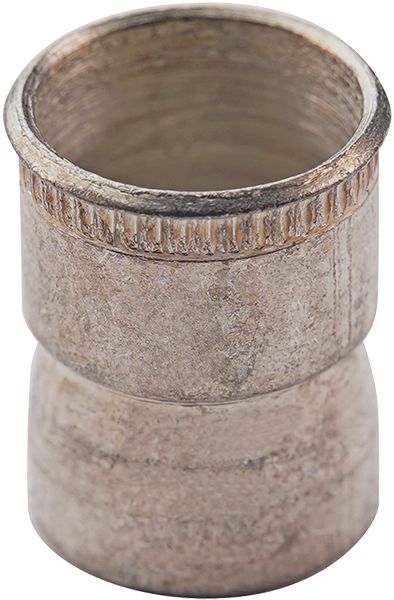

Standard Threaded Insert, Steel, Cadmium Finish, Knurled, Small Flange, Coarse Thread, #12-24
(Pack of 25)

Item#: 89498

Kent Automotive

• Works in any thickness of material over 0.030"
• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• Tin-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes

Read More
Check Availability

Catalog page#: 11-94

Frequently Bought Together


Open End Rivet Dome Head Aluminum 1/8"

Item#: 82336

Serrated Hex Flange Nut Alloy Steel M8-1.25

Item#: 28700

Hex Flange Bolt Grade 10.9 M6-1 x 25mm

Item#: 28681

Bumper Clip Push-Type Retainer Nylon 18mm

Item#: KT12848

Front Bumper Trim Panel/Running Board Split Rivet

Item#: KT13527

Front Fender Push-Type Retainer Nylon 20mm

Item#: P24082

Standard Threaded Insert M6-1

Item#: 85897

6-32x5/16 Blind Cert

Item#: DY09820507

Threaded Insert for Soft Material 5/16-18

Item#: 95976

Blind Rivet Nut Insert Riv-Float M6-1

Item#: 1405628

Standard Threaded Insert 1/4-20

Item#: 81088

Blind Rivet Nut Prebulbed Slotted Body Series

Item#: 1593265

Product Description

• Works in any thickness of material over 0.030"
• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• Tin-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes

Technical Specifications

Item#: 89498
Diameter #12
Thread Pitch 24
Thread Coarse
Flange Type Small Flange
Type Standard Threaded Inserts
Body Type Knurled
Pilot Drill Size 3/8 "
Pilot Drill Number 84741
Material Carbon Steel
Finish CAD-Plated
UNSPSC #: 31162802
TAA Compliant: Yes
Weight: 0.17 lb
