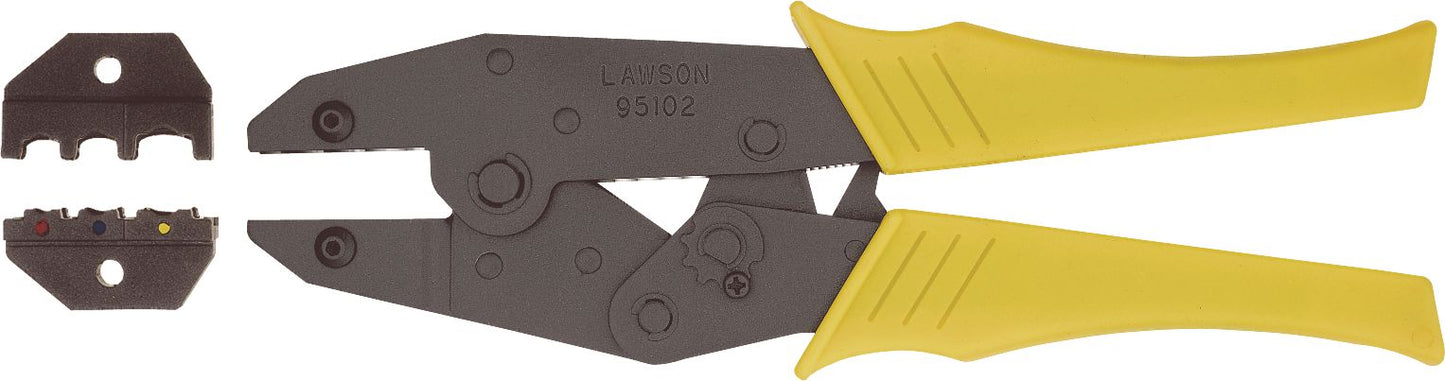

Terminal Crimping Tool with Interchangeable Die, 22-10 AWG, Full Cycle Ratchet, Suitable for Insulated Terminals
(Pack of 1)

Item#: 95109

Kent Automotive

• Professional tool incorporating a single frame with several interchangeable dies
• Full cycle ratchet with safety release
• High-quality electrical and mechanical crimps are made simultaneously
• Crimps meet or exceed industry standards
• Assures a positive mechanical and electrical crimp and ease of use
• Crimping dies can be easily switched with two screws
The die will slide out towards the front of the frame simply by loosening the two socket head screws and removing them.
To replace the die1. Simply extend the frame to its full open position.2. Close the frame approximately halfway. 3. Insert the die into the frame until it stops. All dies can be inserted only one way for the tool to close properly.4. Tighten the screws approximately halfway. 5. Close the frame to press the dies against each other. This helps to align the dies in the frame.6. Finish tightening the screws. 7. Frame and tool are complete and ready for use.

Read More
Check Availability

Frequently Bought Together


Terminal Crimp Die 22-18 AWG

Item#: 95107

Crimping Tool 8 AWG-1/0 AWG 15"

Item#: P14014

Terminal Crimp Tool Assortment

Item#: LP400

Terminal Crimp Frame

Item#: 95102

Crimping Tool 500 Series 8 AWG-500 MCM

Item#: 89555

Cable Tie Installation Tool Black Self-Locking

Item#: 92481

18V Impact Wrench Kit

Item#: 1690787

Reciprocating Saw Charging Bundle

Item#: 1638989CB

Rotary Tool Station Charging Bundle

Item#: 1639001CB

Front Bumper Trim Panel/Running Board Split Rivet

Item#: KT13527

Front Fender Push-Type Retainer Nylon 20mm

Item#: P24082

Front Bumper Drive Rivet Plastic 10mm Hole

Item#: KT14285

Spot Weld Remover Drill Bit HSS 2-1/4" (M6)

Item#: 54454

10" Forman's Favorite Heavy-Duty Copper & Aluminum Cable Cutter Pliers

Item#: DY89310353

Small Index-Tend Pry Bar

Item#: DY89320015

Product Description

• Professional tool incorporating a single frame with several interchangeable dies
• Full cycle ratchet with safety release
• High-quality electrical and mechanical crimps are made simultaneously
• Crimps meet or exceed industry standards
• Assures a positive mechanical and electrical crimp and ease of use
• Crimping dies can be easily switched with two screws
The die will slide out towards the front of the frame simply by loosening the two socket head screws and removing them.
To replace the die1. Simply extend the frame to its full open position.2. Close the frame approximately halfway. 3. Insert the die into the frame until it stops. All dies can be inserted only one way for the tool to close properly.4. Tighten the screws approximately halfway. 5. Close the frame to press the dies against each other. This helps to align the dies in the frame.6. Finish tightening the screws. 7. Frame and tool are complete and ready for use.

Technical Specifications

Item#: 95109
Type Crimping Tool
Style Terminal Connector Crimping System
Crimp Range 22-10 AWG
Description Tool with 95103 Die
UNSPSC #: 27111500
TAA Compliant: Yes
Weight: 1.85 lb
