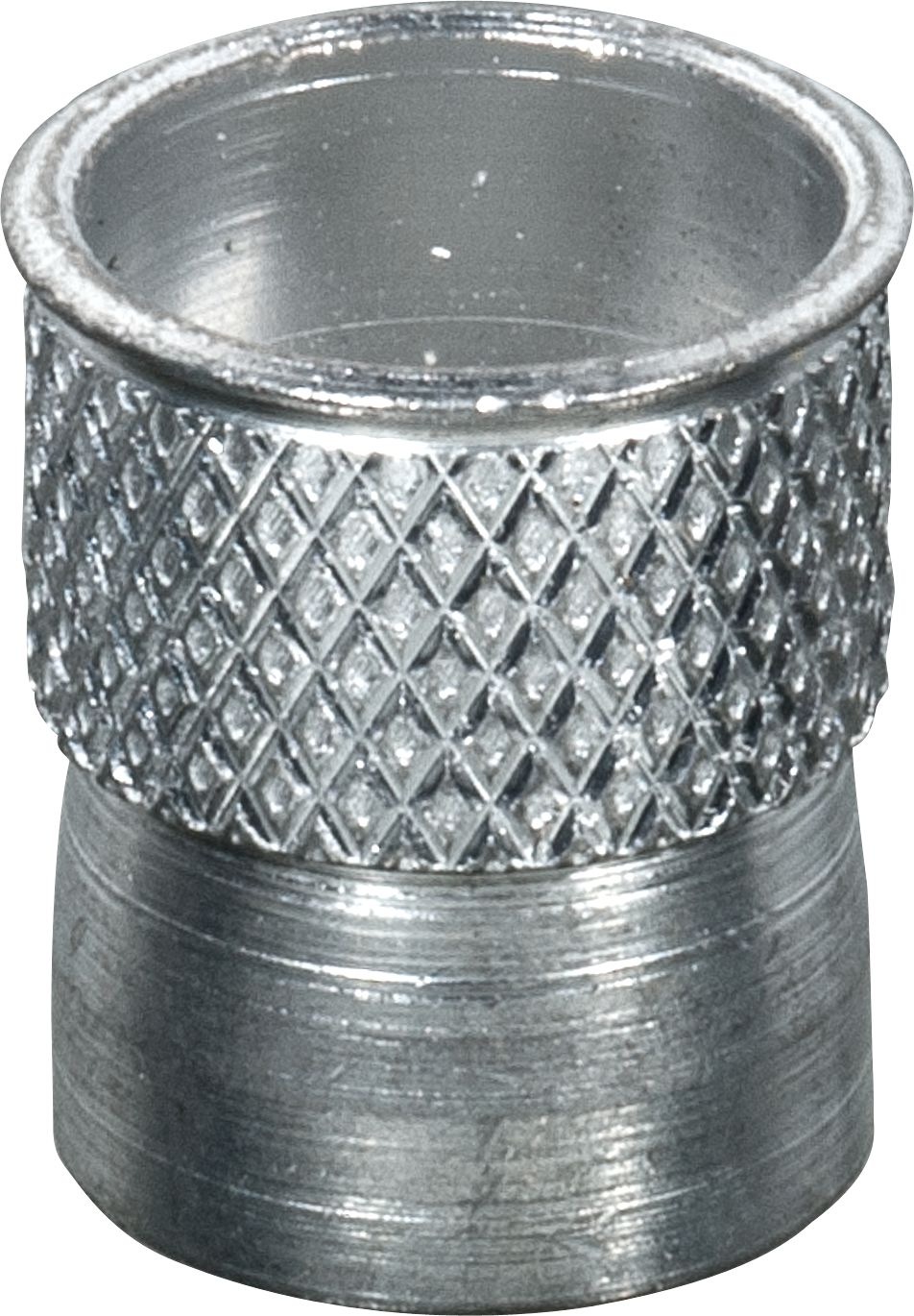

Threaded Insert for Soft Material, Steel, Cadmium Finish, Diamond Knurled, Small Flange, Coarse Thread, 3/8-16, 0.74" Length
(Pack of
25)
SKU:95978 Item#: 95978
Enhance the strength and reliability of your assemblies with our carbon steel Threaded Inserts. These CAD-plated inserts are engineered with large knurls that bite firmly into soft materials like plastics, wood, and aluminum, creating a permanent, wear-resistant hold. The design allows for greater clamping pressure, providing higher strength and better seals in your projects. Easy to install, these threaded inserts offer a robust solution for creating durable threads in softer materials.
• CAD-plated
• Ideal for use in soft materials such as plastics, fiberglass, wood, structural foam and aluminum
• Suggested hole sizes are suitable for most soft materials, but may have to be enlarged for some plastics to prevent splitting. It is recommended that the insert be tested in the application before finalizing the hole size.
Frequently Bought Together
Hex Nut Grade 8 Steel M8-1.25
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Standard Threaded Insert M10-1.5
Couldn't load pickup availability
Standard Threaded Insert #4-40
Couldn't load pickup availability
Replacement Mandrel for LHF 202 Tool M8
Couldn't load pickup availability
Replacement Head Set for SSG Tool 1/4-20
Couldn't load pickup availability
Replacement Mandrel for M4/M5 Tool 10-24
Couldn't load pickup availability
Product Description
Enhance the strength and reliability of your assemblies with our carbon steel Threaded Inserts. These CAD-plated inserts are engineered with large knurls that bite firmly into soft materials like plastics, wood, and aluminum, creating a permanent, wear-resistant hold. The design allows for greater clamping pressure, providing higher strength and better seals in your projects. Easy to install, these threaded inserts offer a robust solution for creating durable threads in softer materials.• CAD-plated
• Ideal for use in soft materials such as plastics, fiberglass, wood, structural foam and aluminum
• Suggested hole sizes are suitable for most soft materials, but may have to be enlarged for some plastics to prevent splitting. It is recommended that the insert be tested in the application before finalizing the hole size.
Technical Specifications
| Item#: | 95978 |
|---|---|
| Diameter | 3/8 " |
| Thread Pitch | 16 |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Soft Material Threaded Inserts |
| Body Type | Diamond Knurled |
| Hole Size | 0.594 " |
| Pilot Drill Size | 19/32 " |
| Pilot Drill Number | 81034 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 0.615 " |
| Body Diameter | 0.590 " |
| Length | 0.740 " |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.51 lb |
