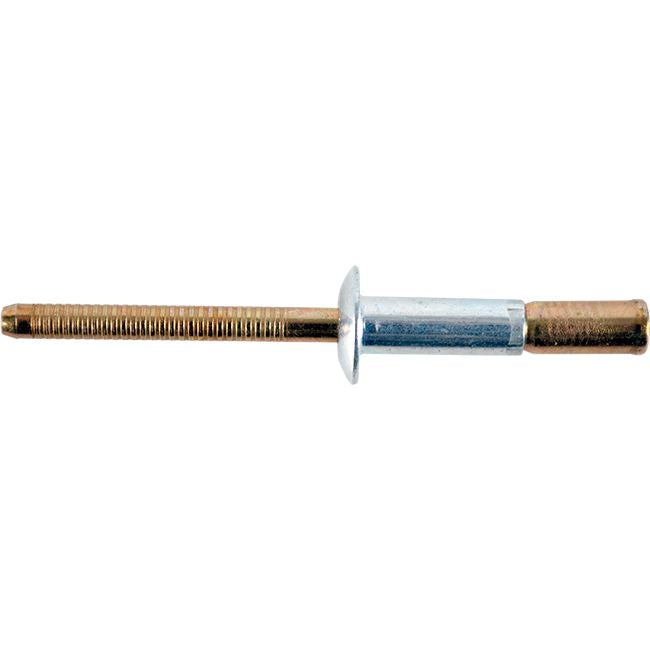

Tigerbolt® Structural Rivet, External Lock, Dome Head, Steel, 3/16" Diameter, 0.062 to 0.437" Grip Range, 0.36" Body Length
(Pack of
50)
SKU:1543632 Item#: 1543632
Dome Head

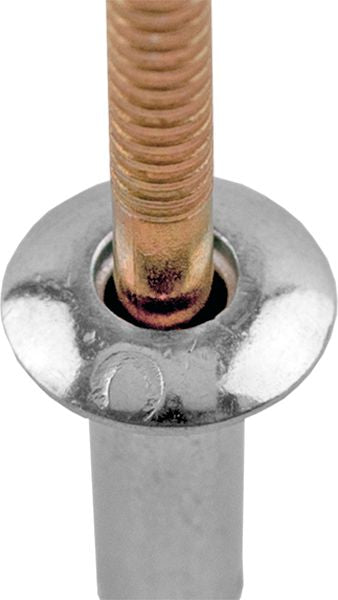

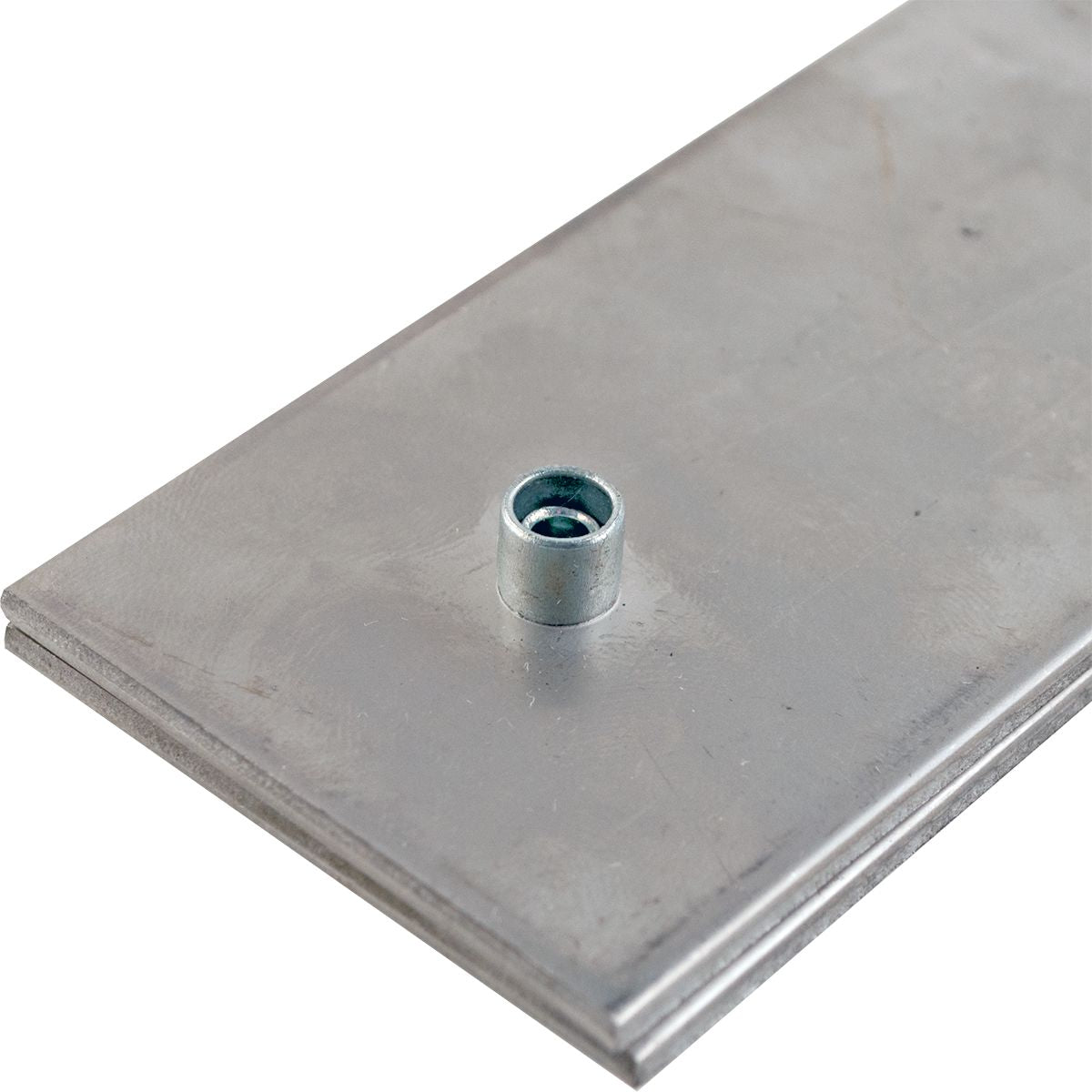

• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Interchangeable with Monobolts®
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• A special nosepiece is required to install External Locking Structural Rivets
Couldn't load pickup availability
Catalog page#: 11-121
Frequently Bought Together
Hex Cap Screw Property Class 8.8 M6-1 x 16mm
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 16mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 30mm
Couldn't load pickup availability
HuckBolt® Magna-Grip® Rivet Collar Flanged 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Drill Bit for 1/8" Countersunk Rivets
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
StemLock® Rear-Flange Structural Rivet Steel 1/4"
Couldn't load pickup availability
Structural Rivet Internal Lock Dome Head SS 3/16"
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 1/4"
Couldn't load pickup availability
Product Description
Dome Head• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Interchangeable with Monobolts®
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• A special nosepiece is required to install External Locking Structural Rivets
Technical Specifications
| Item#: | 1543632 |
|---|---|
| Type | Structural – External Lock |
| Head Style | Dome Head |
| Material Body / Mandrel | Steel/Steel |
| Diameter | 3/16 " |
| Grip Range | 0.062 – 0.437 " |
| Hole Size | 0.194 – 0.204 " |
| Drill Size | #10 |
| Head Diameter | 0.400 " |
| Head Height | 0.090 " |
| Body Length | 0.360 " |
| Shear Strength | 1,438 lb |
| Tensile Strength | 1,147 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.53 lb |
