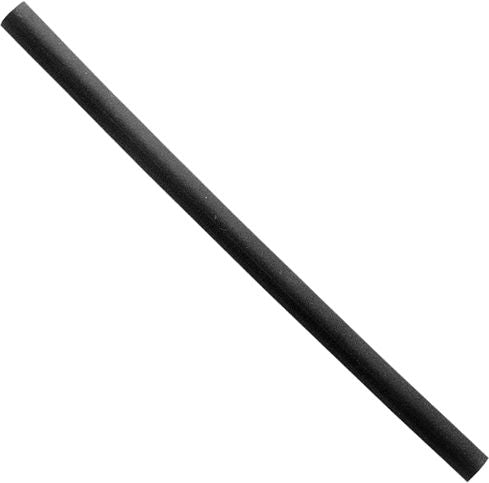

Tru-Shrink Heat Shrink Tubing, 10 to 8 AWG, Black, 3/8" Diameter, 6" Length, 0.375" ID Before and 0.187" ID After Shrinkage
(Pack of
10)
SKU:61659 Item#: 61659
• 2:1 shrink ratio
• Easily assembled over components, connectors or other irregular shapes
• Flame-retardant
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Meets or exceeds MIL-1-23053 D/5, Class I, II and III; AMS 3636C and AMS 3637B requirements
• Tensile strength: 1,500 PSI
• Elongation: 200%
• Dielectric strength: 500V/mil
• Volume resistivity: 1015 Ohm/cm
• Heat shock: Four hours at 482°F (250°C)
• Low temperature flexibility: Four hours at –67°F (–55°C)
• Longitudinal change: Less than 5%
• Secant modulus: 12,000 PSI
• Rated at 600V
• Use as electrical insulation over cable splices and terminations, and for wire harness covering, bundling and wire marker identification
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Frequently Bought Together
Lithium Coin Cell Battery #2032 3V
$0.00
Couldn't load pickup availability
Procell AA Alkaline Battery 1.5V
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
$0.00
Couldn't load pickup availability
Flow Form Heat Shrink Tubing 2 to 4/0 AWG Black
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 20 to 18 AWG Clear
$0.00
Couldn't load pickup availability
Heat Shrink Tubing Black 3 x 18"
$0.00
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
$0.00
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 18 to 14 AWG Black
$0.00
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
$0.00
Couldn't load pickup availability
.427X6#3 SEMIRIGID SHRINK TUB/DLG-806
$0.00
Couldn't load pickup availability
Product Description
• 2:1 shrink ratio• Easily assembled over components, connectors or other irregular shapes
• Flame-retardant
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Meets or exceeds MIL-1-23053 D/5, Class I, II and III; AMS 3636C and AMS 3637B requirements
• Tensile strength: 1,500 PSI
• Elongation: 200%
• Dielectric strength: 500V/mil
• Volume resistivity: 1015 Ohm/cm
• Heat shock: Four hours at 482°F (250°C)
• Low temperature flexibility: Four hours at –67°F (–55°C)
• Longitudinal change: Less than 5%
• Secant modulus: 12,000 PSI
• Rated at 600V
• Use as electrical insulation over cable splices and terminations, and for wire harness covering, bundling and wire marker identification
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 61659 |
|---|---|
| Type | Pre-Cut |
| Style | Thin Wall |
| Wire Gauge Coverage | 10-8 AWG |
| Diameter | 3/8 " |
| Length | 6 " |
| Color | Black |
| I.D. Before Shrinkage | 0.375 " |
| I.D. After Shrinkage | 0.187 " |
| Wall Thickness After Shrinkage | 0.025 " |
| Dielectric Strength | 500 V/mm |
| Voltage Rating | 600 V |
| Elongation | 200 % |
| Tensile Strength | 1,500 PSI |
| Heat Shock | 4 hours at 482 degrees F |
| Secant Modulus | 12,000 PSI |
| Longitudinal Change | Less than 5% |
| Approvals | CSA, UR and Meets or exceeds MIL-1-23053 D/5, Class I, II and II; AMS 3636C and AMS 3637B requirements |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.09 lb |
