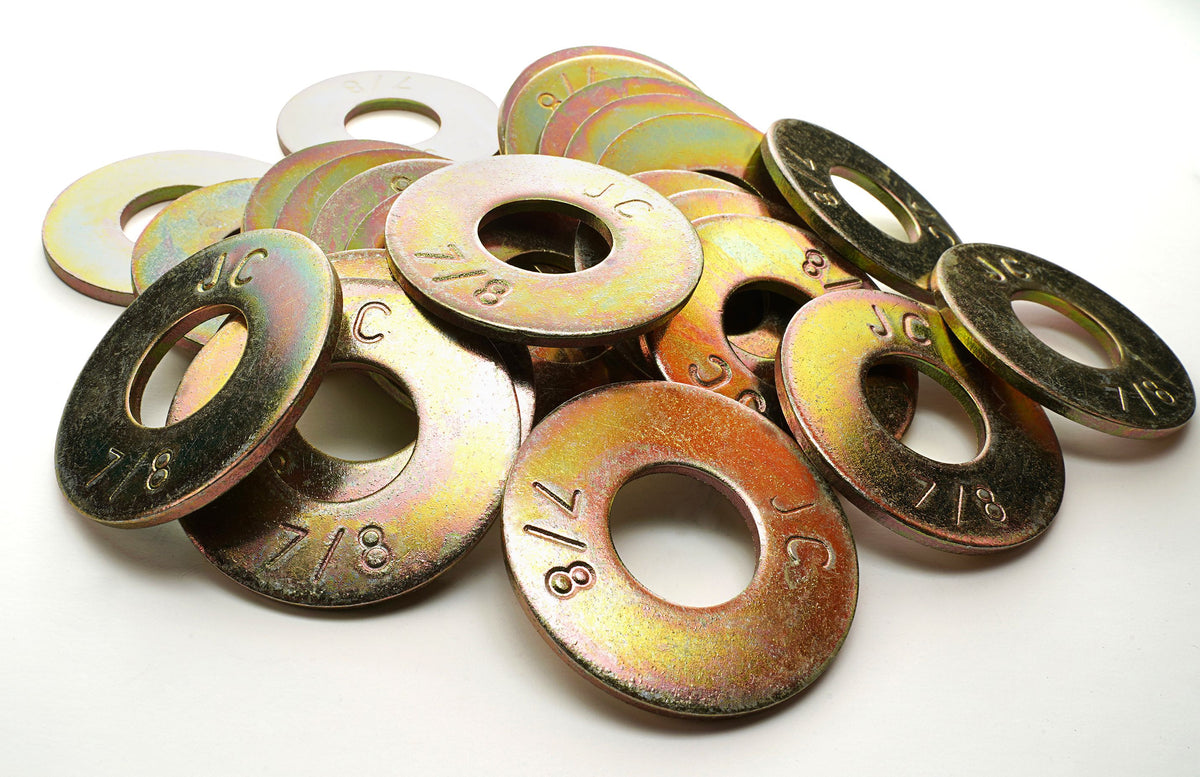

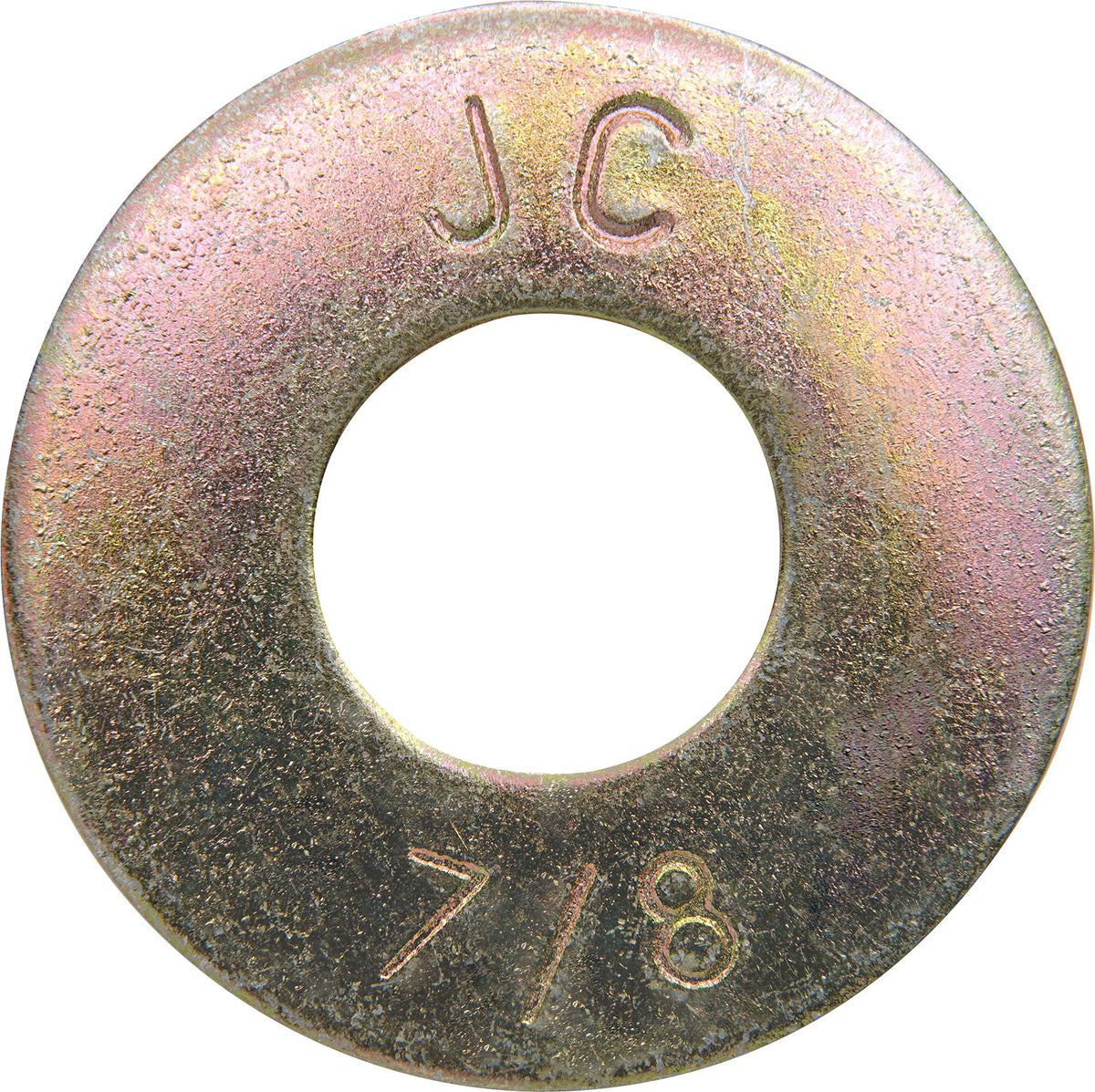

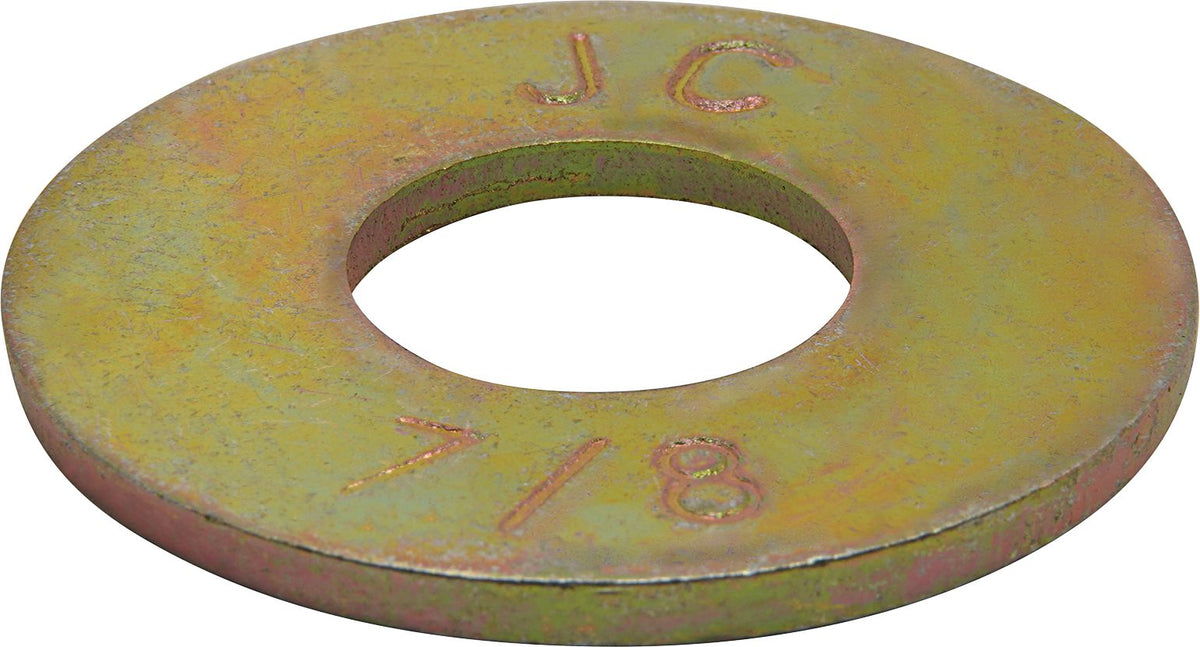

Flat Washer, USS, Thru-Hardened, Steel, Yellow Zinc Finish, 0.938" ID, 2.25" OD, 0.136 to 0.192" Thickness, 7/8"
(Pack of
25)
SKU:FA88453 Item#: FA88453
Enjoy a secure grip and prevent loosening when you use this USS flat steel washer for your construction, engineering and automotive projects. Thru-hardened feature means the entire washer is heat-treated, providing consistent strength throughout. When high strength and reliability are needed, this robust washer is your go to.
• Zinc-plated to 0.0002" minimum thickness with yellow chromate finish
• Thru-hardened to resist dishing, bellying or cracking
• Larger outer diameter allows for better load distribution on the fastened material
• Hardened and drawn to Rc 38/45
• 1050 annealed HRPO*
*Hot rolled, pickled and oiled steel
*Hot rolled, pickled and oiled steel
Frequently Bought Together
Hex Nut Grade 8 Steel M6-1
$0.00
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M10
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 16mm
$0.00
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 7/16"
$0.00
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
$0.00
Couldn't load pickup availability
USS Flat Washer Low Carbon Steel 1/4"
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
USS Flat Washer Low Carbon Steel 7/16"
$0.00
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
$0.00
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M6
$0.00
Couldn't load pickup availability
Product Description
Enjoy a secure grip and prevent loosening when you use this USS flat steel washer for your construction, engineering and automotive projects. Thru-hardened feature means the entire washer is heat-treated, providing consistent strength throughout. When high strength and reliability are needed, this robust washer is your go to.• Zinc-plated to 0.0002" minimum thickness with yellow chromate finish
• Thru-hardened to resist dishing, bellying or cracking
• Larger outer diameter allows for better load distribution on the fastened material
• Hardened and drawn to Rc 38/45
• 1050 annealed HRPO*
*Hot rolled, pickled and oiled steel
*Hot rolled, pickled and oiled steel
Technical Specifications
| Item#: | FA88453 |
|---|---|
| Nominal Size | 7/8 " |
| Grade | Thru-Hardened |
| Finish | Yellow Zinc |
| Type | Flat Washer |
| I.D. | 0.938 " |
| O.D. | 2.250 " |
| Thickness | 0.136 – 0.192 " |
| Material | Carbon Steel |
| Pattern | USS |
| Specifications | ANSI B18.22.1 |
| Quantity Per Package | 25.0000 |
| UNSPSC #: | 31161807 |
| TAA Compliant: | No |
| Weight: | 3.14 lb |
