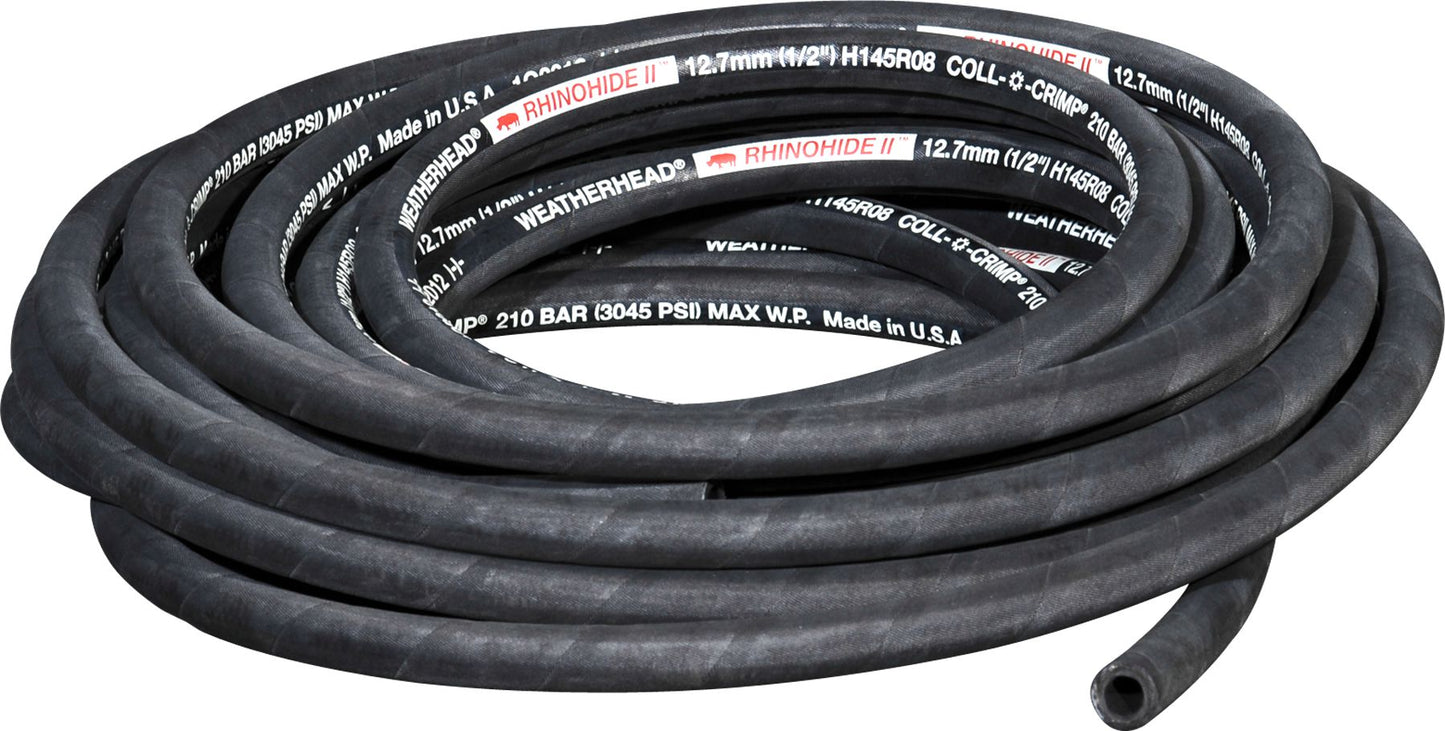

Weatherhead H145R Hydraulic Hose, UHMW Polyethylene, 1-Steel Braided, 1/2" ID, 11/16" OD, 50' Length, 3000PSI, SAE 100R17
(Pack of
50)
SKU:20767 08 Item#: 20767 08
50 ft. rolls consist of two pieces totaling 50 feet (±10%).
• Agency Ratings: SAE 100R17AT
• Fittings Certified: Z-Series only
• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service
• Construction:
– Inner Tube: Nitrile
– Reinforcement: 1 steel braid (-4 through -6); 2 steel braid (-8 through -16)
– Cover: UHMW (Ultra High Molecular Weight)
• Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes:
– Used for high-pressure hydraulic lines on off-road equipment, farm equipment and other high-pressure applications
– Tight minimum bend radius and improved flexibility
– Provides 3,000 PSI working pressure rating for all sizes
– RhinoHide II™ UHMW cover provides exceptional abrasion resistance
Frequently Bought Together
3TR7 Hydraulic Thermoplastic Hose 1.04" x 50'
$0.00
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 1.33" x 200'
$0.00
Couldn't load pickup availability
3TR7N Hydraulic Thermoplastic Hose 0.57" x 50'
$0.00
Couldn't load pickup availability
Spacer Ring Orange/White
$0.00
Couldn't load pickup availability
Spacer Ring Green
$0.00
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 3/4-16
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
$0.00
Couldn't load pickup availability
Hose Clamp 304 SS 1/2 to 29-32"
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 3/4" x 100'
$0.00
Couldn't load pickup availability
Impulse Rubber Water Hose Assembly 3/4" x 100'
$0.00
Couldn't load pickup availability
BluShield Single-Wire Pressure Washer Hose 3/8" X 100'
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
$0.00
Couldn't load pickup availability
Product Description
50 ft. rolls consist of two pieces totaling 50 feet (±10%).• Agency Ratings: SAE 100R17AT
• Fittings Certified: Z-Series only
• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service
• Construction:
– Inner Tube: Nitrile
– Reinforcement: 1 steel braid (-4 through -6); 2 steel braid (-8 through -16)
– Cover: UHMW (Ultra High Molecular Weight)
• Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes:
– Used for high-pressure hydraulic lines on off-road equipment, farm equipment and other high-pressure applications
– Tight minimum bend radius and improved flexibility
– Provides 3,000 PSI working pressure rating for all sizes
– RhinoHide II™ UHMW cover provides exceptional abrasion resistance
Technical Specifications
| Item#: | 20767 08 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R17 |
| Industry Rating | MSHA, Marine Application J1942/1 Hydraulic Service |
| Manufacturer Series Number | H145R |
| Manufacturer Series Name | RhinoHide II |
| I.D. | 1/2 (-8) " |
| Hose O.D. | 11/16 " |
| Working Pressure | 3,000 PSI |
| Burst Pressure | 12,000 PSI |
| Fitting Series | Z Series |
| Bend Radius | 3-1/2 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 1 Steel Braids |
| Hose Cover Material | UHMW Polyethylene |
| Temperature | High |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | -40F to +250F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 17.0 lb |
