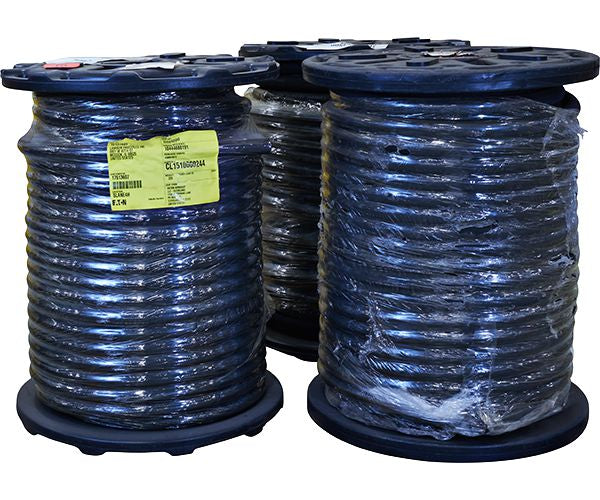

Weatherhead H425 Hydraulic Hose, Neoprene, 2-Steel Braided, 1/2" ID, 7/8" OD, 250' Length, 3500PSI, SAE 100R2
(Pack of
250)
SKU:10392 Item#: 10392
Weatherhead H425 Hydraulic Hose, Neoprene, 2-Steel Braided, 1/2" ID, 7/8" OD, 250' Length, 3500PSI, SAE 100R2
Read MoreFrequently Bought Together
3TR8 Hydraulic Thermoplastic Hose 0.59" x 50'
Item#: 1692572
$0.00
Couldn't load pickup availability
3TR18CT Hydraulic Thermoplastic Hose 0.58" x 50'
Item#: 1692549
$0.00
Couldn't load pickup availability
3TR7N Hydraulic Thermoplastic Hose 0.57" x 250'
Item#: 1692571
$0.00
Couldn't load pickup availability
Spacer Ring Red
Item#: 1555828
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HNBR Green
Item#: KT14447
$0.00
Couldn't load pickup availability
Spacer Ring Yellow/White
Item#: 1555835
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18
Item#: 27202
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 5/8 x 1/2-14
Item#: 27185
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Item#: 27205
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 5/8" x 6'
Item#: 1690526
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 3/4" x 15'
Item#: 1690524
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 3/4" x 100'
Item#: 1690523
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Item#: P85035
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
Item#: 1457513
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
Item#: P85218
$0.00
Couldn't load pickup availability
Product Description
Weatherhead H425 Hydraulic Hose, Neoprene, 2-Steel Braided, 1/2" ID, 7/8" OD, 250' Length, 3500PSI, SAE 100R2Technical Specifications
| Item#: | 10392 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R2 |
| Industry Rating | MSHA Accepted, Marine Application J1942/1 Fuel and Hydraulic, ABS1 |
| Manufacturer Series Number | H425 |
| Manufacturer Series Name | Weatherhead Continuous Length |
| I.D. | 1/2 (-8) " |
| Hose O.D. | 7/8 " |
| Working Pressure | 3500 PSI |
| Burst Pressure | 14000 PSI |
| Fitting Series | Crimp: Z Series, U Series, 430U Series, S Series, Field Attachable: 425N Series |
| Bend Radius | 7 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Neoprene |
| Temperature | Normal |
| Note | Continuous Length |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | -40F to +212F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 120.0 lb |
