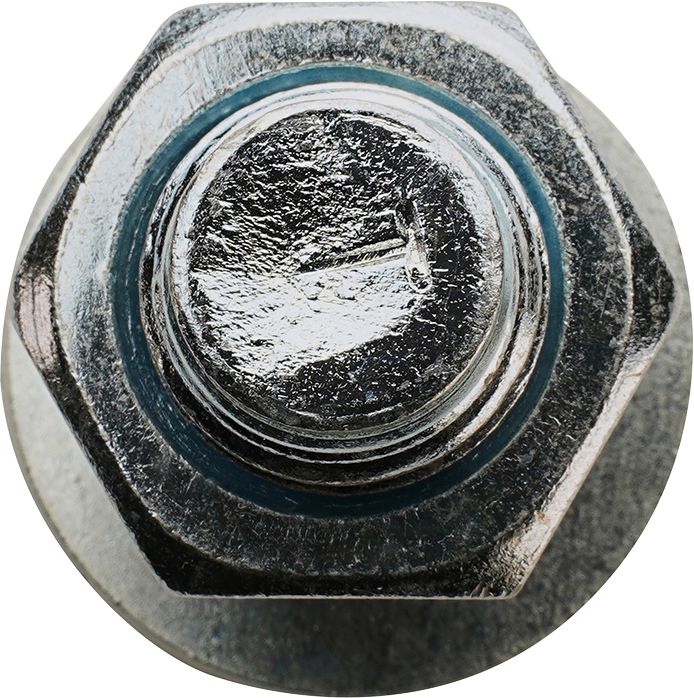

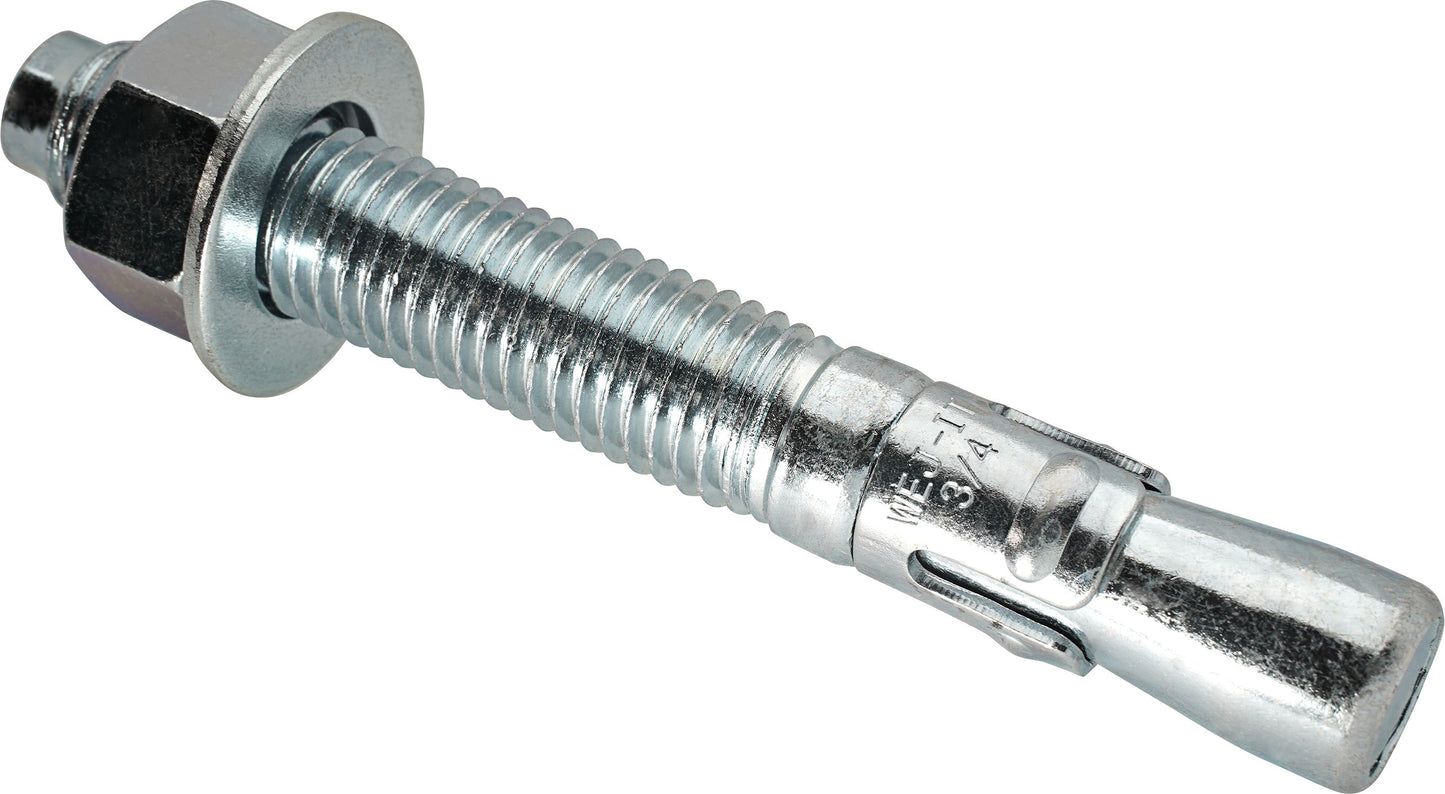

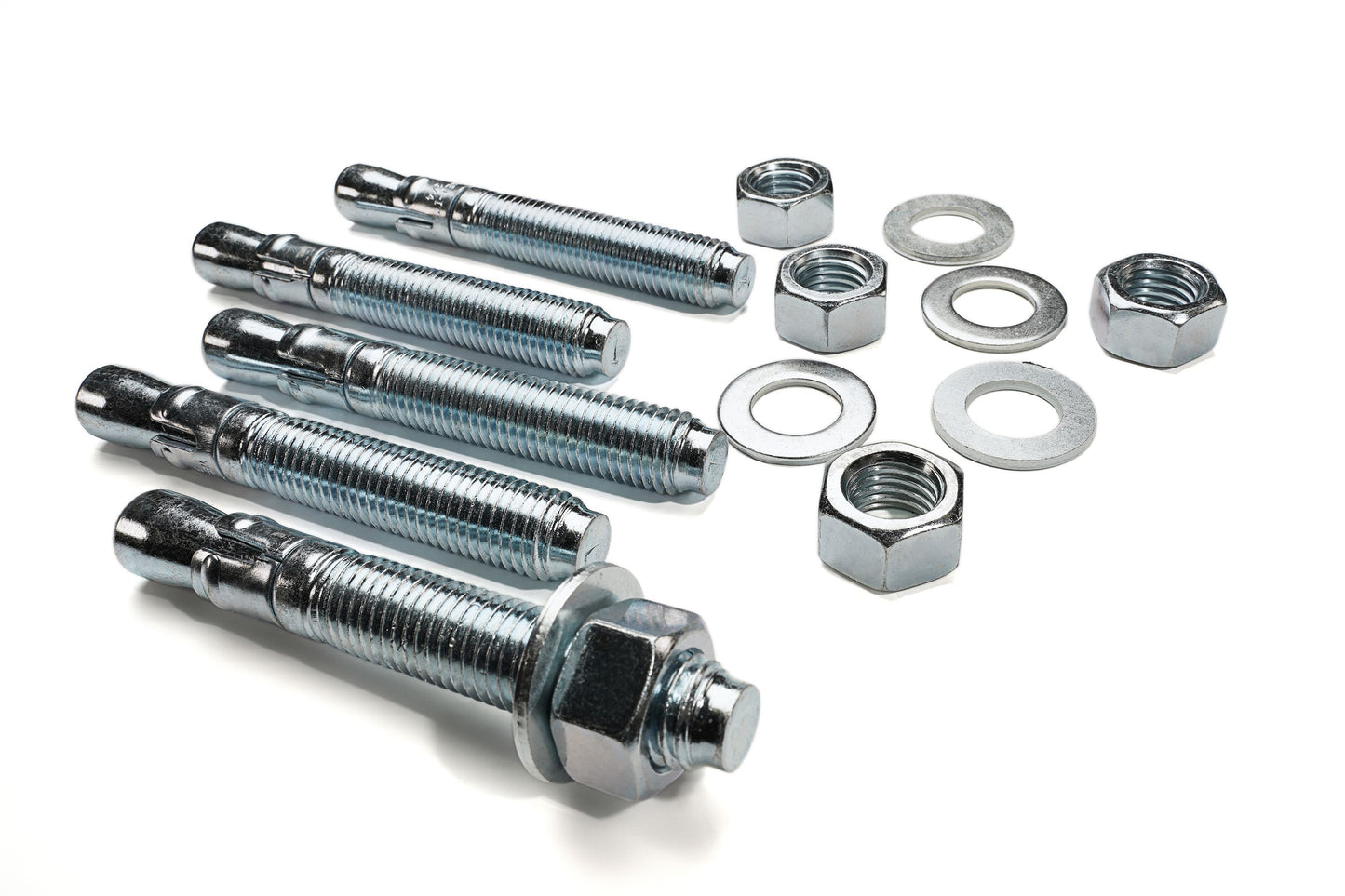

Wedge Type Stud Bolt Anchor Steel 3/4 x 5-1/2"
(Pack of
5.0)
• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Frequently Bought Together
Light-Medium Duty Anchor Assortment 240Pcs
Couldn't load pickup availability
Masonry Anchor Assortment 243Pcs
Couldn't load pickup availability
Wallboard Anchor Assortment 1125Pcs
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 45mm
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Wedge Type Anchor Bolt Steel 1/2 x 2-3/4"
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor SS 3/8 x 2-3/4"
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor SS 5/8 x 4-1/4"
Couldn't load pickup availability
Product Description
• Available in zinc-plated steel and stainless steel1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Technical Specifications
| Item#: | 91609 |
|---|---|
| Diameter | 3/4 " |
| Length | 5-1/2 " |
| Thread Length | 3-1/4 " |
| Drill Size | 3/4 " |
| Material | Carbon Steel |
| Finish | Bright Zinc |
| Type | Wedge Anchor |
| Proof Test Load | 6,800 lb |
| Length Identification Code | H |
| Size | 3/4X5-1/2 " |
| Minimum Embedment | 3-1/4 " |
| UNSPSC #: | 31162101 |
| TAA Compliant: | No |
| Weight: | 3.71 lb |
