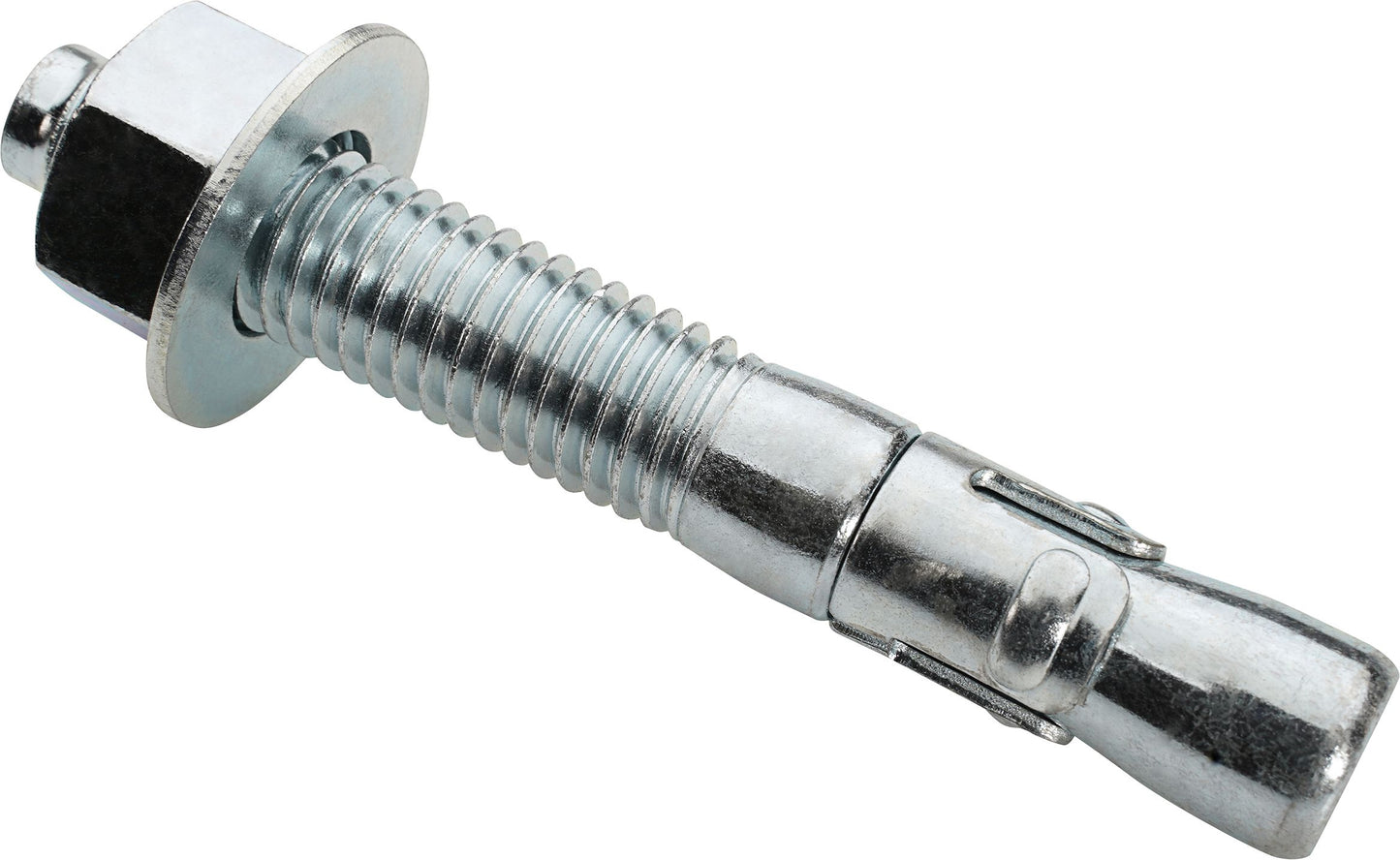

Wedge Type Stud Bolt Anchor, Steel, Zinc Finish, 5/8 x 4-1/4"

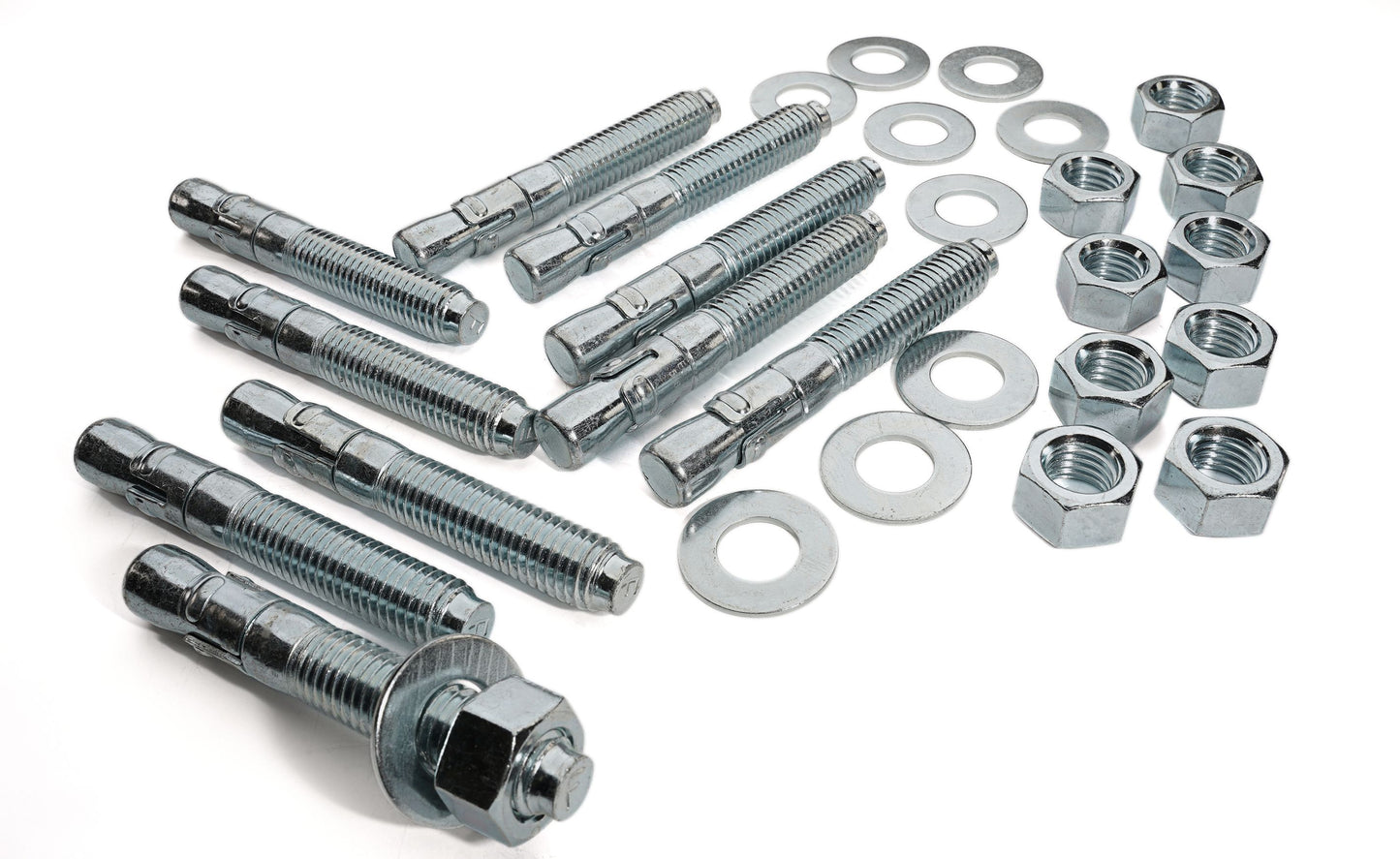

(Pack of
10)
SKU:91607 Item#: 91607
• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Frequently Bought Together
Drop-In Anchor Steel 1/2 x 2"
$0.00
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 5/16 x 1-3/4"
$0.00
Couldn't load pickup availability
Masonry Anchor Phillips Head #14-10 x 2-1/4"
$0.00
Couldn't load pickup availability
Hex Flange Nut Grade 8 Steel M8-1.25
$0.00
Couldn't load pickup availability
Sheet Metal Screw Phillips Truss Head #14 x 3/4"
$0.00
Couldn't load pickup availability
Diamond Grip II Threaded Insert M6-1
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor SS 1/2 x 4-1/4"
$0.00
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor Steel 5/8 x 3-1/2"
$0.00
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor Steel 1/2 x 4-1/4"
$0.00
Couldn't load pickup availability
Product Description
• Available in zinc-plated steel and stainless steel1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Technical Specifications
| Item#: | 91607 |
|---|---|
| Diameter | 5/8 " |
| Length | 4-1/4 " |
| Thread Length | 2-3/8 " |
| Drill Size | 5/8 " |
| Material | Carbon Steel |
| Finish | Bright Zinc |
| Type | Wedge Anchor |
| Proof Test Load | 4,800 lb |

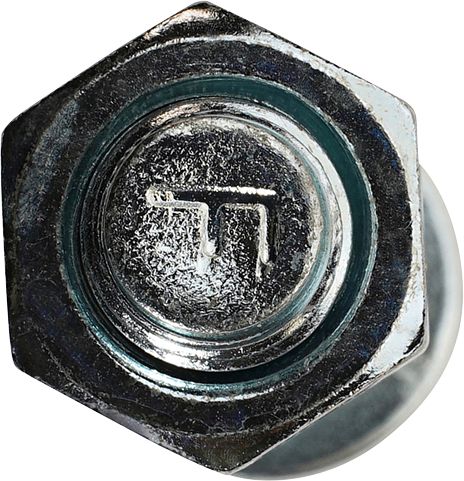

| Length Identification Code | F |
| Size | 5/8X4-1/4 " |
| Minimum Embedment | 2-5/8 " |
| UNSPSC #: | 31162101 |
| TAA Compliant: | No |
| Weight: | 7.25 lb |
