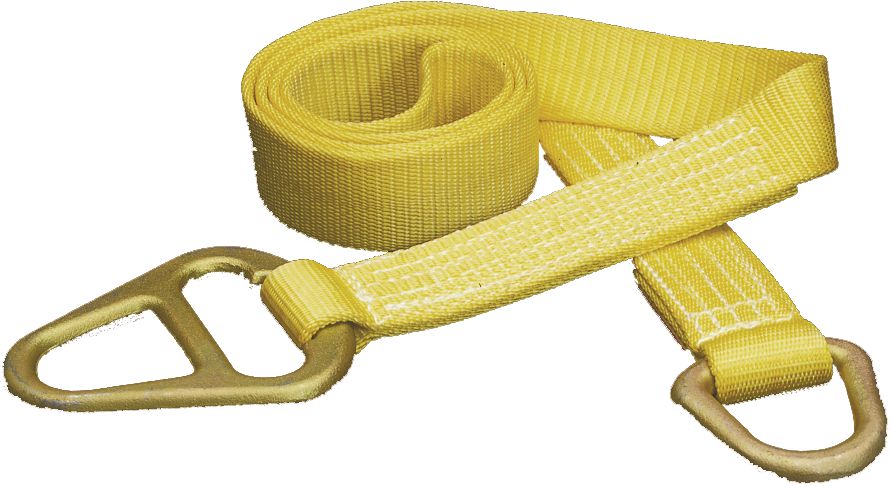

Sling, Nylon, Web, Triangle and Choker, Type 1, 2" x 8', V-3200 lb, C-2400 lb, B-6400 lb
(Pack of
1)
SKU:90305 Item#: 90305
• The forged alloy steel attachments on either end extend sling life by resisting wear
• Most commonly used as a choker hitch but can also be used in basket and vertical hitches
Do not exceed rated capacities. Sling tension increases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°.
Frequently Bought Together
Swivel Eye Bolt Snap, 3/8" Eye Size, 2-15/16" Length, Zinc Finish
Couldn't load pickup availability
Cold Shut 3/16" Body 525 Lb Safe Load
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x19, 3/16", 4,200 lbs Breaking Strength
Couldn't load pickup availability
Rear Bumper Cover Retainer Plastic 18mm
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
1/2" x 6' Type DOG Gr. 80 Chain Sling
Couldn't load pickup availability
9/32" x 8' Type DOG Gr. 80 Chain Sling
Couldn't load pickup availability
3/8" x 4' Type TOS Gr. 80 Chain Sling
Couldn't load pickup availability
Tuff-Edge® Web Sling, Polyester, Silver, 12' Length
Couldn't load pickup availability
Tuff-Edge® Web Sling, Polyester, Silver, 6' Length
Couldn't load pickup availability
Tuff-Edge® Web Sling, Polyester, Silver, 2' Length
Couldn't load pickup availability
Product Description
• The forged alloy steel attachments on either end extend sling life by resisting wear• Most commonly used as a choker hitch but can also be used in basket and vertical hitches
Do not exceed rated capacities. Sling tension increases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°.
Technical Specifications
| Item#: | 90305 |
|---|---|
| Style | Triangle & Choker |
| Type | Type 1 |
| Material | Nylon |
| Length | 8 ft |
| Width | 2 " |
| Thickness | 3/16 " |
| Ply | 1 |
| Rated Capacity: Vertical | 3,200 lb |
| Rated Capacity: Choker | 2,400 lb |
| Rated Capacity: Basket | 6,400 lb |
| Color | Yellow |
| Maximum Temperature | 200 °F |
| UNSPSC #: | 24101611 |
| TAA Compliant: | Yes |
| Weight: | 3.82 lb |
