Home Material Handling Wire Rope Accessories Thimbles/Sleeves Wire Rope Sleeve, 1/16", Copper, Tin Plated
Accessories

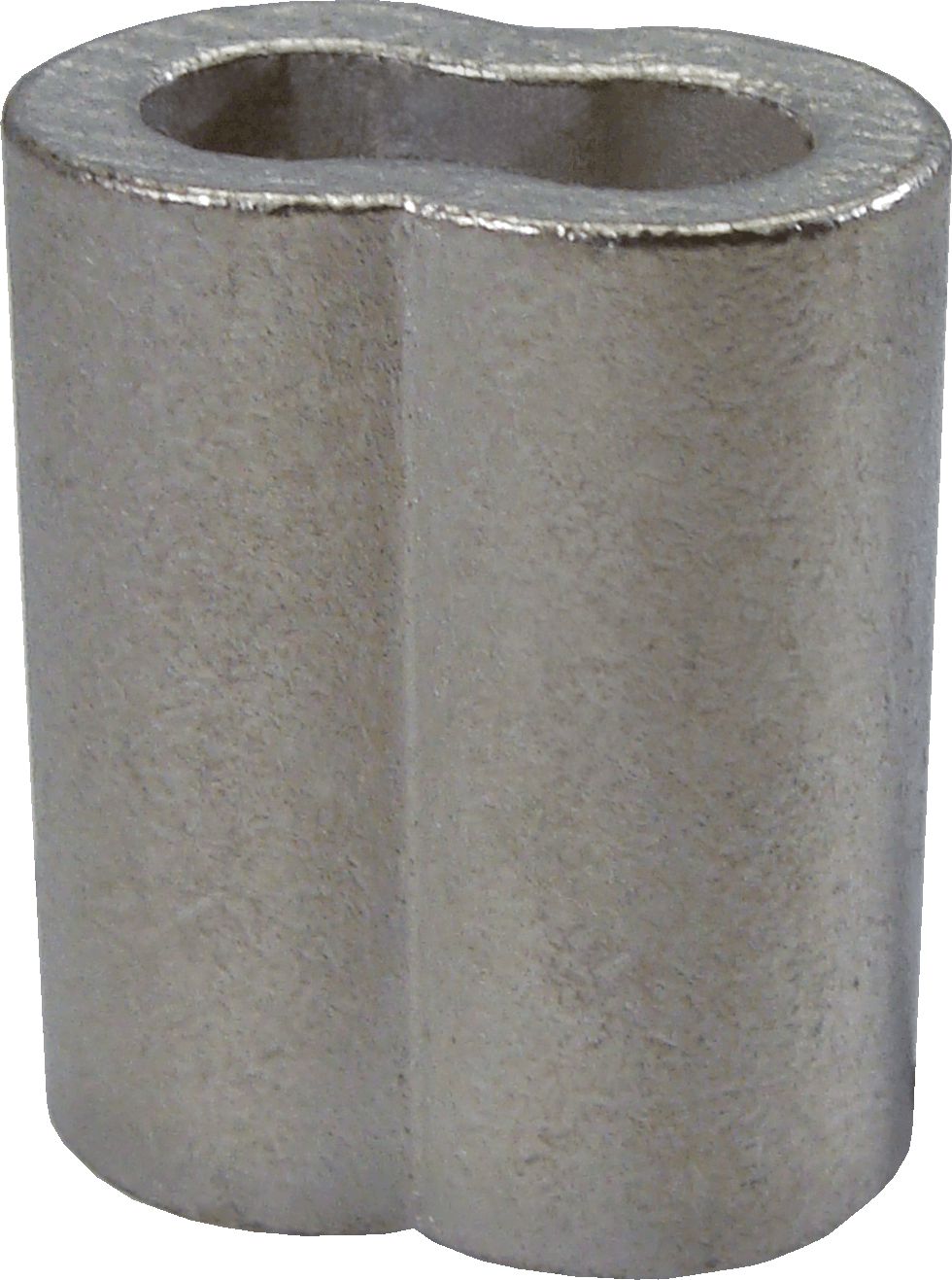

Wire Rope Sleeve, 1/16", Copper, Tin Plated
(Pack of 50)

Item#: 1440352

Loos & Co. Inc.

Copper oval sleeves are capable of supporting a greater load than the rated breaking strength of the cable to which they are attached when properly applied with Locoloc® Hand Swager to bare cable on 3x7, 7x7, 7x19 and 6x19 constructions.
• Meets MS51844

Read More
Check Availability

Frequently Bought Together


Wire Rope, Steel, Nylon Coated, 7x19, 1/4", 7,000 lbs Breaking Strengt

Item#: 1439352

Wire Rope, Steel, Bare, 7x19, 1/4", 7,000 lbs Breaking Strength

Item#: 1439203

Wire Rope, Steel, Nylon Coated, 7x19, 1/8", 2,000 lbs Breaking Strengt

Item#: 1439246

Rope Ratchet 150 Lb Safe Load 1/4" x 10'

Item#: 54521

Eye Bolt with Nut 1/4" x 2" Long

Item#: 14466

Caster Swivel with Brake Polyurethane Wheel

Item#: 1588622

Bumper and Wheel Well Liner Push-Type Retainer

Item#: 1404768

Fender Apron Drive Rivet 8mm Hole

Item#: 1365427

Cowl Bumper Fender Liner/Engine Under Cover Rivet

Item#: P86111

Wire Rope Sleeve, 1/16", Copper, Zinc Plated

Item#: 1440298

Wire Rope Sleeve, 3/16", Aluminum

Item#: 1440293

Wire Rope Sleeve, 3/64", Copper, Zinc Plated

Item#: 1440222

Wire Rope, Steel, Nylon Coated, 7x19, 1/4", 7,000 lbs Breaking Strengt

Item#: 1439352

Wire Rope, Steel, Bare, 7x19, 1/4", 7,000 lbs Breaking Strength

Item#: 1439203

Wire Rope, Steel, Nylon Coated, 7x19, 1/8", 2,000 lbs Breaking Strengt

Item#: 1439246

Product Description

Copper oval sleeves are capable of supporting a greater load than the rated breaking strength of the cable to which they are attached when properly applied with Locoloc® Hand Swager to bare cable on 3x7, 7x7, 7x19 and 6x19 constructions.
• Meets MS51844

Technical Specifications

Item#: 1440352
Manufacturer Model #: SL2-2TP
Type Sleeve
Material Copper
Finish Tin Plated
Cable Diameter 1/16 "
Inside Width 3/32 "
Width 11/64 "
Height 1/4 "
Length 3/8 "
Number of Crimps 2
UNSPSC #: 31162812
TAA Compliant: Yes
Weight: 0.13 lb
