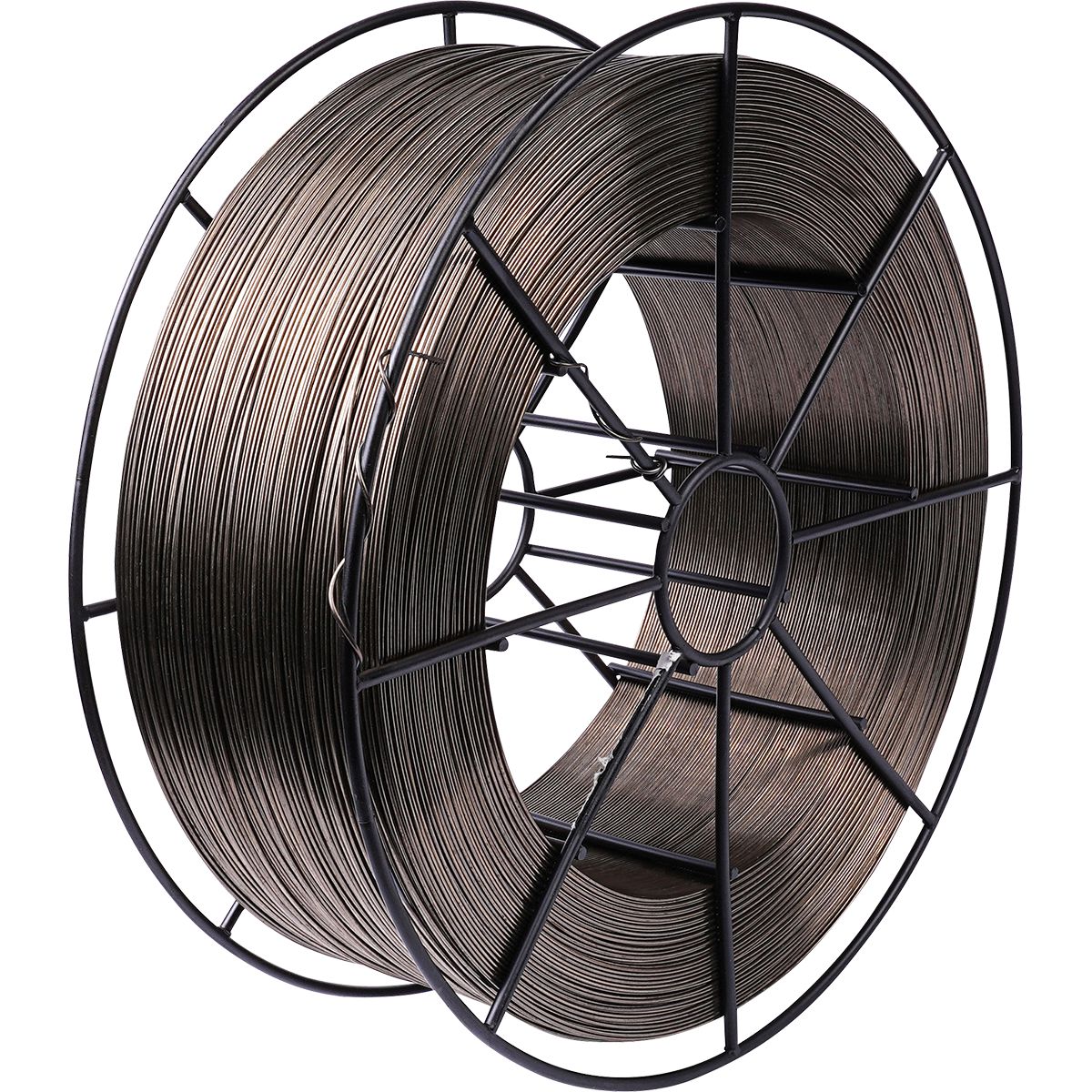

Xl Gold Dissimilar Metals Flux Core Mig Wire Tensile 122000 Gas 98% Ar 2%Co2 75Ar 2%Co2 Polarity Dcep 22-28Rc
(Pack of
33)
SKU:EG60380062 Item#: EG60380062
• Designed for welding all steels— manganese, stainless, AR plate, high-carbon and dissimilar combinations
• Superior welding speed — three times faster than stick welding and over 1-3/4 times faster than solid wires
• High recovery rate — over 90% deposition efficiency
• Low heat input means less distortion and better tolerance control
• All-position
• Self-lifting slag
• Tensile strengt: as deposited 122,000 psi/841 MPa
• Yield strength: as deposited 92,000 psi/634 MPa
• Elongation: 25%
• Hardness: As deposited 22-28Rc/work-hardened 31-37Rc
• Service temperature: 500°F/260°C
• Gas: 100% CO2 or 75% Ar/25% CO2 or 98% Ar/2% O2
• Current: DCEP (DC+)
Frequently Bought Together
100 Blue Lightning Tough Duplex Alloy 1/8
$0.00
Couldn't load pickup availability
333 Dissimilar Steel MIG Welding Wire 0.045"
$0.00
Couldn't load pickup availability
333 Dissimilar Steel Stick Rod Electrode 1/8"
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Plastic Outside Corner No Wave Welder Staple
$0.00
Couldn't load pickup availability
Plastic Outside Corner Small Wave Welder Staple
$0.00
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035" 33lb
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .062" 33lb
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035" 2lb
$0.00
Couldn't load pickup availability
3/4" X 24" Pinch Pry Bar
$0.00
Couldn't load pickup availability
Met 24mm, Cross-Torque Wrench
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 3/8" Drive, 8pc
$0.00
Couldn't load pickup availability
3/4" X 24" Pinch Pry Bar
$0.00
Couldn't load pickup availability
Met 24mm, Cross-Torque Wrench
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 3/8" Drive, 8pc
$0.00
Couldn't load pickup availability
Product Description
• Designed for welding all steels— manganese, stainless, AR plate, high-carbon and dissimilar combinations• Superior welding speed — three times faster than stick welding and over 1-3/4 times faster than solid wires
• High recovery rate — over 90% deposition efficiency
• Low heat input means less distortion and better tolerance control
• All-position
• Self-lifting slag
• Tensile strengt: as deposited 122,000 psi/841 MPa
• Yield strength: as deposited 92,000 psi/634 MPa
• Elongation: 25%
• Hardness: As deposited 22-28Rc/work-hardened 31-37Rc
• Service temperature: 500°F/260°C
• Gas: 100% CO2 or 75% Ar/25% CO2 or 98% Ar/2% O2
• Current: DCEP (DC+)
Technical Specifications
| Item#: | EG60380062 |
|---|---|
| Welding Process | MIG |
| Type | Flux-Cored Wire |
| Diameter | .062 " |
| Tensile Strength | 122,000 PSI |
| Yield Strength | 92,000 PSI |
| Elongation | 25 % |
| Hardness | 31-37 HRC |
| Shielding Gas | 75% Ar/25% CO2 or 100% CO2 |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 37.67 lb |
