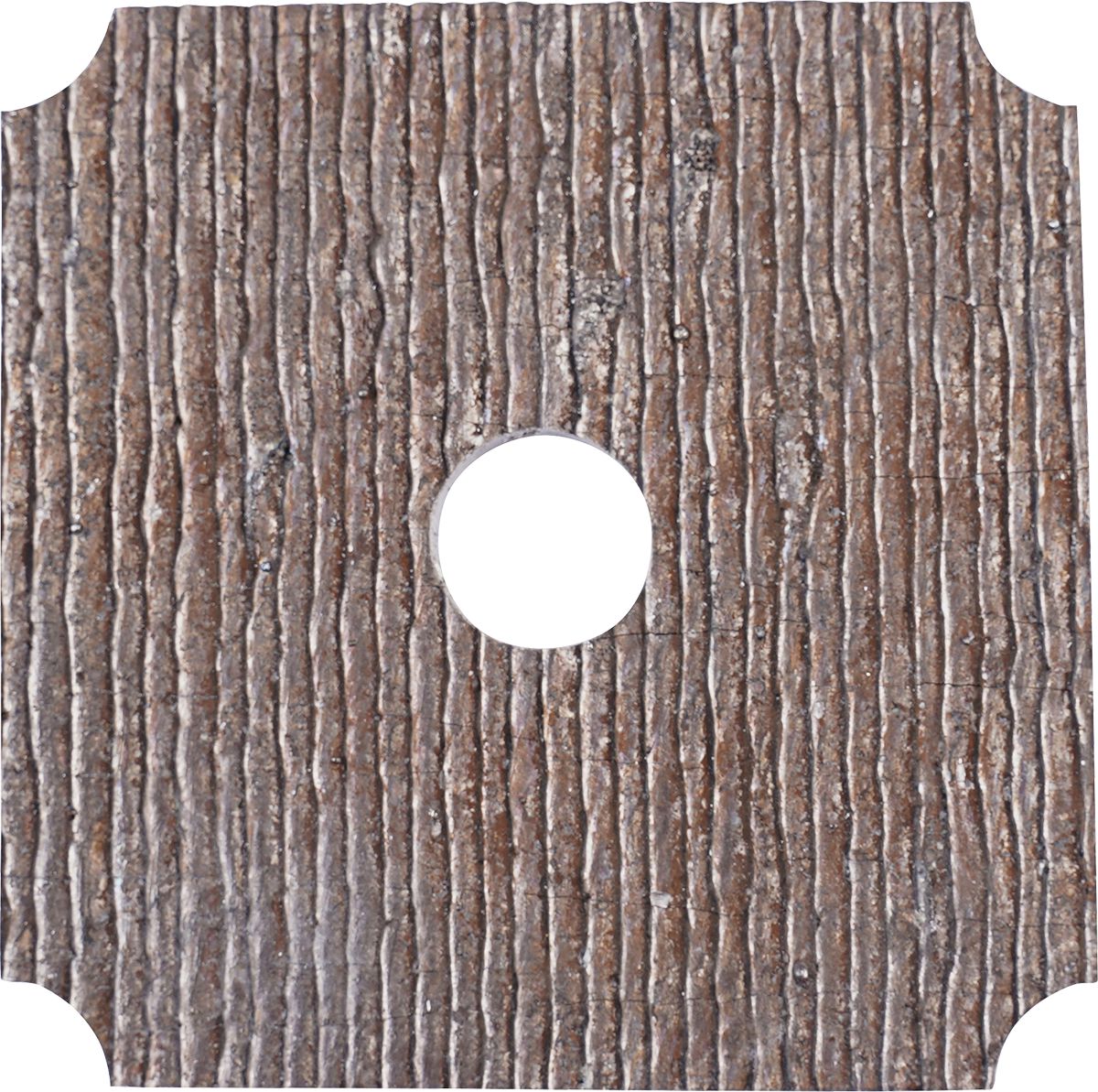

Cryogeniclly Treated Carbide Overlay Plates Light Weight Hardness 66-68 Rc Service Temperature Up To 400F With Plug Hole
(Pack of
10)
SKU:EG09910404 Item#: EG09910404
Protects equipment without the added weight and capacity reduction of standard carbide overlay plates. Lasts up to 13 times longer than standard wearplates so it saves a tremendous amount of maintenance labor. Thin profile even allows it to be formed to contoured surfaces – including pipe as small as 2.5" diameter.
• Economical – Long life extends maintenance intervals to reduce labor expense
• Extremely Wear Resistant – Lasts up to 13 times longer than AR-400
• Lightweight – Reduces added weight for hardfacing by 5 times over standard carbide overlay plate
• Formable — Thin plates can be cut or contoured to small diameters
• Surface Hardness: 66-68Rc
• ASTM G65 Abrasion Test: 19.1298mm³ vol. loss
• Base Plate Thickness: 5/64"
• Carbide Hardfacing Thickness: 1/8"
• Service Temperature: Up to 400°F/(204°C)
Frequently Bought Together
Wheel Opening Drive Rivet Aluminum 5/32"
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 17mm Washer Steel
Couldn't load pickup availability
Front License Plate to Bumper Cover Split Rivet
Couldn't load pickup availability
1/4 on 1/4 Dimension I Single Pass Overlay
Couldn't load pickup availability
1/8 on 1/4 Dimension I Single Pass Overlay
Couldn't load pickup availability
201 Rectangular Wear Disc Plate 3 x 6 x 5/32"
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder 3/16X3X4
Couldn't load pickup availability
Heavy Duty Plastic Welding Rod Protecting Tube
Couldn't load pickup availability
Welding Container Drawer 19 - Welding PPE
Couldn't load pickup availability
Product Description
Protects equipment without the added weight and capacity reduction of standard carbide overlay plates. Lasts up to 13 times longer than standard wearplates so it saves a tremendous amount of maintenance labor. Thin profile even allows it to be formed to contoured surfaces – including pipe as small as 2.5" diameter.• Economical – Long life extends maintenance intervals to reduce labor expense
• Extremely Wear Resistant – Lasts up to 13 times longer than AR-400
• Lightweight – Reduces added weight for hardfacing by 5 times over standard carbide overlay plate
• Formable — Thin plates can be cut or contoured to small diameters
• Surface Hardness: 66-68Rc
• ASTM G65 Abrasion Test: 19.1298mm³ vol. loss
• Base Plate Thickness: 5/64"
• Carbide Hardfacing Thickness: 1/8"
• Service Temperature: Up to 400°F/(204°C)
Technical Specifications
| Item#: | EG09910404 |
|---|---|
| Type | Carbide Overlay Plate |
| Total Thickness | 13/64 " |
| Plate Width | 4 " |
| Plate Length | 4 " |
| Size | 4" x 4" x 13/64 " |
| UNSPSC #: | 30102201 |
| TAA Compliant: | Yes |
| Weight: | 5.83 lb |
