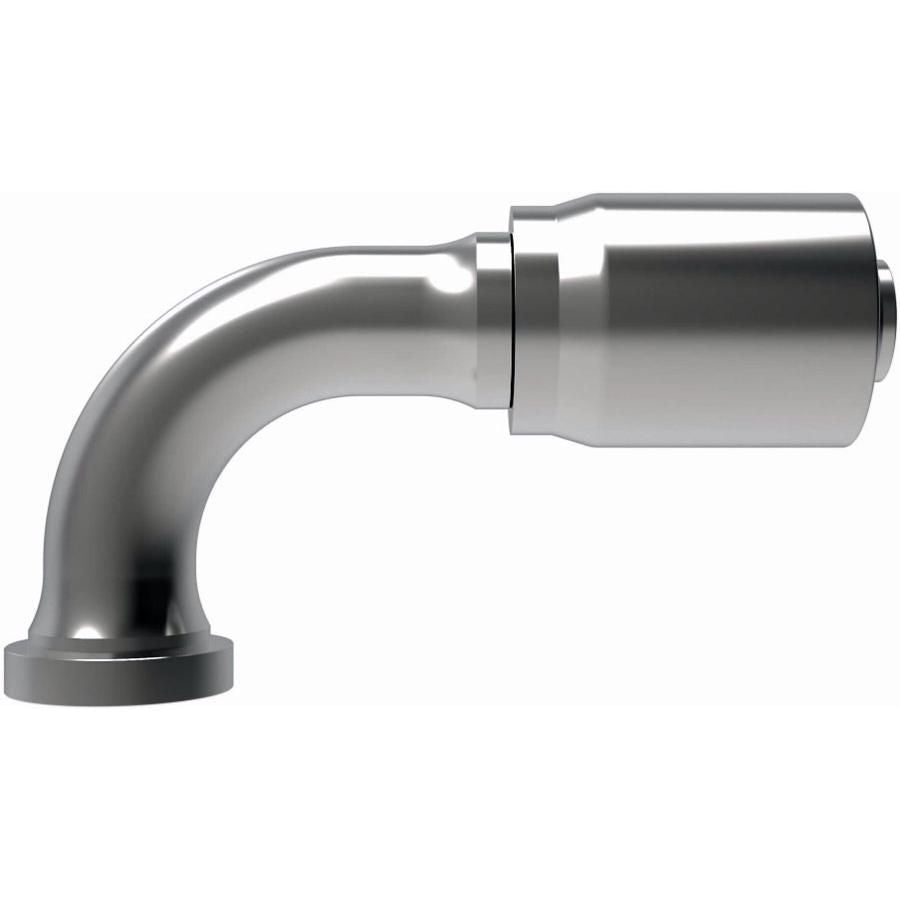

Z Series Crimp-On Elbow, Carbon Steel, Split Flange, 90°, 5/8" (-10) x 34mm
(Pack of
1)
SKU:16922 Item#: 16922
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
08Z-BC08- Hose End (perm) 1S/1R Str Male STC
Item#: 1172748
$0.00
Couldn't load pickup availability
06Z-BC66- Hose End (perm) 1S/1R 90 D Male STC
Item#: 1174483
$0.00
Couldn't load pickup availability
06Z-BC06- Hose End (perm) 1S/1R Str Male STC
Item#: 1172945
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 7/32 x 11/32 x 1/16"
Item#: P27035
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 1/8 x 1/4 x 1/16"
Item#: P27020
$0.00
Couldn't load pickup availability
Spacer Ring Black
Item#: 1555862
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose assembly w/ Industrial safety coupler
Item#: 1585088
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Item#: KT11951
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"
Item#: P28920M01
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Item#: KT14296
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Item#: KT13763
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Item#: P27685
$0.00
Couldn't load pickup availability
Product Description
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.Technical Specifications
| Item#: | 16922 |
|---|---|
| Manufacturer Model #: | 1A10KSB10 |
| Manufacturer Series Number | Z Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 5/8 (-10) " |
| Dash Size | -10 |
| Gender | Split Flange |
| Fitting End Style | Split Flange - Metric (Komatsu, Linkbelt) |
| Fitting End Type | Metric |
| Fitting Angle | 90 ° |
| Fitting Dimension B (Working End) | 34 (1.33) |
| Flange Diameter | 1.35 " |
| Aeroquip No. | 1A10KSB10 |
| Weatherhead No. | 10Z-G99 |
| Size | (-10)X(-10) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.45 lb |
