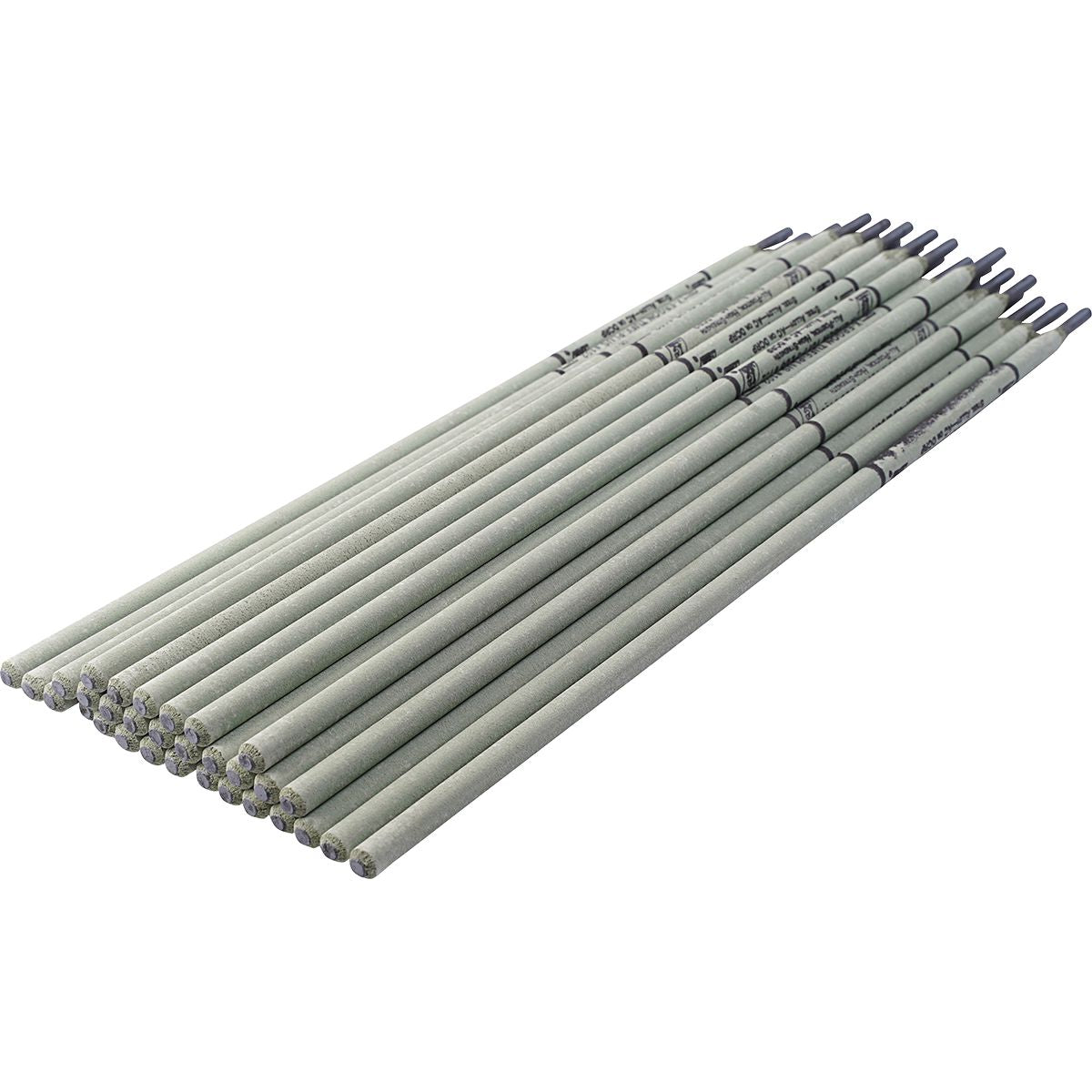

102 High Strength Steel Electrode 1/4
(Pack of
5.0)
A torch-cuttable high-strength steel electrode designed to produce crack-resistant welds on a wide range of steels including HSLA steels.
• High Impact Resistance – Handles heavy loads even at sub-zero temperatures
• Excellent Yield Strength – Designed for applications where stress and vibration are a problem
• Excellent for Padding and Buildup – Can be used as an underlay for hardfacing
• Spray Arc Type Transfer – Produces a smooth, finely rippled, uniform deposit
• Low-Hydrogen Coating – Reduces under bead cracking
• Improved AC Characteristics – Stable arc allows better welder control
• Tensile Strength: 115,000 PSI/793 Mpa
• Yield Strength: 104,000 PSI/717 Mpa
• Hardness: 21 Rc
• Elongation: 26%
• Impact Strength (Charpy): -40°F/-40°C 49 ft.-lbs.
• Machinability: Excellent
• Current: DCEP (DC+) or AC
Frequently Bought Together
106 Mild Steel All Purpose Electrode 1/16
Couldn't load pickup availability
664 Self Shielding Mild Steel Flux Core Mig Wire .035X10LB
Couldn't load pickup availability
660 Mild Steel Flux Core Low Hydrogen Mig Wire 1/16X33Lb
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
High-Tech Seam Sealer Clear 5fl.oz
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Cronatron Welding Guide
Couldn't load pickup availability
Heat Stick 400F Degrees
Couldn't load pickup availability
710 Stainless Steel Electrode 3/32"
Couldn't load pickup availability
21008 Plasma Cutting Tip
Couldn't load pickup availability
Oxy-Therm Battery 12V
Couldn't load pickup availability
192050 Plasma Cutting Shield Cup
Couldn't load pickup availability
Product Description
A torch-cuttable high-strength steel electrode designed to produce crack-resistant welds on a wide range of steels including HSLA steels.• High Impact Resistance – Handles heavy loads even at sub-zero temperatures
• Excellent Yield Strength – Designed for applications where stress and vibration are a problem
• Excellent for Padding and Buildup – Can be used as an underlay for hardfacing
• Spray Arc Type Transfer – Produces a smooth, finely rippled, uniform deposit
• Low-Hydrogen Coating – Reduces under bead cracking
• Improved AC Characteristics – Stable arc allows better welder control
• Tensile Strength: 115,000 PSI/793 Mpa
• Yield Strength: 104,000 PSI/717 Mpa
• Hardness: 21 Rc
• Elongation: 26%
• Impact Strength (Charpy): -40°F/-40°C 49 ft.-lbs.
• Machinability: Excellent
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG10210000 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 1/4 " |
| Tensile Strength | 115,000 PSI |
| Yield Strength | 104,000 PSI |
| Elongation | 26 % |
| Base Metal | High Strength Low-Alloy Steel |
| Hardness | 21 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.66 lb |
