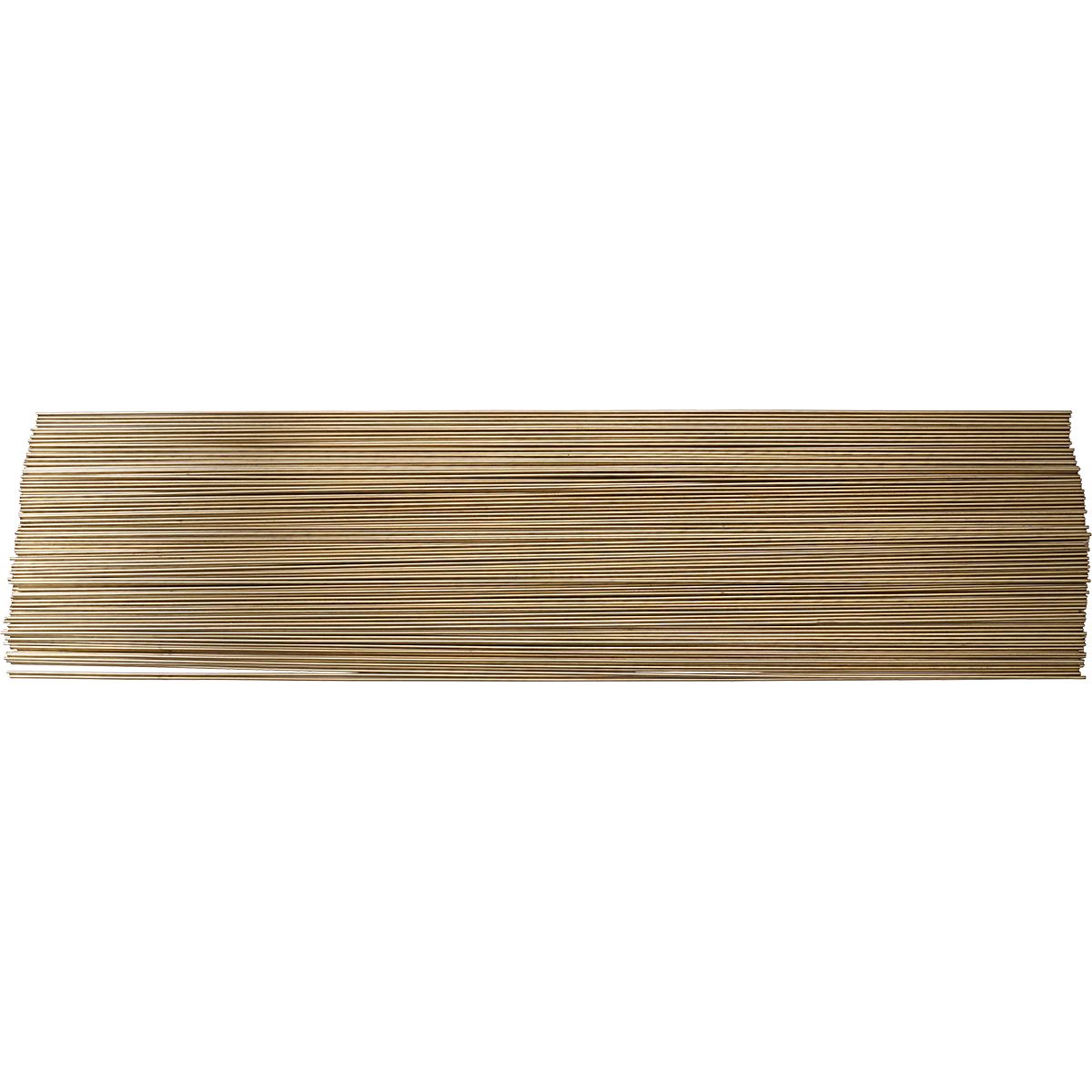

201 The Elite Bare Brazing Alloy 1/16X18
(Pack of
5.0)
Flux-coated brazing alloy with high tensile strength and exceptional ductility for joining all types of metals.
• High-Strength Joints – For dependable repairs
• High Capillarity – Thin flowing action allows complete joint fills
• Low Temperature – Easy to use for most maintenance applications
• Narrow Plastic Range – Allows control of the heat input to build up, shape or flow into joints
• Versatile – Joins steel, copper, brass, bronzes, cast iron, tungsten carbide, refractory metals and nickel alloys
• Cadmium free and low fume coating
• Tensile Strength: Up to 95,000 PSI/655 Mpa
• Machinability: Excellent
• Plastic Range: Approximately 30°F/17°C
• Working Temp: Approximately 1690°F/921°C
• Electrical Conductivity: 8% IACS
• Flux Coating: Blue
Frequently Bought Together
54 Aluminum Flux Cored Brazing Rod 1/8"
Couldn't load pickup availability
22 Cast Iron Bare Brazing Rod 3/16"
Couldn't load pickup availability
30 Copper and Steel Flux Coated Brazing Rod 3/32"
Couldn't load pickup availability
44 Silver Bare Brazing Rod 3/32"
Couldn't load pickup availability
44 Silver Bare Brazing Rod 1/16"
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
Couldn't load pickup availability
Welding Container Drawer 31 - 4-1/2 Right Angle Grinder Abrasives
Couldn't load pickup availability
Welding Container Drawer 21 - Miller MIG Consumables for M-Series & M25 Gun
Couldn't load pickup availability
Welding Container Drawer 18 - Stick Welding Cast Iron Repair & E6010
Couldn't load pickup availability
Product Description
Flux-coated brazing alloy with high tensile strength and exceptional ductility for joining all types of metals.• High-Strength Joints – For dependable repairs
• High Capillarity – Thin flowing action allows complete joint fills
• Low Temperature – Easy to use for most maintenance applications
• Narrow Plastic Range – Allows control of the heat input to build up, shape or flow into joints
• Versatile – Joins steel, copper, brass, bronzes, cast iron, tungsten carbide, refractory metals and nickel alloys
• Cadmium free and low fume coating
• Tensile Strength: Up to 95,000 PSI/655 Mpa
• Machinability: Excellent
• Plastic Range: Approximately 30°F/17°C
• Working Temp: Approximately 1690°F/921°C
• Electrical Conductivity: 8% IACS
• Flux Coating: Blue
Technical Specifications
| Item#: | EG20171600 |
|---|---|
| Welding Process | Brazing |
| Type | Flux-Coated Brazing Rod |
| Diameter | 1/16 " |
| Length | 18 " |
| Tensile Strength | 95,000 PSI |
| Color | Blue |
| UNSPSC #: | 23271804 |
| TAA Compliant: | Yes |
| Weight: | 6.26 lb |
