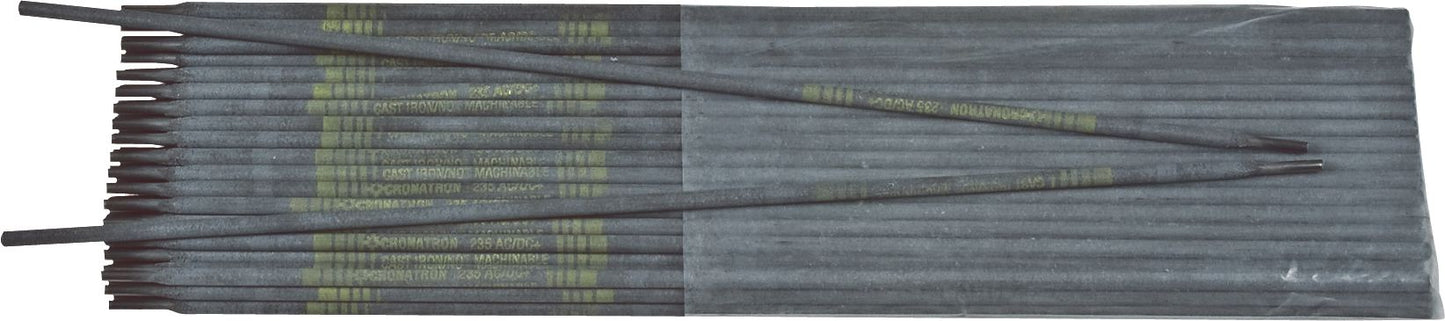

235 Cast Iron Stick Rod Electrode, Flux Coated, 80 to 120 Amps, DCSP Polarity, High Strength Welds, 1/8"
(Pack of
5)
SKU:CW1037 Item#: CW1037
All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Iron-adding
Tensile Strength: 60,000 PSIPolarity: AC or DC Reverse
235 is specifically formulated for welding on burned, rusty, corroded or otherwise contaminated cast iron parts not requiring machining.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
130 Hpm Cast Iron Machinable Electrode 3/32
Couldn't load pickup availability
211 Cast Iron Stick Rod Electrode 3/32"
Couldn't load pickup availability
211 Cast Iron Stick Rod Electrode 1/8"
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .062" 33lb
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035" 2lb
Couldn't load pickup availability
Flint For Spring Loaded Trigger Torch Lighter
Couldn't load pickup availability
192053 Plasma Cutting Drag Shield
Couldn't load pickup availability
9-6506 Plasma Cutting Electrode
Couldn't load pickup availability
Oxy-Therm Collet 3/8"
Couldn't load pickup availability
Product Description
All-position welding for any type of weldable cast iron repair and cast iron to steel.Superior Advantages
• High strength welds
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Iron-adding
Tensile Strength: 60,000 PSIPolarity: AC or DC Reverse
235 is specifically formulated for welding on burned, rusty, corroded or otherwise contaminated cast iron parts not requiring machining.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.
Technical Specifications
| Item#: | CW1037 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 1/8 " |
| Tensile Strength | 60,000 PSI |
| Base Metal | Cast Iron |
| Polarity | DCSP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.24 lb |
