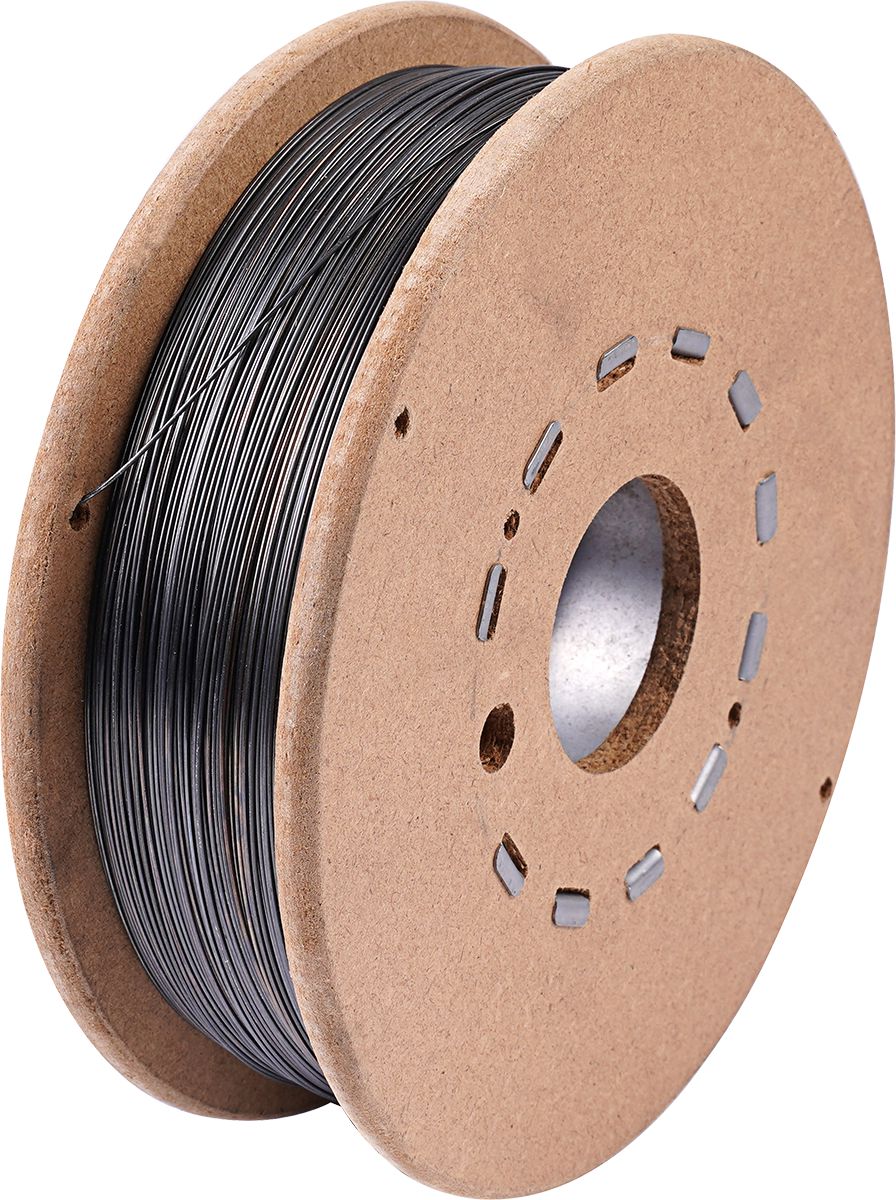

631Cast-Iron Flux Core Wire Desingned To Weld All Grades Of Cast Iron/Duel Sheiled Wire/Gas 98%Ar 2%Co2 Polarity Dc+Tensile 73000
(Pack of
11)
SKU:EG63140045 Item#: EG63140045
Cast-Weld FC is a high-deposition alloy for repairing, joining and rebuilding cast iron. It provides almost twice the welding speed of conventional cast iron (stick) electrodes. It has excellent welding characteristics and almost no spatter. Cast-Weld FC is designed for maintenance welding applications and can be used to weld cast iron to steel, stainless steel and other ferrous alloys. It creates a smaller heat-affected zone than standard cast iron welding electrodes and helps to eliminate stresses that lead to failure. Welds can be made pass-over-pass without chipping slag.
• Weld all grades of weldable cast iron All-position
• High deposition saves time and money
• Easy slag removal
• Wets out even on dirty cast iron
• Machinable deposits
• High-strength
• Tensile strength: 73,000 psi/503 MPa
• Elongation: 12%
• Hardness: 98 Rb
• Machinability: Good
• Color match: Good
• Current: DCEP
• Gas:- 98% Ar/2% O2: Excellent- 95% Ar/5% O2: Excellent- 95% Ar/5% CO2: Good- 92% Ar/8% CO2: Good- 100% Argon: Fair, doesn’t wet out readily- 75% Ar/25% CO2: Higher spatter
Frequently Bought Together

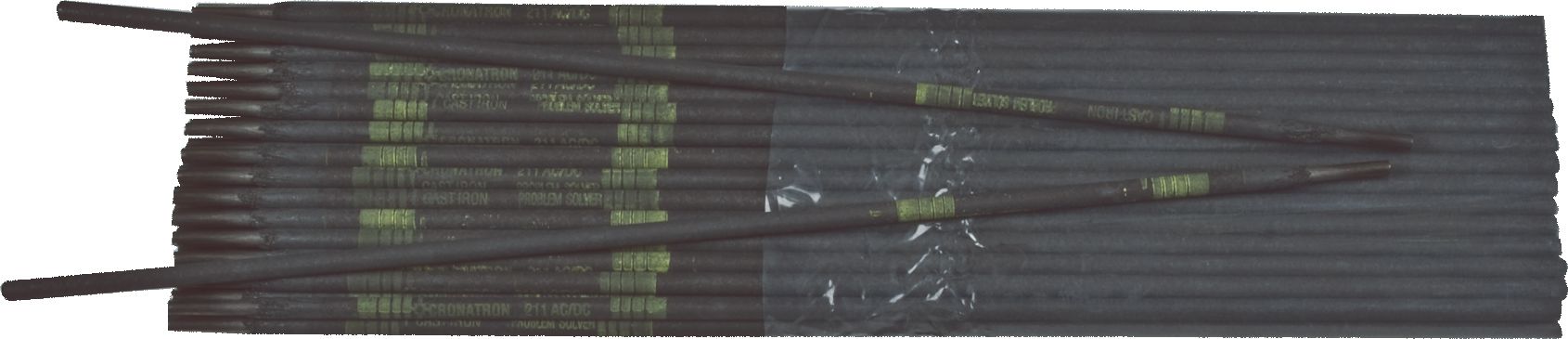

131 Cast-Weld Special Purpose Cast Iron Electrode 1/8
Couldn't load pickup availability
889 Cast Iron Stick Rod Electrode 1/8"
Couldn't load pickup availability
130T Machinable Cast Iron Tig Alloy 1/16X36
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
3/8 on 3/8 Dimension I Double Pass Overlay
Couldn't load pickup availability
Industrial Graphite Rod 1 x 12"
Couldn't load pickup availability
1/4 on 1/4 Dimension I Double Pass Overlay
Couldn't load pickup availability
8-7500 Plasma Cutting Shield Cup
Couldn't load pickup availability
Oxy-Therm Striker Plate
Couldn't load pickup availability
192053 Plasma Cutting Drag Shield
Couldn't load pickup availability
Product Description
Cast-Weld FC is a high-deposition alloy for repairing, joining and rebuilding cast iron. It provides almost twice the welding speed of conventional cast iron (stick) electrodes. It has excellent welding characteristics and almost no spatter. Cast-Weld FC is designed for maintenance welding applications and can be used to weld cast iron to steel, stainless steel and other ferrous alloys. It creates a smaller heat-affected zone than standard cast iron welding electrodes and helps to eliminate stresses that lead to failure. Welds can be made pass-over-pass without chipping slag.• Weld all grades of weldable cast iron All-position
• High deposition saves time and money
• Easy slag removal
• Wets out even on dirty cast iron
• Machinable deposits
• High-strength
• Tensile strength: 73,000 psi/503 MPa
• Elongation: 12%
• Hardness: 98 Rb
• Machinability: Good
• Color match: Good
• Current: DCEP
• Gas:- 98% Ar/2% O2: Excellent- 95% Ar/5% O2: Excellent- 95% Ar/5% CO2: Good- 92% Ar/8% CO2: Good- 100% Argon: Fair, doesn’t wet out readily- 75% Ar/25% CO2: Higher spatter
Technical Specifications
| Item#: | EG63140045 |
|---|---|
| Welding Process | Flux-Core Arc Welding |
| Type | Flux-Cored Wire |
| Diameter | .045 " |
| Base Metal | Cast Iron |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 12.05 lb |
