263 Low Temperature Cadium Free Easy Flowing Silver Alloy High Strength Tensile 70000 19.4% Iacs 22% Elongation
(Pack of
1)
SKU:EG26370001 Item#: EG26370001

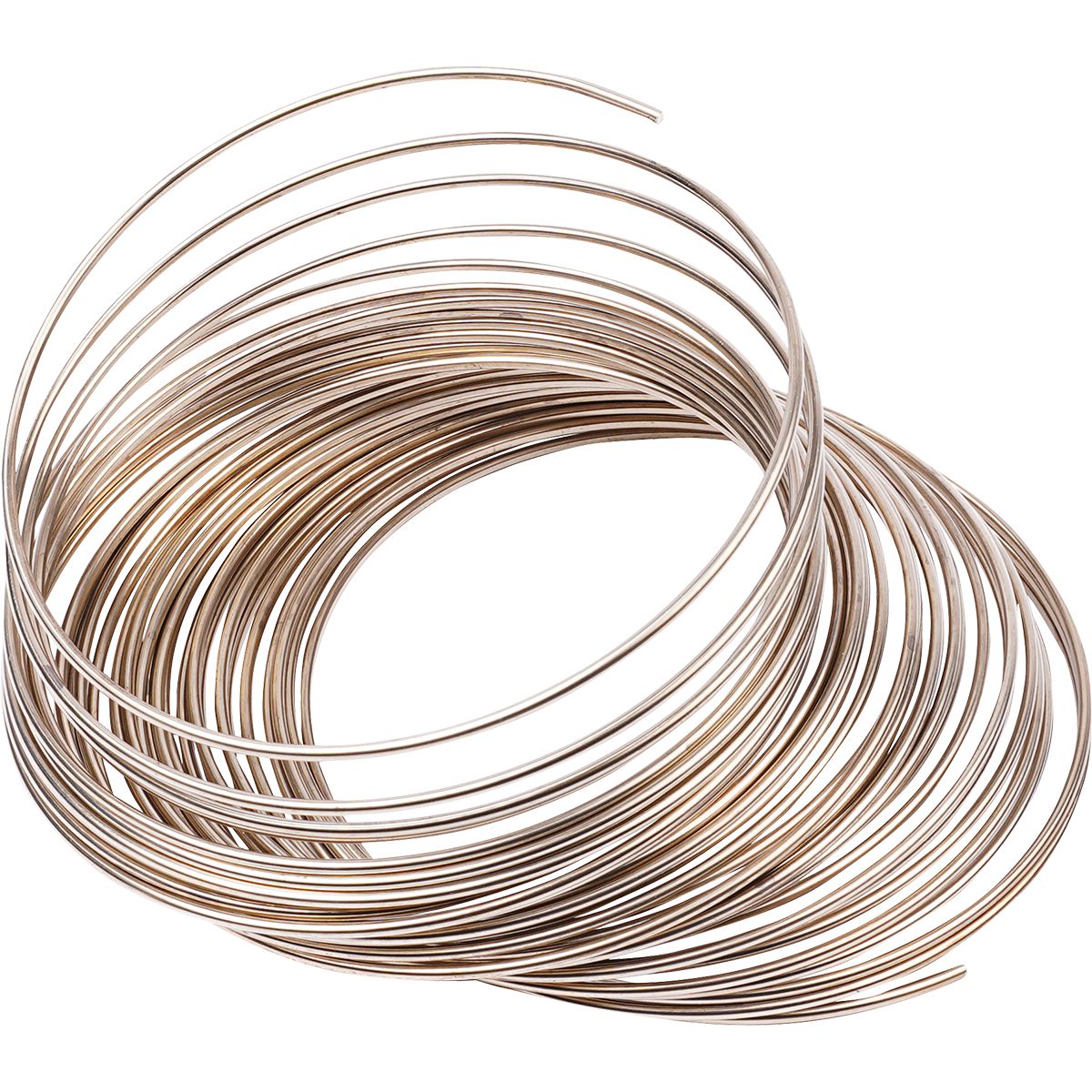

A cadmium-free bare wire silver alloy designed for silver brazing on all ferrous and non-ferrous metals (except white metals).
• Low Temperature – Easy flowing
• High-strength
• Good ductility
• Joint Strength: Up to 70,000 PSI/482 Mpa
• Elongation: 22%
• Working Temperature: 1375°F/746°C
• Electrical Conductivity: 19.4% IACS
• Feet per pound: - 1/16'': 87 ft. - 1/32'': 343 ft.
Frequently Bought Together
22 Cast Iron Bare Brazing Rod 3/16"
$0.00
Couldn't load pickup availability
30 Copper and Steel Flux Coated Brazing Rod 3/32"
$0.00
Couldn't load pickup availability
30 Copper and Steel Flux Coated Brazing Rod 1/8"
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
266 Pink Flux Coated Super Fast Flowing Silver Brasing Alloy 3/64X18
$0.00
Couldn't load pickup availability
261 Blue Flux Coated General Purpose Silver Brazing Alloy 1/16X18
$0.00
Couldn't load pickup availability
265 Bare Silver Free Flowing Copper Alloy .050X20
$0.00
Couldn't load pickup availability
Heat Stick 650F Degrees
$0.00
Couldn't load pickup availability
Heat Stick 850F Degrees
$0.00
Couldn't load pickup availability
Cap Whip-Lead Connector #4 to #1
$0.00
Couldn't load pickup availability
Product Description
A cadmium-free bare wire silver alloy designed for silver brazing on all ferrous and non-ferrous metals (except white metals).• Low Temperature – Easy flowing
• High-strength
• Good ductility
• Joint Strength: Up to 70,000 PSI/482 Mpa
• Elongation: 22%
• Working Temperature: 1375°F/746°C
• Electrical Conductivity: 19.4% IACS
• Feet per pound: - 1/16'': 87 ft. - 1/32'': 343 ft.
Technical Specifications
| Item#: | EG26370001 |
|---|---|
| Welding Process | Brazing |
| Type | Bare Brazing Rod |
| Diameter | 1/16 " |
| Length | 6 ft |
| Tensile Strength | 70,000 PSI |
| Melting Temperature | 1,375 °F |
| Color | Shiny Grey |
| Base Metal | All Metals Except White Metals |
| Recommended Flux | 361 |
| UNSPSC #: | 23271804 |
| TAA Compliant: | Yes |
| Weight: | 0.075 lb |
