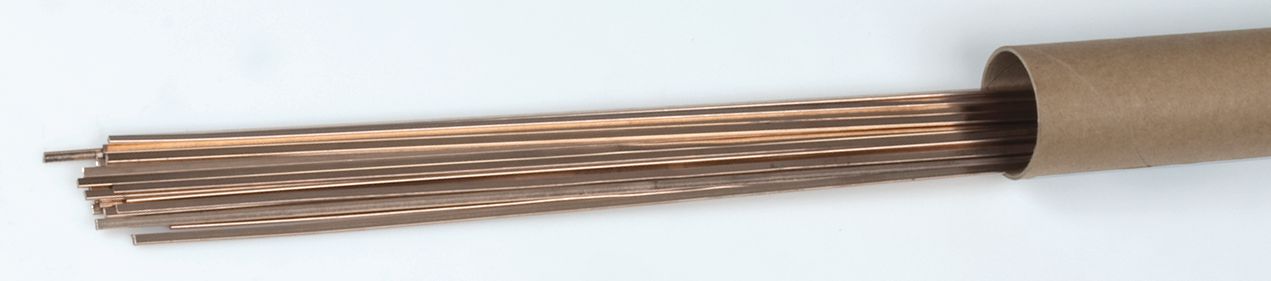

45 Silver Bare Brazing Rod, Copper/Silver, 0.05" Width, 18" Length, 1/8" Diameter
(Pack of
1)
SKU:CW1013 Item#: CW1013
These “sil-phos” alloys provide cost-effective solutions to joining copper and brass alloys.
Superior Advantages
• Thin flow provides excellent capillary action
• No flux required for copper-to-copper applications
• Fills gaps on poor fit-up joints
Resists vibration, shock, impact
Brazing Range: 1,300°F to 1,450°F (704°C to 788°C)
Recommended Flux: F40 (for dissimilar)
Typical Applications
• Electrical components
• Plumbing and HVAC
• Copper coils and tubing
• Rotors and armatures
Usage ProcedureHeat broad area using large torch tip; a neutral flame is suggested, and a distance of 2" to 3" from the base metal produces the best results. No flux is required on copper-to-copper welds. The joint area should be clean. When the copper turns dull red, the alloy should be applied and the flame should be kept in constant motion ahead of the rod. These alloys are especially effective on long lap joints, fillets and butts.
Frequently Bought Together
23 Copper and Steel Flux Coated Brazing Rod 3/32"
$0.00
Couldn't load pickup availability
261 Blue Flux Coated General Purpose Silver Brazing Alloy 1/16X18
$0.00
Couldn't load pickup availability
265 Bare Silver Free Flowing Copper Alloy .050X20
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
46 Sil-Phos Bare Brazing Rod 1/8"
$0.00
Couldn't load pickup availability
43 High Silver Flux Coated Brazing Rod 1/16"
$0.00
Couldn't load pickup availability
54 Medium Silver Flux Coated Brazing Rod 1/16"
$0.00
Couldn't load pickup availability
Heavy Duty Welding Cart
$0.00
Couldn't load pickup availability
Spool Gun 15ft 150A MIG Welding
$0.00
Couldn't load pickup availability
MIG 160i 30-160A 115/230V WeldingMachine
$0.00
Couldn't load pickup availability
Product Description
These “sil-phos” alloys provide cost-effective solutions to joining copper and brass alloys.Superior Advantages
• Thin flow provides excellent capillary action
• No flux required for copper-to-copper applications
• Fills gaps on poor fit-up joints
Resists vibration, shock, impact
Brazing Range: 1,300°F to 1,450°F (704°C to 788°C)
Recommended Flux: F40 (for dissimilar)
Typical Applications
• Electrical components
• Plumbing and HVAC
• Copper coils and tubing
• Rotors and armatures
Usage ProcedureHeat broad area using large torch tip; a neutral flame is suggested, and a distance of 2" to 3" from the base metal produces the best results. No flux is required on copper-to-copper welds. The joint area should be clean. When the copper turns dull red, the alloy should be applied and the flame should be kept in constant motion ahead of the rod. These alloys are especially effective on long lap joints, fillets and butts.
Technical Specifications
| Item#: | CW1013 |
|---|---|
| Welding Process | Brazing |
| Type | Bare |
| Diameter | 1/8 " |
| Length | 18 " |
| Width | .050 " |
| Melting Temperature | 1300-1450 °F |
| Color | Copper/Silver |
| Base Metal | Silver |
| Silver Content | Low |
| Recommended Flux | F40 |
| Description | Low Silver |
| UNSPSC #: | 23271804 |
| TAA Compliant: | Yes |
| Weight: | 1.38 lb |
