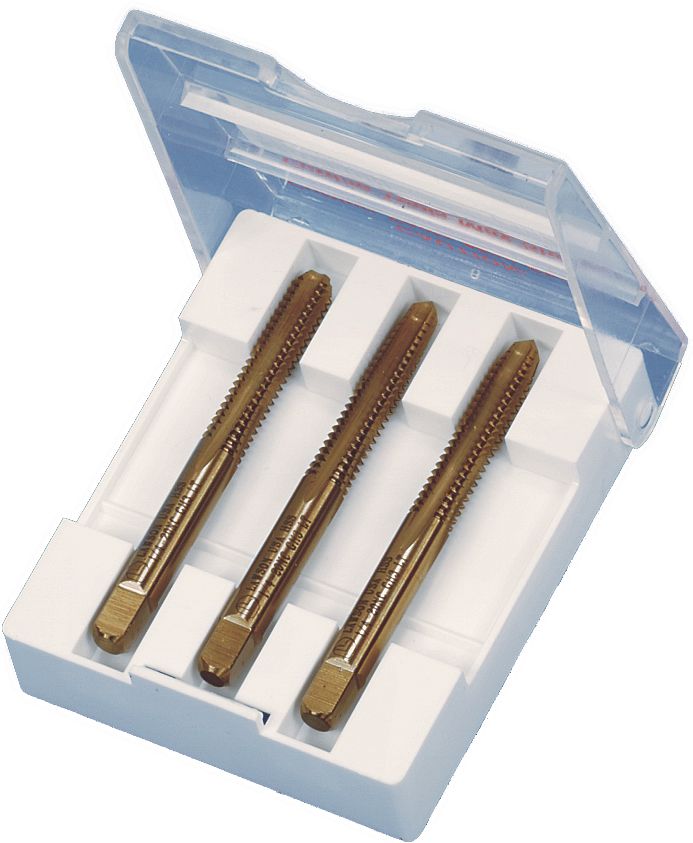

Hand Tap Kit, High Speed Steel, Gold Oxide Finish, 3 Flute, Taper, Plug and Bottoming Style Taps, 5-40, 5/8" Thread Length
(Pack of
1)
Perfect for threading smaller holes, the Gold Hand Tap 10-32 combines control with toughness. Its gold oxide coating enhances performance by improving chip flow and minimizing torque, while the 4-flute design ensures clean, reliable threads. Ideal for everyday tapping tasks in a range of materials, whether you're in the shop or on the job.
Lawson Tap Sets include Taper, Plug and Bottoming Style Taps; replacement taps are available in each style.
Taper Style
8 to 10 threads chamfered. For easy thread starting in tough materials.
Plug Style
3 to 5 threads chamfered. For general use when tapping to bottom of hole is not critical.
Bottoming Style
1-1/2 threads chamfered. Use after threads have been started for tapping to bottom of hole.
• 4-flute taper design
• Precision-ground threading for accuracy in tight spaces
• Gold oxide finish boosts chip removal and reduces seizing
• Built from high-speed steel for durability and wear resistance
• Clearly marked with size for quick selection
• For use in general tapping of ferrous and non-ferrous materials
• Performs in both controlled and off-hand applications
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Zirconium Grain Locking Grinding Disc 2"
Couldn't load pickup availability
Reinforced Mini Cut-Off Wheel 3"
Couldn't load pickup availability
Abrasive Bristle Wire Belt Steel 23mm
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap M16 x 1.5
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap M14 x 2
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap M4 x 0.7
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap 5/16-18
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap M16 x 1.5
Couldn't load pickup availability
Cryo-Drap 7/16"-14 Drill & Tap Combo, 135o Split Point, W/Flats
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 1/4"
Couldn't load pickup availability
Twist-On Abrasive Disc 2"
Couldn't load pickup availability
Interchangeable Hex Bit Set 24Pc SAE
Couldn't load pickup availability
Product Description
Perfect for threading smaller holes, the Gold Hand Tap 10-32 combines control with toughness. Its gold oxide coating enhances performance by improving chip flow and minimizing torque, while the 4-flute design ensures clean, reliable threads. Ideal for everyday tapping tasks in a range of materials, whether you're in the shop or on the job.Lawson Tap Sets include Taper, Plug and Bottoming Style Taps; replacement taps are available in each style.
Taper Style
8 to 10 threads chamfered. For easy thread starting in tough materials.
Plug Style
3 to 5 threads chamfered. For general use when tapping to bottom of hole is not critical.
Bottoming Style
1-1/2 threads chamfered. Use after threads have been started for tapping to bottom of hole.
• 4-flute taper design
• Precision-ground threading for accuracy in tight spaces
• Gold oxide finish boosts chip removal and reduces seizing
• Built from high-speed steel for durability and wear resistance
• Clearly marked with size for quick selection
• For use in general tapping of ferrous and non-ferrous materials
• Performs in both controlled and off-hand applications
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 61095 |
|---|---|
| Type | Machine Screw |
| Style | Set |
| Material | High Speed Steel |
| Diameter | #5 |
| Pitch | 40 |
| Flutes | 3 |
| Thread Length | 5/8 " |
| H Limits | GH2 |
| Number of Pieces | 3 |
| Recommended Drill Size | No. 39 |
| Description | One each of Taper, Plug and Bottoming Style Taps |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
