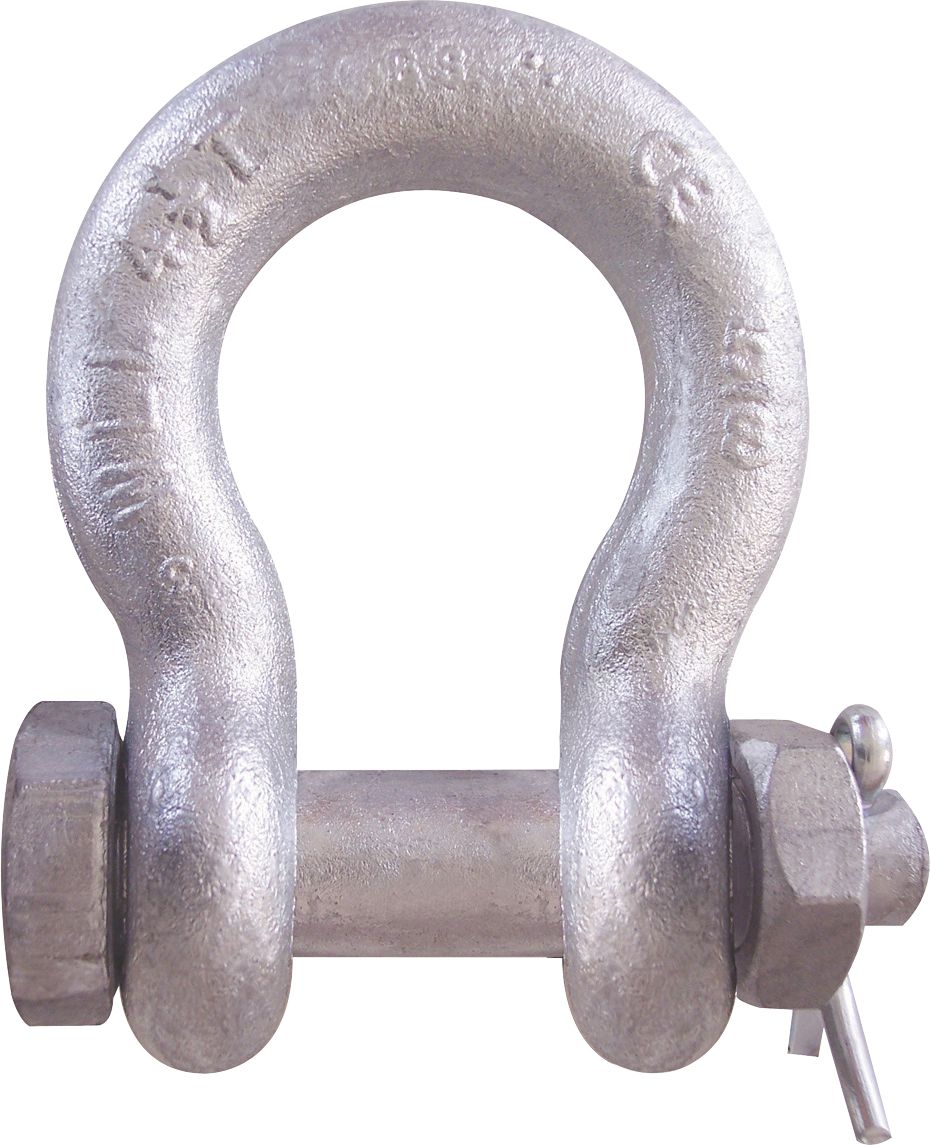

Anchor Shackle, Bolt, Nut and Cotter, 3/8", 3,000 lb WLL, Carbon Steel, Galvanized
(Pack of
2)
SKU:1429916 Item#: 1429916
Bolt, nut, and cotter pin shackles provide the most secure pin (bolt) arrangement of all styles. Will resist axial loading and torsional loading.
• Carbon steel bodies
• Alloy steel pins
• Working Load Limit and traceability codes shown as permanent marking on body and pin
• All shackles meet or exceed Federal Specification RRC-271F, Type IVA, Grade A, Class 3
• Design factor 6:1
• Used in applications where shackle is semi-permanent with infrequent removal
CAUTION: Do not exceed working load limits.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Turned Eyebolt, Lag Thread, Zinc-Plated, 5/16" x 2-3/4"
$0.00
Couldn't load pickup availability
Shoulder Eyebolt, Machinery, Stainless Steel, 3/4" x 2"
$0.00
Couldn't load pickup availability
Turned Eyebolt, Zinc-Plated, 1/4" x 5"
$0.00
Couldn't load pickup availability
16ft Fiberglass Twin Ladder T7416
$0.00
Couldn't load pickup availability
10ft Fiberglass Leanig Lader L7310
$0.00
Couldn't load pickup availability
22ft Multi-Position ProLader FMT-22
$0.00
Couldn't load pickup availability
Bolt, Nut and Cotter Anchor Shackle, 7/8", 13,000 lb WLL
$0.00
Couldn't load pickup availability
Screw Pin Anchor Shackle, 1/2", 6,000 lb WLL
$0.00
Couldn't load pickup availability
Bolt, Nut and Cotter Anchor Shackle, 5/8", 9,000 lb WLL
$0.00
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
$0.00
Couldn't load pickup availability
Product Description
Bolt, nut, and cotter pin shackles provide the most secure pin (bolt) arrangement of all styles. Will resist axial loading and torsional loading.• Carbon steel bodies
• Alloy steel pins
• Working Load Limit and traceability codes shown as permanent marking on body and pin
• All shackles meet or exceed Federal Specification RRC-271F, Type IVA, Grade A, Class 3
• Design factor 6:1
• Used in applications where shackle is semi-permanent with infrequent removal
CAUTION: Do not exceed working load limits.
Technical Specifications
| Item#: | 1429916 |
|---|---|
| Manufacturer Model #: | M848G |
| Type | Anchor Shackle |
| Style | Bolt, Nut and Cotter |
| Body Material | Carbon Steel |
| Finish | Galvanized |
| Size | 3/8 " |
| Working Load Limit | 3,000 lb |
| Pin Diameter | 7/16 " |
| Pin Material | Alloy Steel |
| Width Between Eyes | 21/32 " |
| Bow Width | 15/16 " |
| Depth | 1-7/16 " |
| UNSPSC #: | 24101641 |
| TAA Compliant: | Yes |
| Weight: | 0.77 lb |
