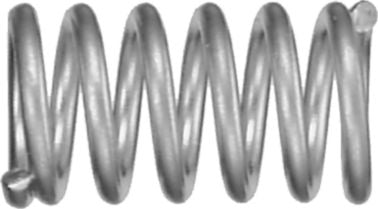

Compression Spring, Steel, 13 Wire Gauge, 1/2" ID, 11/16" OD, 1-1/4" Length, 6-1/2 Coils, 50lbs Maximum Work Load
(Pack of 5)

SKU:89590 Item#: 89590

Kent Automotive

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Frequently Bought Together

Compression Spring 1/4 x 2-1/4"

Compression Spring 9/32 x 2"

Compression Spring 5/16 x 2"

High-Strength Double Side Molding Tape 1/4" x 50'

Wypall L30 Wiper 16.4 x 9.8"

Glossy Back Paper Floor Mat, 17" x 22"

Seam Sealing Tape 8mm x 26'

Premium Nitrile Gloves, Black, 6 Mil, X-Large, 100/Box

Seam Sealing Tape 10mm x 26'

Bumper Radiator and Grille Drive Rivet 7mm Hole

Push-Type Retainer Nylon 16 x 19mm

Bumper Fascia General Purpose Split Rivet 3/16"

Wypall L30 Wiper 16.4 x 9.8"

Glossy Back Paper Floor Mat, 17" x 22"

Wyper Super Prep Towel 9 x 14"

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89590
Type	Compression Spring
O.D.	11/16 "
Length	1-1/4 "
I.D.	1/2 "
Wire Diameter	0.092 "
Wire Gauge	13
Number of Coils	6-1/2
Rate	104 lb./in.
Maximum Work Load	50 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.15 lb
