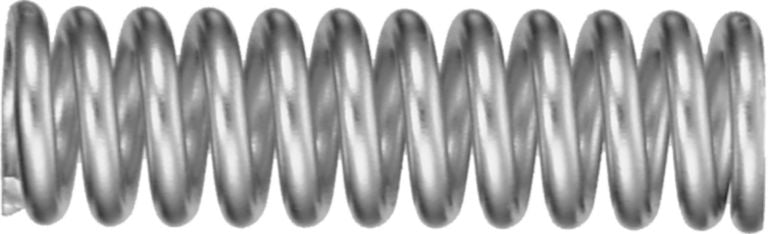

Compression Spring 15/32 x 2-1/2"
(Pack of
2.0)
The most common spring type
Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together

High-Strength Double Side Molding Tape 1" x 50'
Couldn't load pickup availability

Butyl Windshield Tape 3/8" x 15'
Couldn't load pickup availability

Mechanic's Wire Steel 18ga
Couldn't load pickup availability

Prem Blk Ntrl Glvs, XLG, CS
Couldn't load pickup availability

Adhesive-Back Shim Stock 5/32 x 1/4" x 30'
Couldn't load pickup availability

High-Strength Double Side Molding Tape 1/4" X 50'
Couldn't load pickup availability

Nylon Cable Tie 7-1/2" Black
Couldn't load pickup availability

Molding Clip with Sealer Nylon White 10 x 12mm
Couldn't load pickup availability

Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability

Acid Brush 1/2 x 5-3/4"
Couldn't load pickup availability

Service Dispatch Number 3000 to 3999
Couldn't load pickup availability

Valve Action® Permanent Paint Marker Yellow
Couldn't load pickup availability

Compression Spring 1/4 x 1-1/2"
Couldn't load pickup availability

Compression Spring 15/16 x 3"
Couldn't load pickup availability

Compression Spring 1/2 x 1-5/8"
Couldn't load pickup availability
Product Description
The most common spring type Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Technical Specifications
Item#: | 89605 |
---|---|
Type | Compression Spring |
O.D. | 3/4 " |
Length | 2-1/2 " |
I.D. | 15/32 " |
Wire Diameter | 0.135 " |
Wire Gauge | 10 |
Number of Coils | 12 |
Rate | 200 lb./in. |
Maximum Work Load | 140 lb |
Material | Steel |
UNSPSC #: | 31161904 |
TAA Compliant: | Yes |
Weight: | 0.22 lb |
